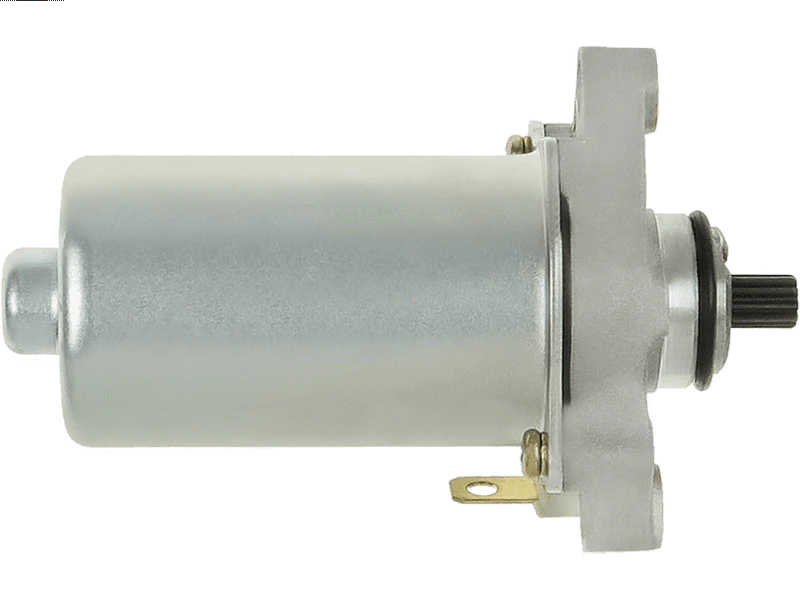

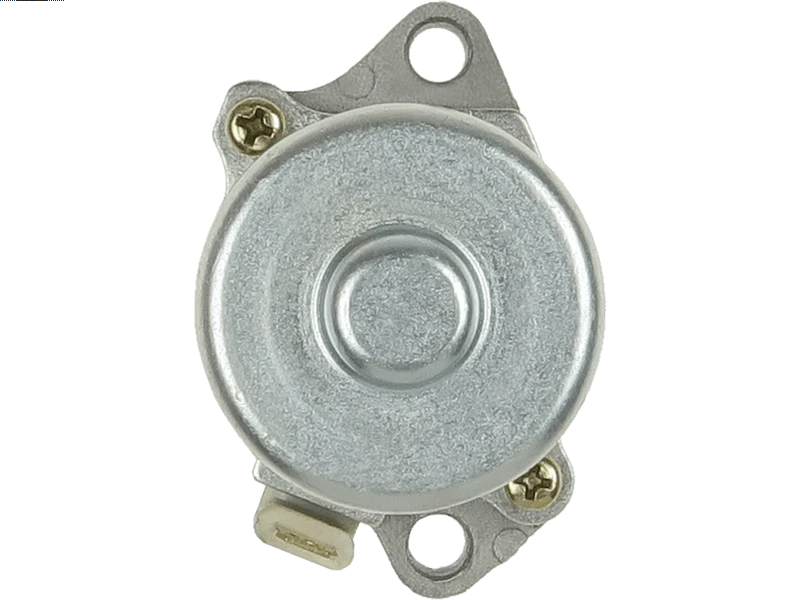

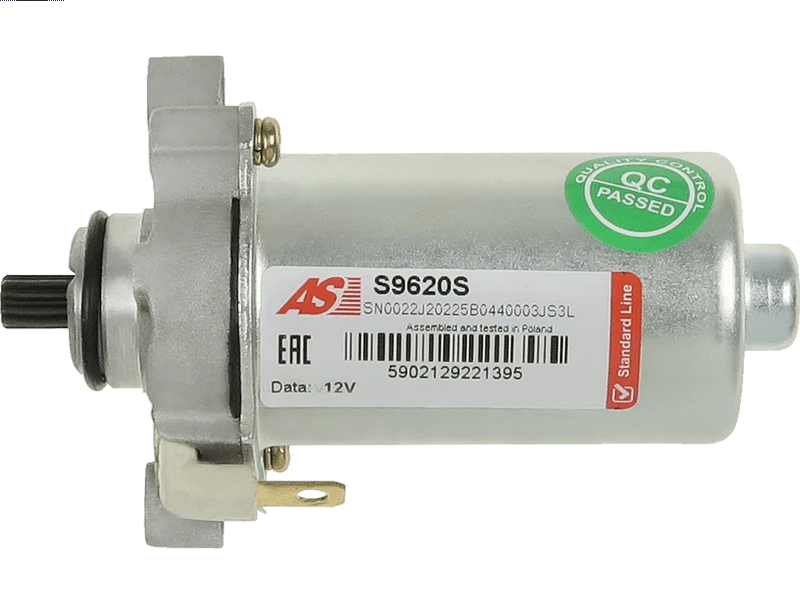

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 60.49 including GST
NZ$ 52.60 excluding GST
or four payments of $15.12
with
Learn More
UOM:
each
Product Code:
S9620S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.40 kW |
| Length (L.1) | 109 mm |
| Mount Hole Center - Center (O.1) | 57 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| APRILIA | RS RS 50 Replica (PL) | 01.2006-12.2010 | |
| APRILIA | SPORTCITY Sportcity One 4T | 06.2008-12.2010 | |
| APRILIA | SR SR 50 Motard (C50) | 09.2010- | |
| APRILIA | SR SR 50 R Alitalia Replica (VF) | 06.2010-12.2013 | |
| APRILIA | SR SR 50 R Factory Alitalia Replica (VF) | 06.2010-12.2013 | |
| APRILIA | SR SR 50 R Factory (VF) | 01.2005-12.2013 | |
| APRILIA | SR SR 50 R (VF) | 01.2005- | |
| GILERA | RUNNER Runner 50 Purejet (C36) | 01.2006-12.2013 | |
| GILERA | RUNNER Runner 50 SP Purejet (C36) | 01.2002-12.2005 | |
| HONDA | CH80 Elite | [80cc] | 01.1993-12.2007 |
| HONDA | CH80 Elite | 01.1993-12.2007 | |
| PIAGGIO | FLY Fly 50 (C44) | 09.2004-12.2013 | |
| PIAGGIO | LIBERTY Liberty 50 4T | 01.2004- | |
| PIAGGIO | LIBERTY Liberty 50 (C15) | 01.1997-12.2003 | |
| PIAGGIO | NRG NRG 50 DT Sport Series | 01.2009-12.2013 | |
| PIAGGIO | NRG NRG 50 Purejet (C32) | 09.2004- | |
| PIAGGIO | NRG NRG MC3 Purejet (C21) | 01.2001-12.2005 | |
| PIAGGIO | X9 X9 500 | 03.2000-12.2009 | |
| PIAGGIO | X9 X9 500 Evolution (M27) | 03.2004-12.2005 | |
| PIAGGIO | ZIP Zip 50 Base (SSL) | 01.1992-12.1999 | |
| PIAGGIO | ZIP Zip II 125 4T | 01.2000-12.2003 | |
| PIAGGIO | ZIP Zip II 50 4T CatCon. DT (C25) | 01.1999- | |
| VESPA | ET ET4 50 (ZAPC26) | 01.2000-12.2006 | |
| VESPA | LX LX 50 4T 4V (ZAPM387) | 03.2008- | |
| VESPA | LX LX 50 4T Touring (ZAPM383) | 02.2010-09.2012 | |
| VESPA | LX LX 50 4T (ZAPM383) | 03.2005-09.2007 | |
| VESPA | PRIMAVERA 50 Primavera 4T (C53) | 11.2013- | |
| VESPA | SPRINT Sprint 50 4T | 01.2014- | |
| VESPA | S S 50 2T College | 02.2010-12.2013 | |
| VESPA | S S 50 4T 4V College | 02.2010-12.2013 |
Reference Information
| 10033113AV | ITAB AUTOMOTIVE |
| 18853 | LESTER |
| 18853N | WAI |
| 20467311BN | REAL |
| 255735 | KUHNER |
| 31200-GE1-712 | HONDA |
| 410-54103 | J&N |
| 44800500 | MALAGUTI |
| 6033113.0 | SANDO |
| 71-26-18853 | WILSON |
| 96921R | APRILIA |
| AP8570105 | PIAGGIO |
| CST33113AS | CASCO |
| MAV351130A | SIOM |
| RS41253 | DELCO |
| SMT113A | AUTOTEAM |
| SMU0374 | ARROWHEAD |
| UD19003S | AS-PL |
