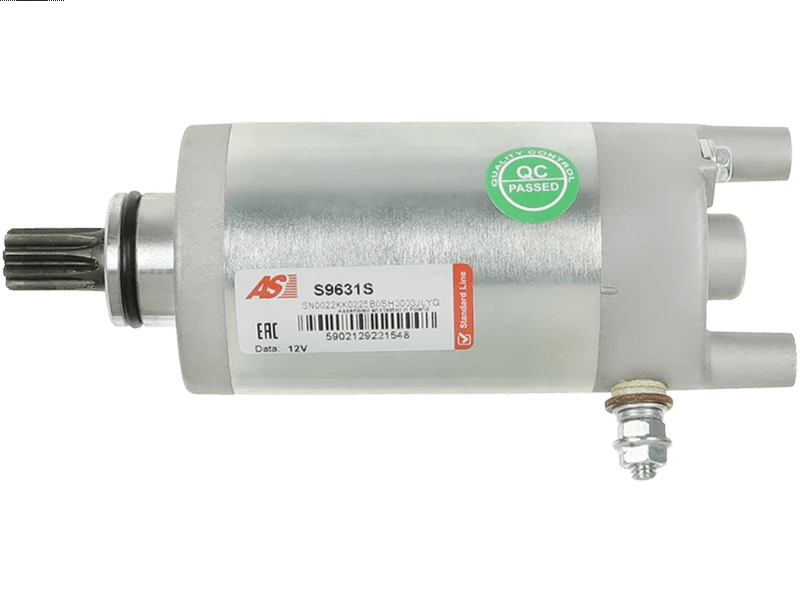

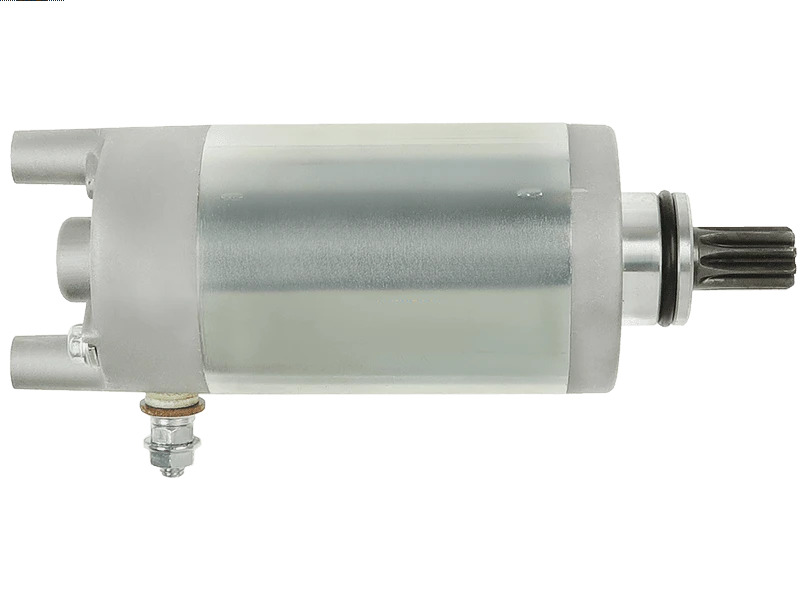

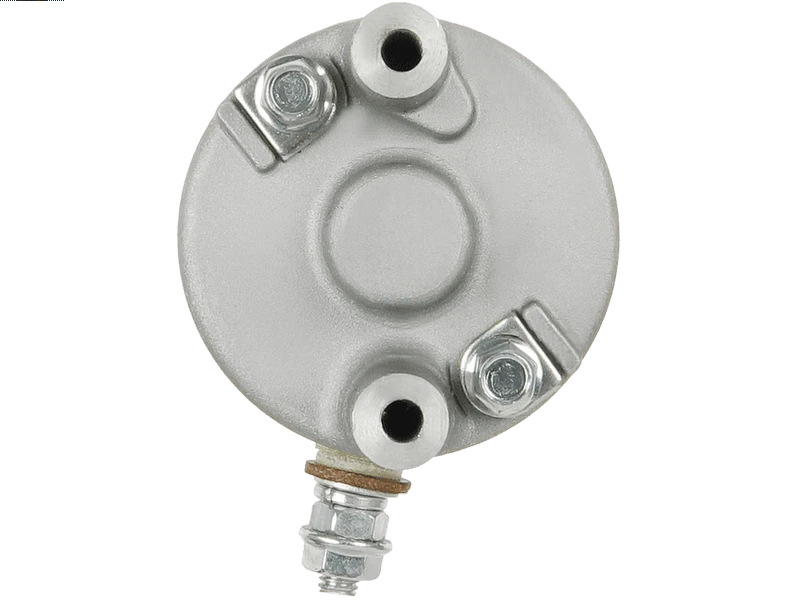

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 97.76 including GST
NZ$ 85.01 excluding GST
or four payments of $24.44
with
Learn More
UOM:
each
Product Code:
S9631S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 176 mm |
| Mount Hole Center - Center (O.1) | 46 mm |
| Mount Hole Diameter (C.1) | M6x1.0 mm |
| Mount Hole Diameter (C.2) | M6x1.0 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMS | Various Models | [250cc] | 01.1986-12.1988 |
| YAMAHA | YFM225 Moto | 01.1999-12.1999 | |
| YAMAHA | YFM250 Bear Tracker | [230cc] | 01.1989-12.1991 |
| YAMAHA | YFM250BT Bruin | [230cc] | 01.2006-12.2008 |
| YAMAHA | YFM250 Moto | [246cc] | 01.2005-12.2006 |
| YAMAHA | YFM25B Big Bear | [230cc] |
Reference Information
| 10441278 | ALANKO |
| 108209 | FARCOM |
| 113547 | CARGO |
| 18753 | LESTER |
| 18753N | WAI / TRANSPO |
| 242-06118 | DIXIE |
| 254949 | KUHNER |
| 3GH-81800-01-00 | YAMAHA |
| 3JN-81800-01-00 | YAMAHA |
| 400.422.092.190 | PSH |
| 59V-81800-00-00 | YAMAHA |
| 59V-81800-51-00 | YAMAHA |
| 59V-81800-61-00 | YAMAHA |
| 59V-81890-00-00 | YAMAHA |
| 5XG-H1800-00-00 | YAMAHA |
| 71-26-18753 | WILSON |
| F032113547 | CARGO |
| MS-833 | DIXIE |
| RS41199 | DELCO |
| S143.568 | PSH |
| SMU0064 | ARROWHEAD |
| STR75432 | WOODAUTO |
| STZ3547 | KRAUF |
| UD19050S | AS-PL |
| WOOSTR75432 | WOODAUTO |
Video/Publications
