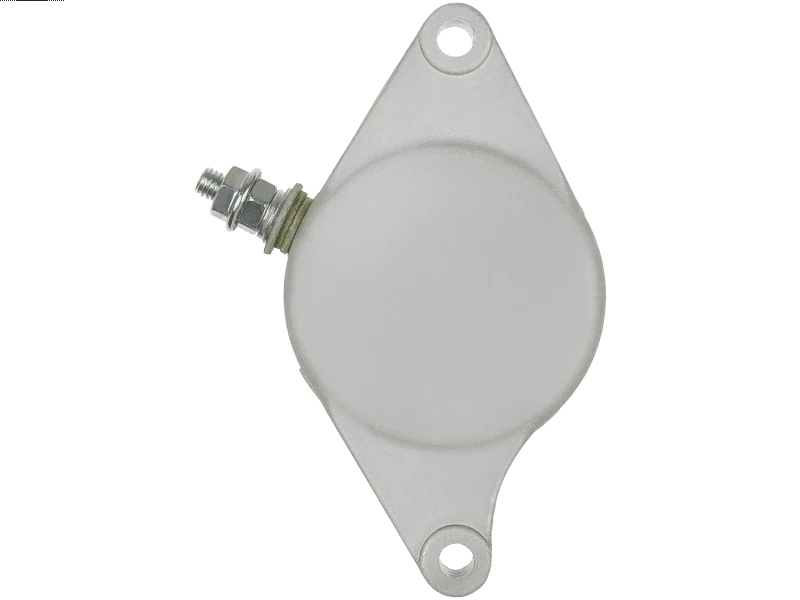

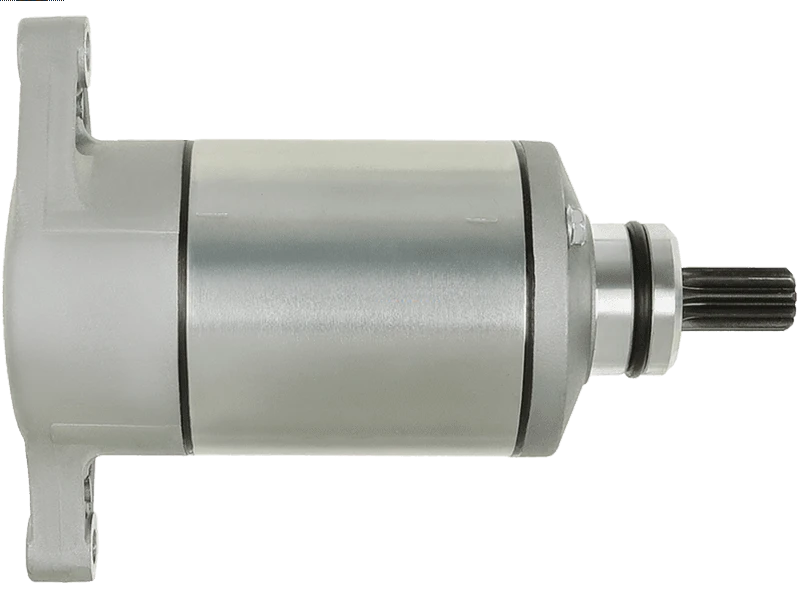

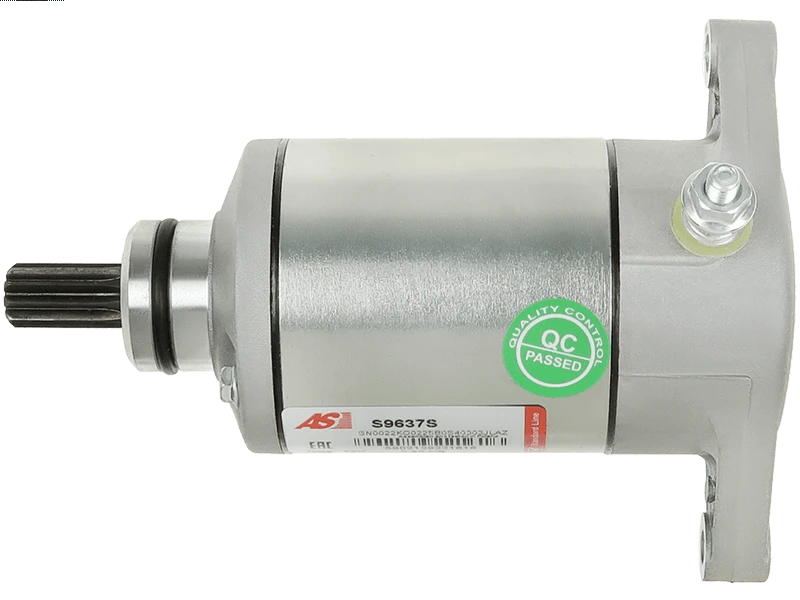

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 125.20 including GST
NZ$ 108.87 excluding GST
or four payments of $31.30
with
Learn More
each
S9637S
2
Associated Numbers
Arrowhead SMU0060 Arctic Cat 3545003 3545017 Lester 18807 18838 Mitsuba SM13216 SM14231 PIC Picture ID 191518 Suzuki 3110019B00 3110019B11 3110019B12 3110019B20 Wilson 712618807 smx081 709223

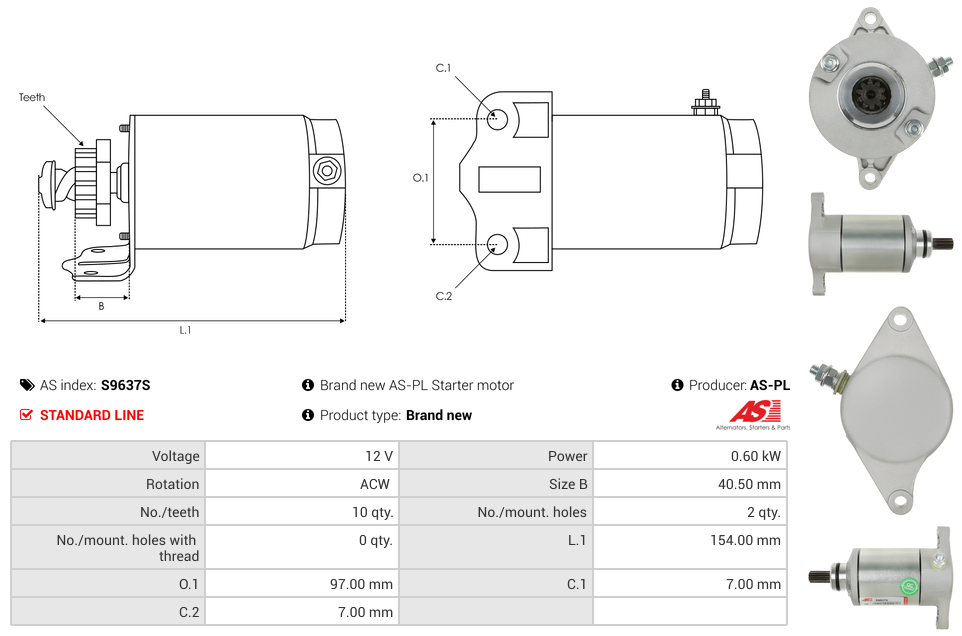

Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 154 mm |
| Mount Hole Center - Center (O.1) | 97 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ARCTIC CAT | 250 2x4 | [249cc] | 01.1999-12.2005 |
| ARCTIC CAT | 250 4x4 | [249cc] | 01.2001-12.2005 |
| ARCTIC CAT | 300 2x4 | [280cc] | 01.1998-12.2003 |
| ARCTIC CAT | 300 4x4 | [280cc] | 01.1998-12.2005 |
| MASSEY FERGUSON | 250 2x4 | [249cc] | 01.2001-12.2005 |
| MASSEY FERGUSON | 250 4x4 | [249cc] | 01.2001-12.2005 |
| MASSEY FERGUSON | 300 2x4 | [280cc] | 01.2000-12.2003 |
| MASSEY FERGUSON | 300 4x4 | [280cc] | 01.2000-12.2005 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1987-12.1987 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1988-12.1989 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1990-12.1991 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1992-12.1995 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1996-12.1996 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1997-12.1997 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1998-12.1998 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1988-12.1989 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1990-12.1991 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1992-12.1997 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1998-12.1999 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.2000-12.2000 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.2001-12.2002 |
| SUZUKI | LT-F300F King Quad | [300cc] | 01.1999-12.1999 |
| SUZUKI | LT-F300F King Quad | [300cc] | 01.2000-12.2000 |
| SUZUKI | LT-F300F King Quad | [300cc] | 01.2001-12.2002 |
| SUZUKI | LT-F4WDX | [250cc] | 01.1991-12.1991 |
| SUZUKI | LT-F4WDX King Quad | [250cc] | 01.1992-12.1995 |
| SUZUKI | LT-F4WDX King Quad | [250cc] | 01.1996-12.1997 |
| SUZUKI | LT-F4WDX King Quad | [250cc] | 01.1998-12.1998 |
Reference Information
| 10439163 | ALANKO |
| 106-10423 | ROBERT'S |
| 108470 | FARCOM |
| 18807 | LESTER |
| 18807N | WAI / TRANSPO |
| 18838 | LESTER |
| 2-2766-MT | WAI / TRANSPO |
| 242-06130 | DIXIE |
| 31100-19B00 | SUZUKI |
| 31100-19B11 | SUZUKI |
| 31100-19B12 | SUZUKI |
| 31100-19B20 | SUZUKI |
| 3545003 | ARCTIC CAT |
| 400.904.102.190 | PSH |
| 410-54034 | J&N |
| 71-26-18807 | WILSON |
| RS41195 | DELCO |
| SM14231 | MITSUBA |
| SMU0060 | ARROWHEAD |
| SMU0296 | ARROWHEAD |
| STU1500 | KRAUF |
| UD19054S | AS-PL |
