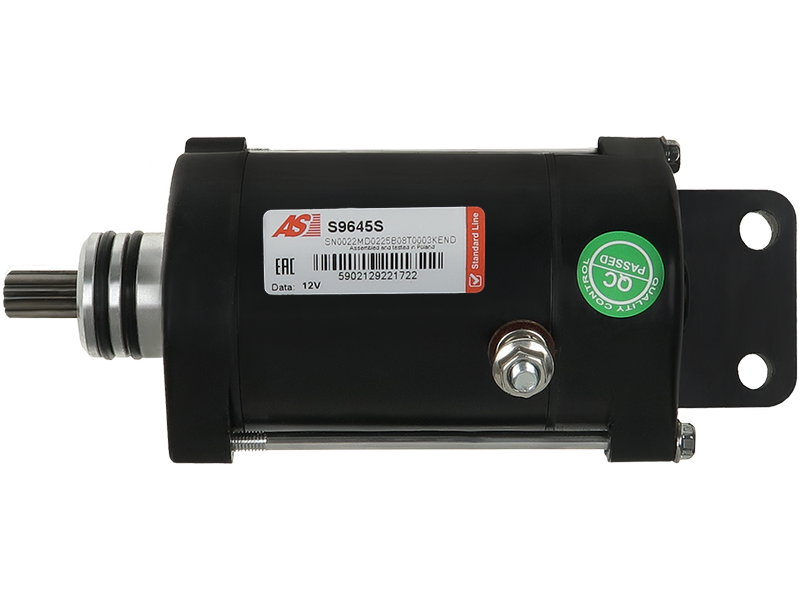

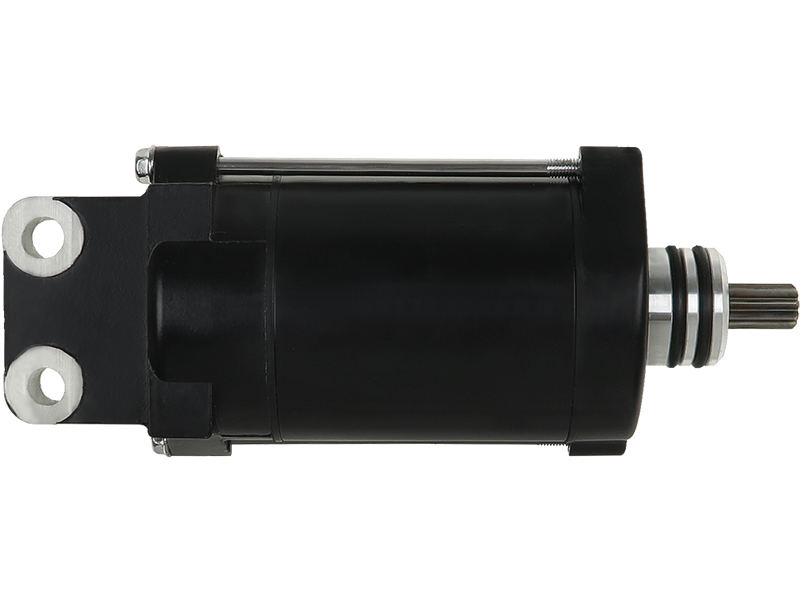

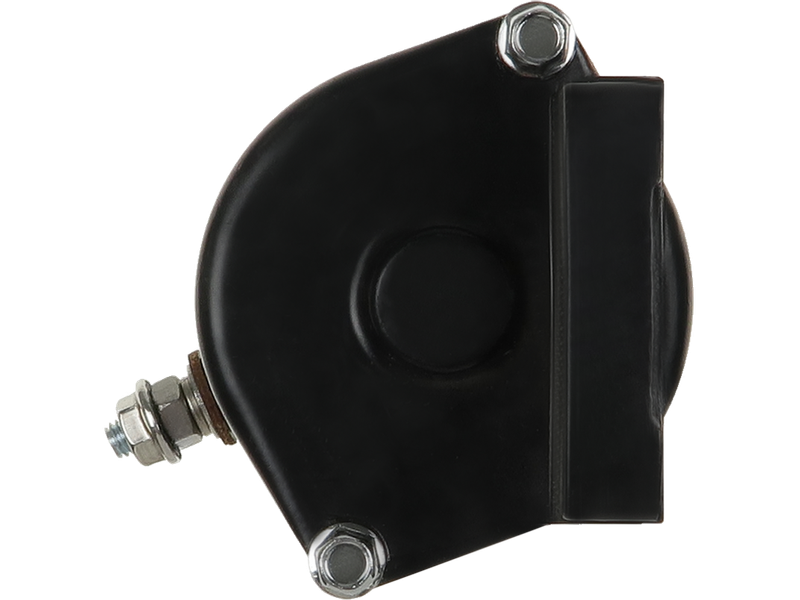

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 155.47 including GST
NZ$ 135.19 excluding GST
or four payments of $38.87
with
Learn More
each
S9645S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 195 mm |
| Mount Hole Center - Center (O.1) | 36 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ARCTIC CAT | Barracuda | [639cc] | 01.1994-12.1995 |
| ARCTIC CAT | Daytona | [639cc] | 01.1993-12.1995 |
| ARCTIC CAT | Daytona 1000 | [999cc] | 01.1997-12.1997 |
| ARCTIC CAT | Daytona 770 | [768cc] | 01.1996-12.1997 |
| ARCTIC CAT | Monte Carlo 1000 | [999cc] | 01.1997-12.1997 |
| ARCTIC CAT | Monte Carlo 640 | [639cc] | 01.1994-12.1997 |
| ARCTIC CAT | Monte Carlo 770 | [768cc] | 01.1996-12.1997 |
| ARCTIC CAT | Monte Carlo 900 | [900cc] | 01.1996-12.1996 |
| ARCTIC CAT | Montego 640 | [639cc] | 01.1994-12.1997 |
| ARCTIC CAT | Montego Deluxe 640 | [639cc] | 01.1994-12.1997 |
| ARCTIC CAT | Tigershark 640 | [639cc] | 01.1993-12.1993 |
| ARCTIC CAT | Tigershark 900 | [900cc] | 01.1995-12.1995 |
| ARCTIC CAT | TS1000L | [999cc] | 01.1998-12.1998 |
| ARCTIC CAT | TS1000R | [999cc] | 01.1998-12.1998 |
| ARCTIC CAT | TS1100Li | [1100cc] | 01.1999-12.1999 |
| ARCTIC CAT | TS1100R | [1100cc] | 01.1999-12.1999 |
| ARCTIC CAT | TS640 | [639cc] | 01.1998-12.1999 |
| ARCTIC CAT | TS770 | [768cc] | 01.1998-12.1999 |
| ARCTIC CAT | TS770L | [768cc] | 01.1998-12.1999 |
| ARCTIC CAT | TS770R | [768cc] | 01.1998-12.1999 |
| ARCTIC CAT | TS900L | [900cc] | 01.1999-12.1999 |
Reference Information
| 10439293 | ALANKO |
| 112009 | CARGO |
| 18435 | LESTER |
| 18435N | LESTER |
| 22152 | LUCAS |
| 242-06117 | DIXIE |
| 3008-093 | ARCTCO |
| 3008-327 | ARCTCO |
| 3008-462 | ARCTCO |
| 3008-536 | ARCTCO |
| 400.066.092.200 | PSH |
| 410-44030 | J&N |
| 410-54011 | J&N |
| 439293 | ALANKO |
| 71-25-18435 | WILSON |
| F032112009 | CARGO |
| MS-820 | DIXIE |
| S132.092 | PSH |
| SHI0035 | ARROWHEAD |
| STH1902 | KRAUF |
| STR3083 | ELECTROLOG |
| STR75415 | WOODAUTO |
| TS2-0001N | JUST PARTS |
| UD19115S | AS-PL |
| WOOSTR75415 | WOODAUTO |
