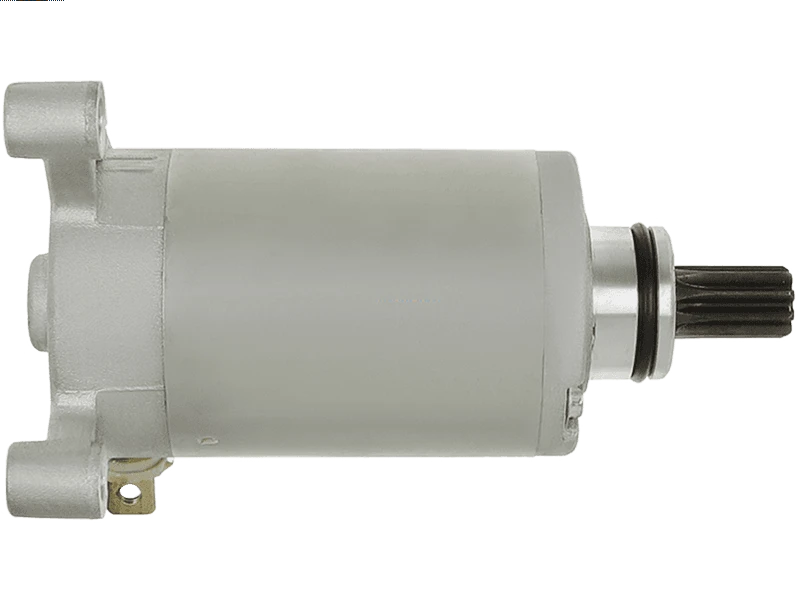

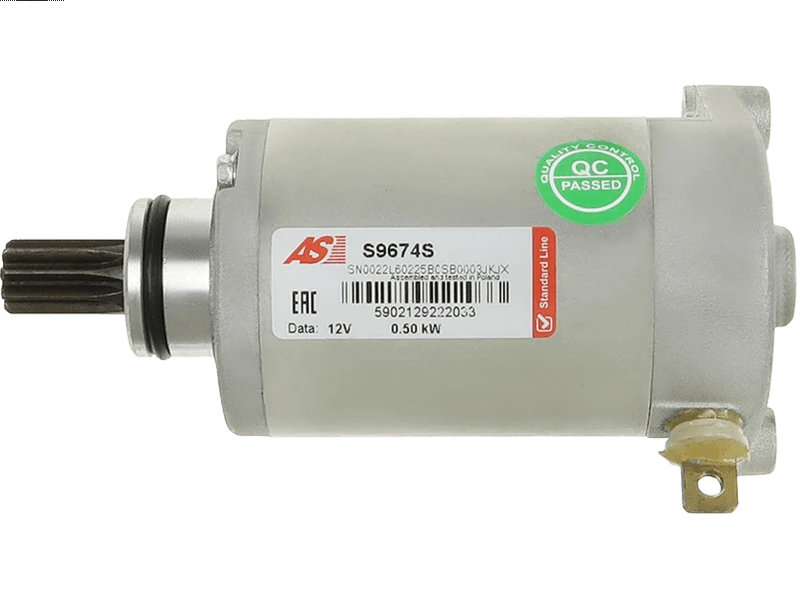

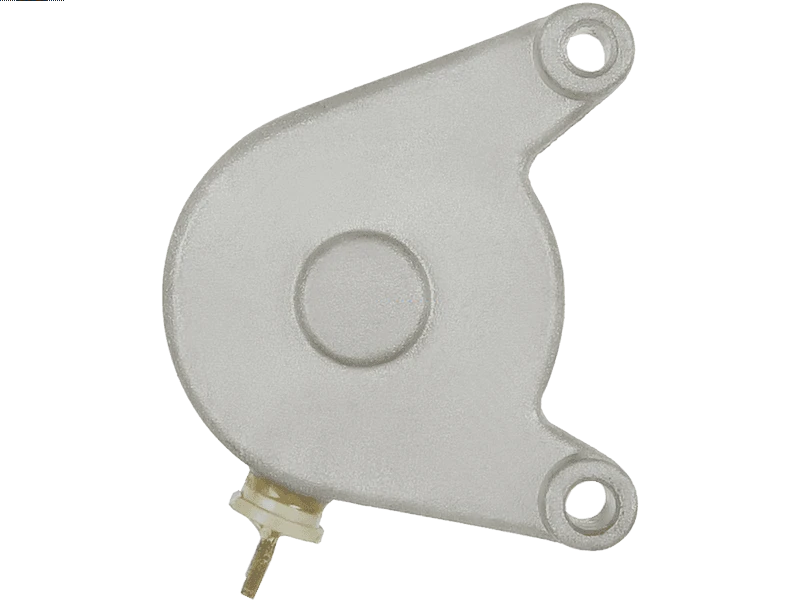

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 142.92 including GST
NZ$ 124.28 excluding GST
or four payments of $35.73
with
Learn More
each
S9674S
2
Specifications
| Kilowatt | 0.50 kW |
| Length (L.1) | 147 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | DR 125 SE | 01.1994-12.1996 | |
| SUZUKI | GN 125 | 01.1982- | |
| SUZUKI | VL Intruder 125 | ||
| SUZUKI | VL Intruder 250 |
Reference Information
| 028000-8710 | DENSO |
| 028000-8712 | DENSO |
| 10439175 | ALANKO |
| 107085 | FARCOM |
| 19625 | LESTER |
| 19625N | WAI / TRANSPO |
| 256607 | KUHNER |
| 31100-05300 | SUZUKI |
| 31100-05320 | SUZUKI |
| 31100-05500 | SUZUKI |
| 31100-05501 | SUZUKI |
| 31100-05510 | SUZUKI |
| 71-38-19625 | WILSON |
| SCH0037 | ARROWHEAD |
| SDN580A | AUTOTEAM |
| UD19072S | AS-PL |
Video/Publications
