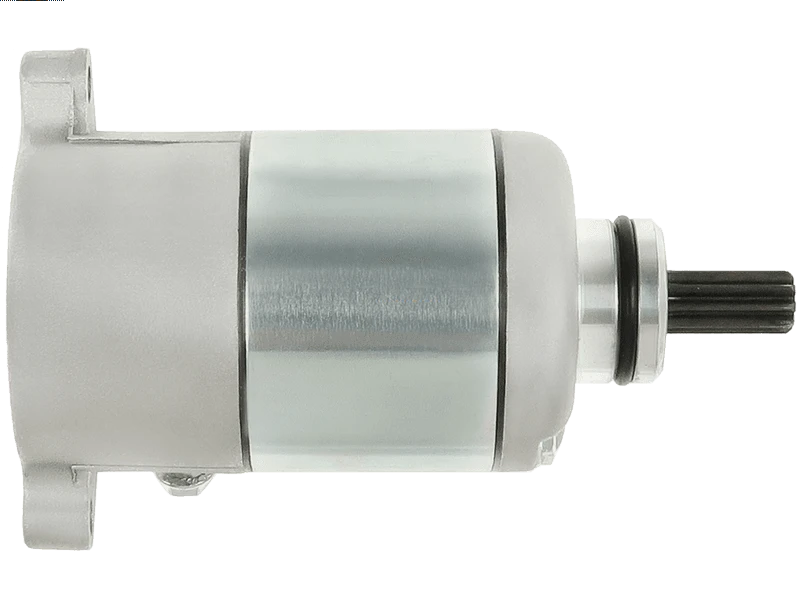

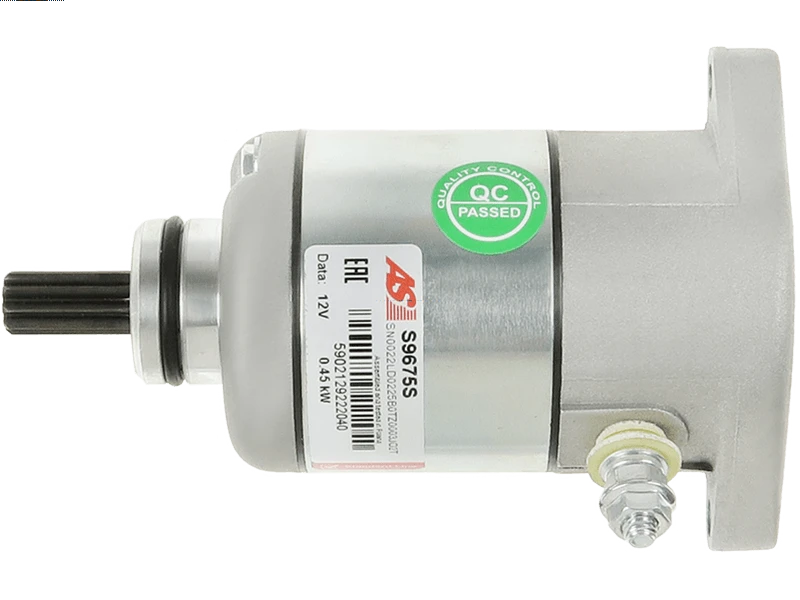

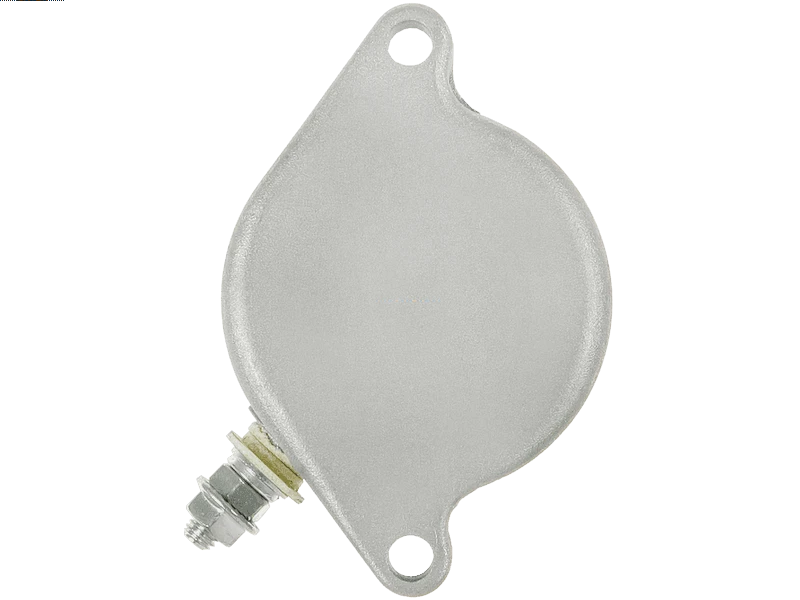

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 153.08 including GST
NZ$ 133.11 excluding GST
or four payments of $38.27
with
Learn More
each
S9675S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

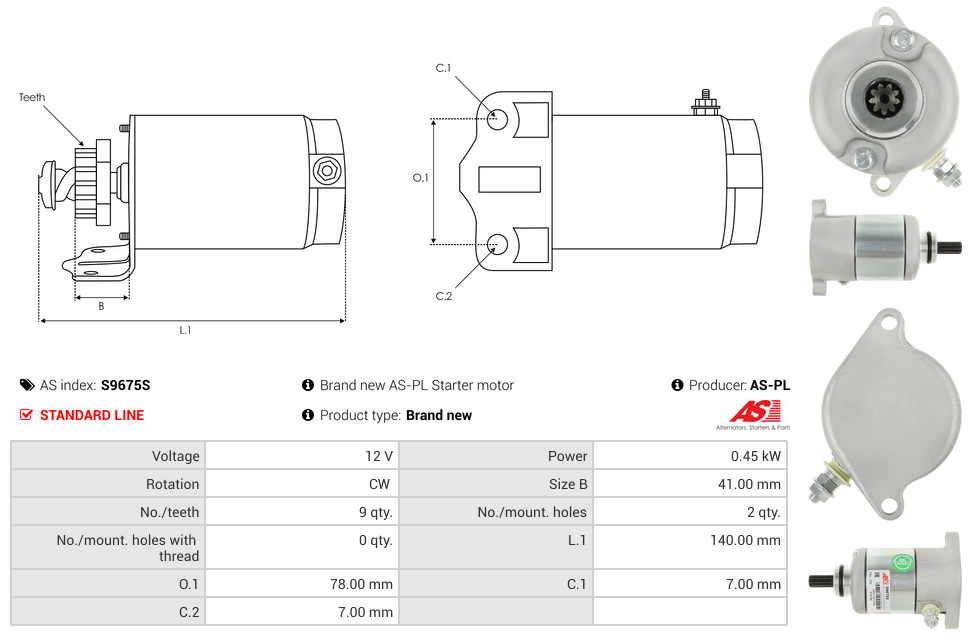

Specifications
| Kilowatt | 0.45 kW |
| Length (L.1) | 140 mm |
| Mount Hole Center - Center (O.1) | 78 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | NES 125 | 01.2000-12.2002 | |
| HONDA | NES 150 | 01.2000-12.2006 | |
| HONDA | SES 125 Dylan | 01.2002-12.2006 |
Reference Information
| 10033123AV | ITAB AUTOMOTIVE |
| 20467321BN | REAL |
| 255330 | KUHNER |
| 31200-KGF-901 | HONDA |
| 31200-KGF-902 | HONDA |
| 37046 | LESTER |
| 37046N | WAI / TRANSPO |
| 400.560.092.190 | PSH |
| 6033123.0 | SANDO |
| CST33123AS | CASCO |
| SM142-33 | MITSUBA |
| SMT123A | AUTOTEAM |
| UD19079S | AS-PL |
