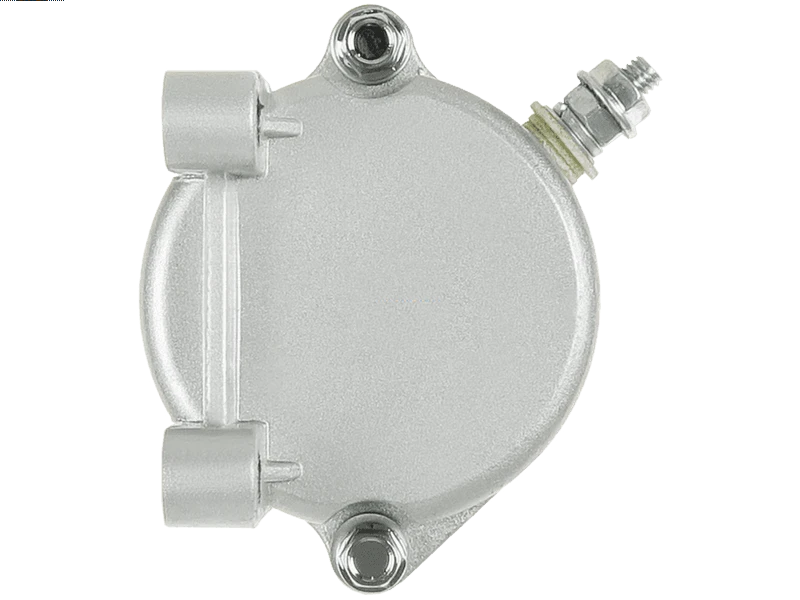

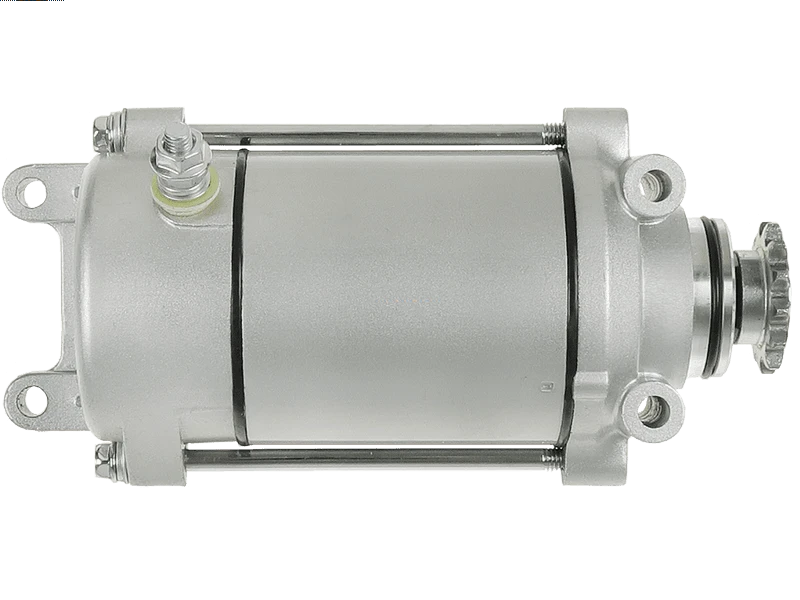

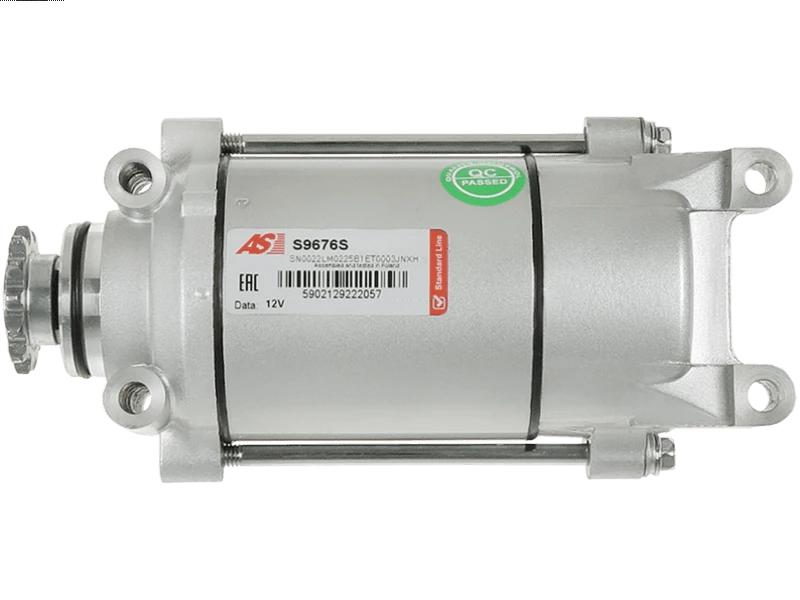

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 134.98 including GST
NZ$ 117.37 excluding GST
or four payments of $33.75
with
Learn More
each
S9676S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 183 mm |
| Mount Hole Center - Center (O.1) | 50 mm |
| Mount Hole Center - Center (O.2) | 148 mm |
| Mount Hole Center - Center (O.3) | 50 mm |
| Mount Hole Center - Center (O.4) | 148 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| Mount Hole Diameter (C.3) | 7 mm |
| Mount Hole Diameter (C.4) | 7 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Custom CM250C | [234cc] | 01.1982-12.1983 |
| HONDA | Nighthawk CB250 | [234cc] | 01.1991-12.2008 |
| HONDA | Rebel CMX250C | [234cc] | 01.1985-12.1987 |
| HONDA | Rebel CMX250C | [234cc] | 01.1996-12.2009 |
| HONDA | Rebel CMX250C2 | [234cc] | 01.1999-12.2000 |
| HONDA | Rebel CMX250CD | [234cc] | 01.1986-12.1986 |
| HONDA | Twinstar CM200T | [194cc] | 01.1980-12.1981 |
| HONDA | Twinstar CM200TC | [194cc] | 01.1982-12.1982 |
Reference Information
| 10439254 | ALANKO |
| 10439267 | ALANKO |
| 18611 | LESTER |
| 18611N | WAI / TRANSPO |
| 215345 | HI LEVEL |
| 255766 | KUHNER |
| 31200-402-700 | HONDA |
| 31200-465-671 | HONDA |
| 31200-KB4-008 | HONDA |
| 31200-KB4-700 | HONDA |
| 31200-KC2-315 | HONDA |
| 31200-KR3-008 | HONDA |
| 31200-KR3-405 | HONDA |
| 31200-KR3-900 | HONDA |
| 31200-KW4-018 | HONDA |
| 439254 | ALANKO |
| 439267 | ALANKO |
| HN2-0054R | JUST PARTS |
| HN2-0072N | JUST PARTS |
| RS41206 | DELCO |
| RS41207 | DELCO |
| SMU0080 | ARROWHEAD |
| SMU0081 | ARROWHEAD |
| STH0080 | HI LEVEL |
| UD19088S | AS-PL |
