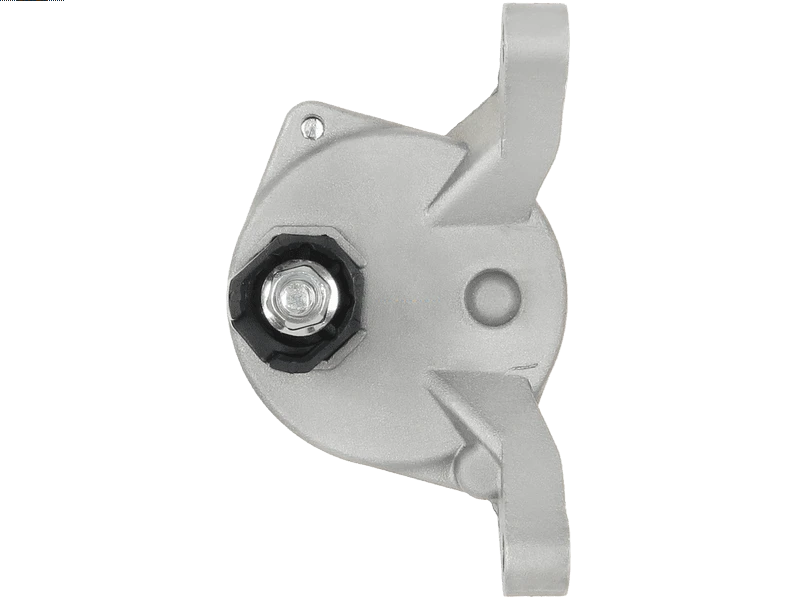

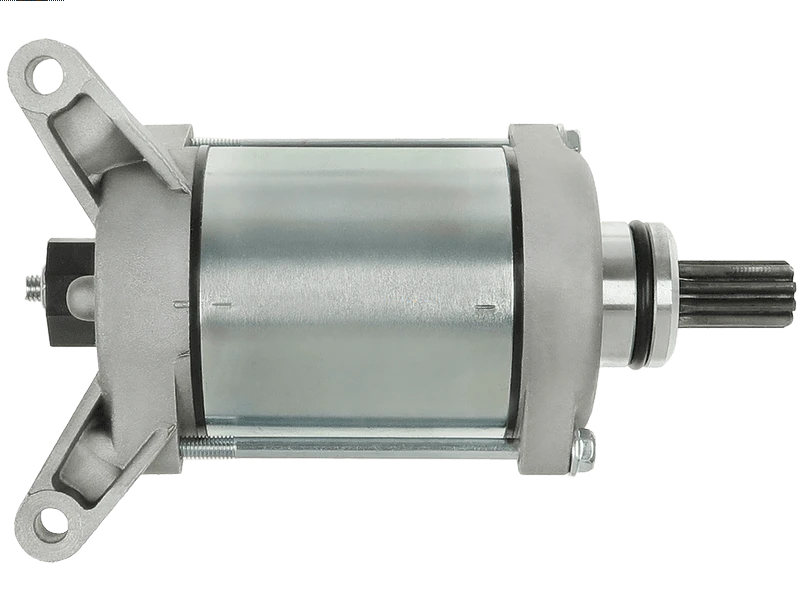

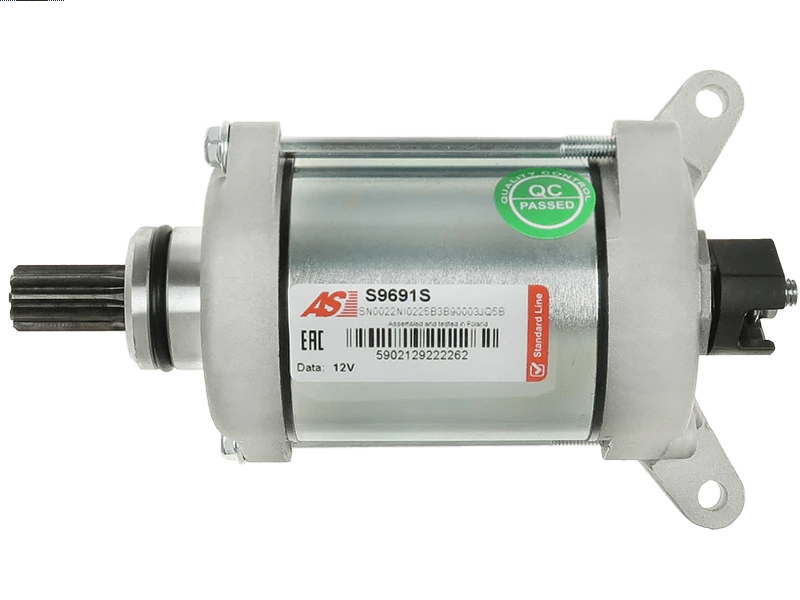

S9691S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 219.12 including GST

NZ$ 190.54 excluding GST


or four payments of $54.78 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S9691S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:


Arrowhead SMU0516
Lester 19499
PIC Picture ID 191322
Yamaha 1CT818900000

410-54148

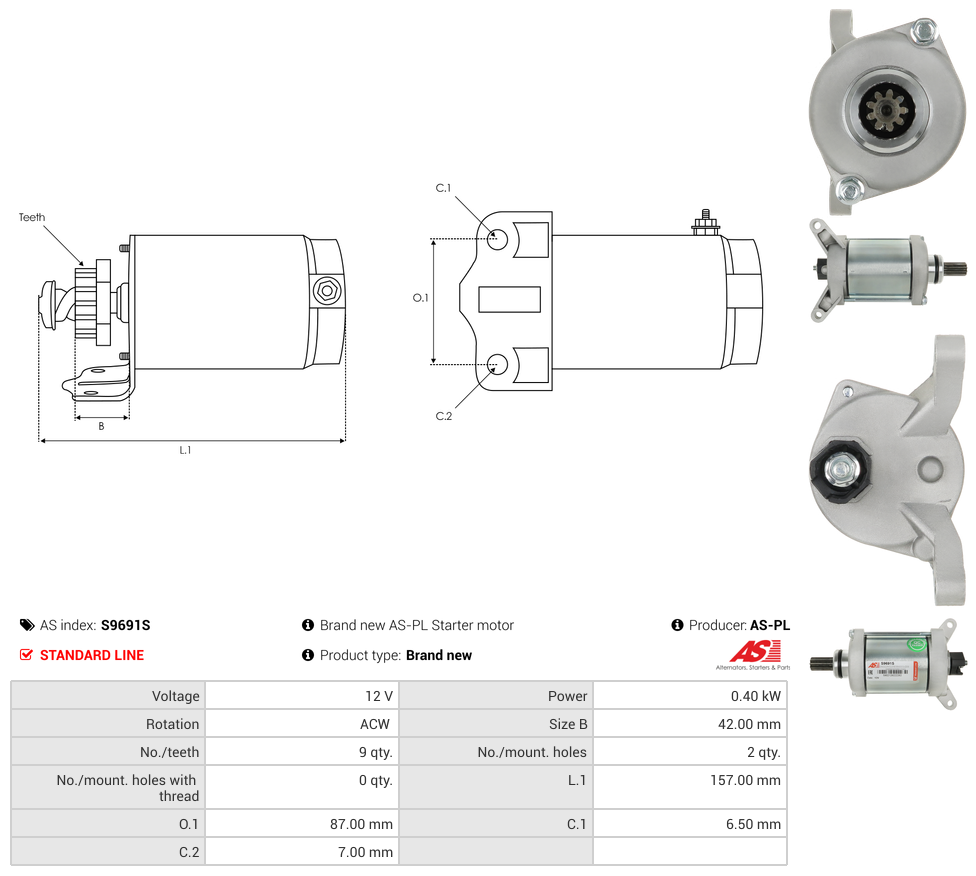

Kilowatt0.40 kW
Length (L.1)157 mm
Mount Hole Center - Center (O.1)87 mm
Mount Hole Diameter (C.1)6.50 mm
Mount Hole Diameter (C.2)7 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
OEM ProductNo
Pinion at Rest (B)42 mm
Product LineStandard Line
Product TypeBrand new
RotationACW
Unit TypeMITSUBA
Voltage12 V
Make Model Type Year
YAMAHA Grizzly 450 4WD Hunter YFM450FGH [449cc] 01.2011-12.2013
YAMAHA Grizzly 450 4WD Hunting YFM450DAE [449cc] 01.2014-12.2014
YAMAHA Grizzly 450 4WD YFM450FG [449cc] 01.2011-12.2014
YAMAHA Grizzly 450 4WD YFM450FGI [449cc] 01.2011-12.2014
YAMAHA Grizzly 450 EPS 4WD Hunter YFM45F0GPH [449cc] 01.2011-12.2014
YAMAHA Grizzly 450 EPS 4WD YFM450FGP [449cc] 01.2011-12.2014
YAMAHA Grizzly 450 EPS FWD YFM45FGP [449cc] 01.2011-12.2012
YAMAHA Grizzly 450 FWD YFM45FG [449cc] 01.2011-12.2012
10033152AVITAB AUTOMOTIVE
106-10442ROBERT'S
19499LESTER
19499NWAI / TRANSPO
1CT-81890-00-0YAMAHA
1CT-81890-00-00YAMAHA
20467251BNREAL
400.542.092.190PSH
410-54148J&N
6033152.0SANDO
71-26-19499WILSON
CST33152ASCASCO
MAV351520ASIOM
SMT152AAUTOTEAM
SMU0516ARROWHEAD
STR00806WESTERN STAR
UD19155SAS-PL
S9691S
