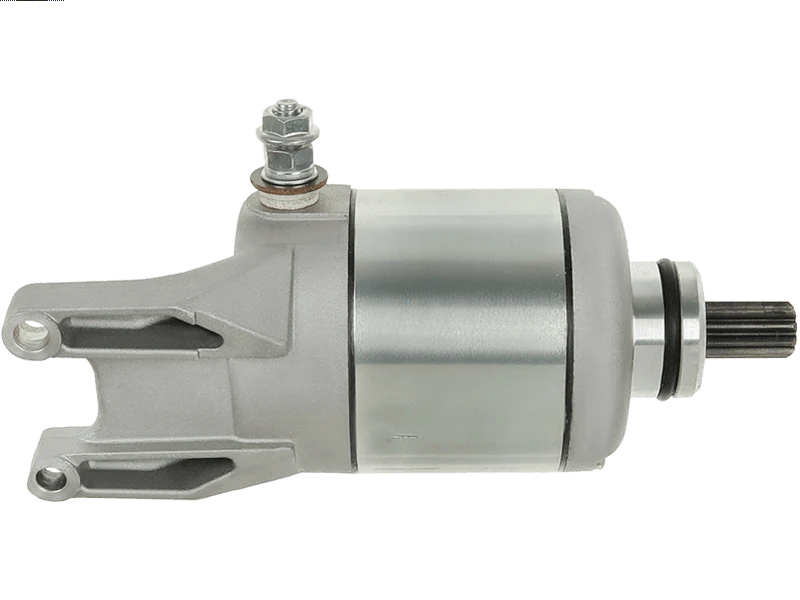

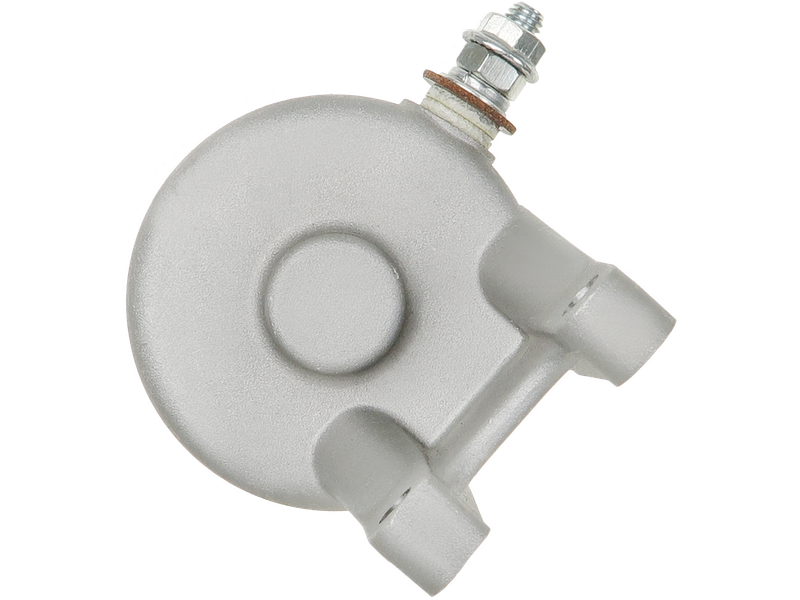

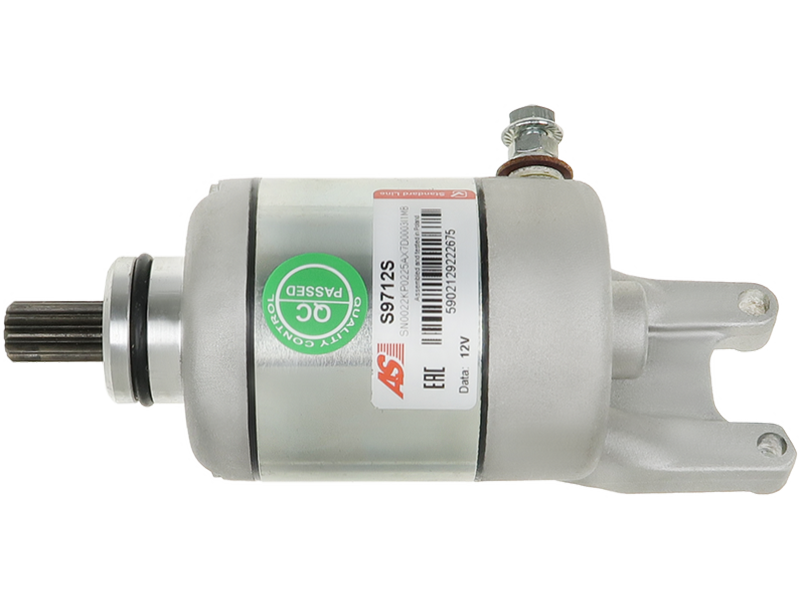

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 180.69 including GST
NZ$ 157.12 excluding GST
or four payments of $45.17
with
Learn More
each
S9712S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

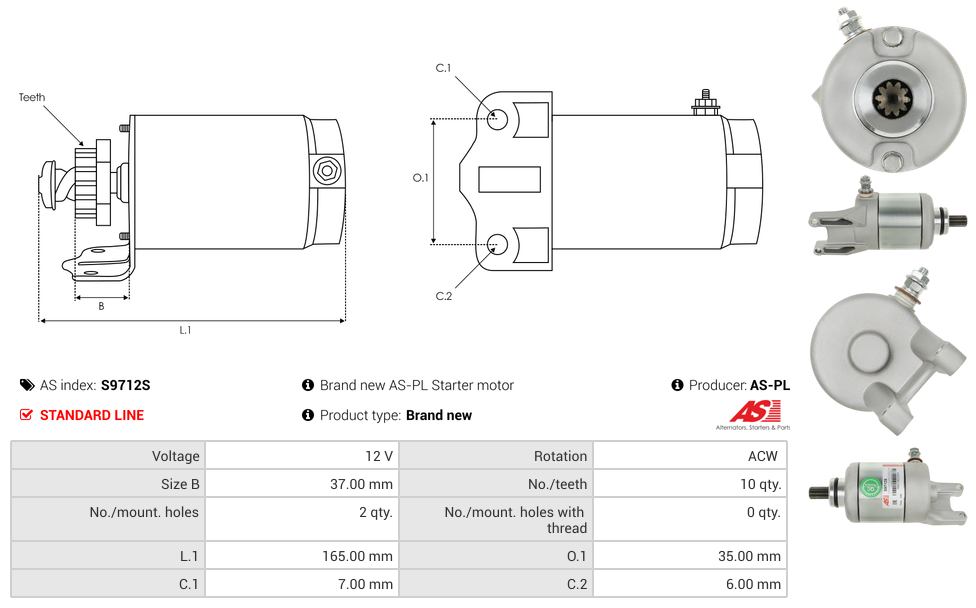

Specifications
| Length (L.1) | 165 mm |
| Mount Hole Center - Center (O.1) | 35 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | DR 250 S | [246cc] | 01.1985- |
| SUZUKI | DR 350 | [349cc] | 01.1989-12.1993 |
| SUZUKI | DR 350 | [349cc] | 01.1989-12.1997 |
Reference Information
| 18747 | LESTER |
| 18747N | WAI / TRANSPO |
| 31100-15D10 | SUZUKI |
| 31100-47D00 | SUZUKI |
| 31100-47D01 | SUZUKI |
| 3RW-81800-00-00 | YAMAHA |
| 3RW-81800-01-00 | YAMAHA |
| 410-54212 | J&N |
| 4JG-81800-00-00 | YAMAHA |
| SMU0250 | ARROWHEAD |
| STS0250 | HI LEVEL |
| UD19055S | AS-PL |
Video/Publications
