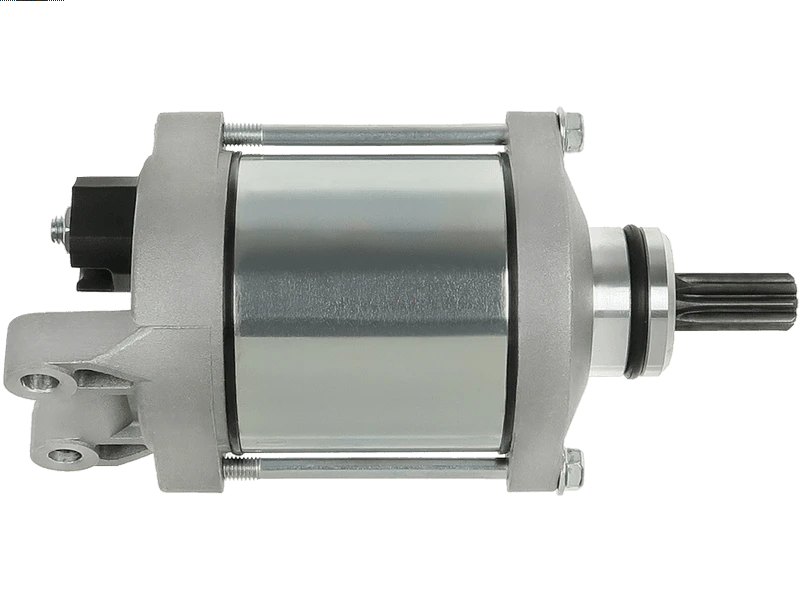

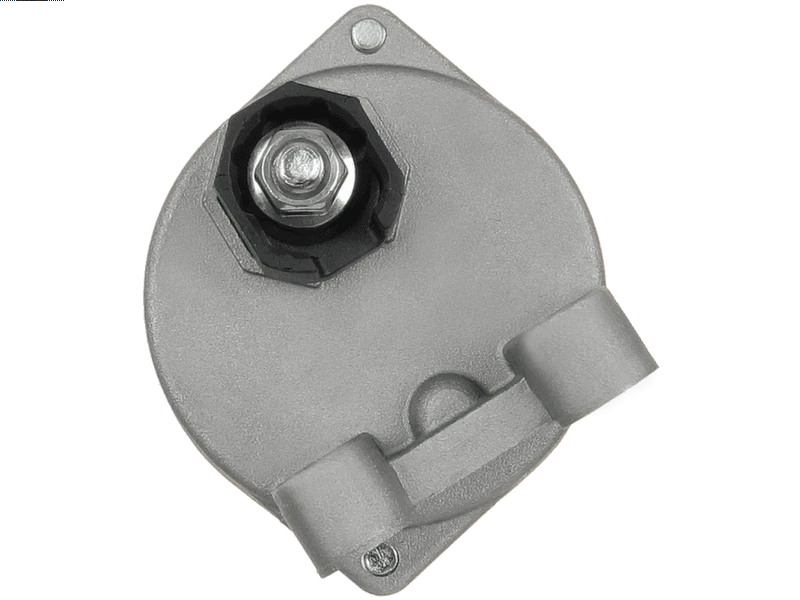

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 157.31 including GST
NZ$ 136.79 excluding GST
or four payments of $39.33
with
Learn More
each
S9713S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

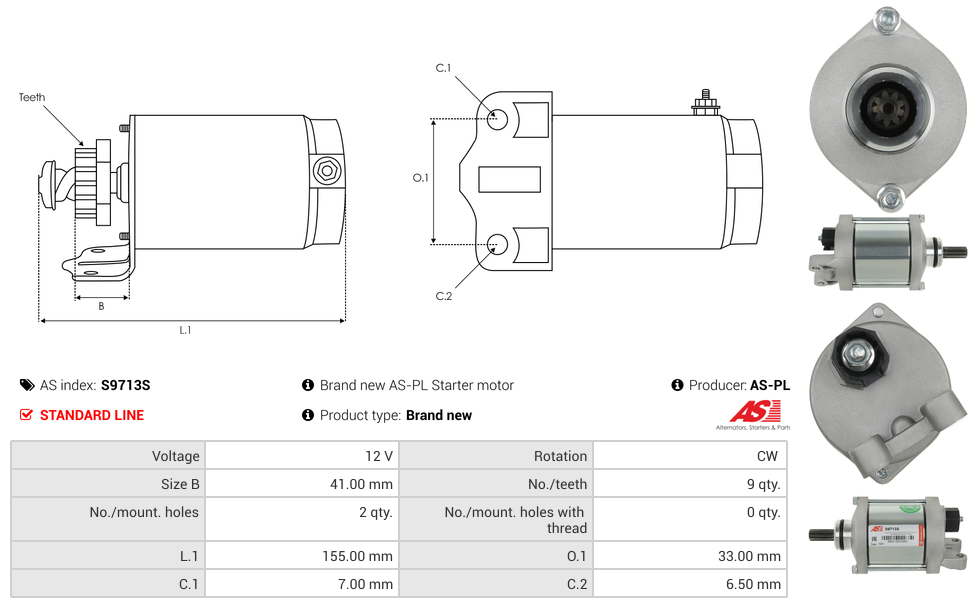

Specifications
| Length (L.1) | 155 mm |
| Mount Hole Center - Center (O.1) | 33 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KAWASAKI | KFX450R | [449cc] | 01.2008-12.2014 |
| KAWASAKI | KSF450 | [449cc] | 01.2008-12.2014 |
Reference Information
| 10439107 | ALANKO |
| 19032 | LESTER |
| 19032N | WAI / TRANSPO |
| 21163-0033 | KAWASAKI |
| 22-19032 | WAI / TRANSPO |
| 439107 | ALANKO |
| 71-26-19032 | WILSON |
| SMU0460 | ARROWHEAD |
| UD19058S | AS-PL |
Video/Publications
S9713SView your shopping basket or Browse other items in Starter Motors.
