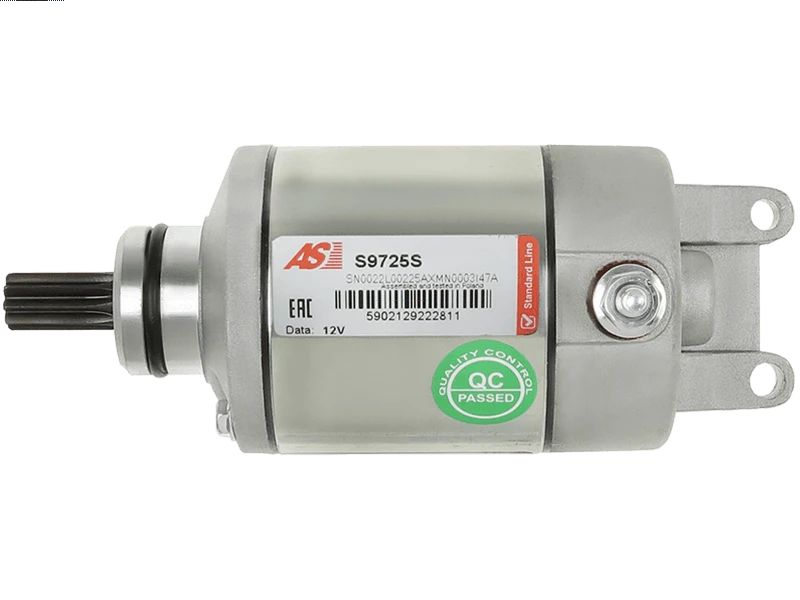

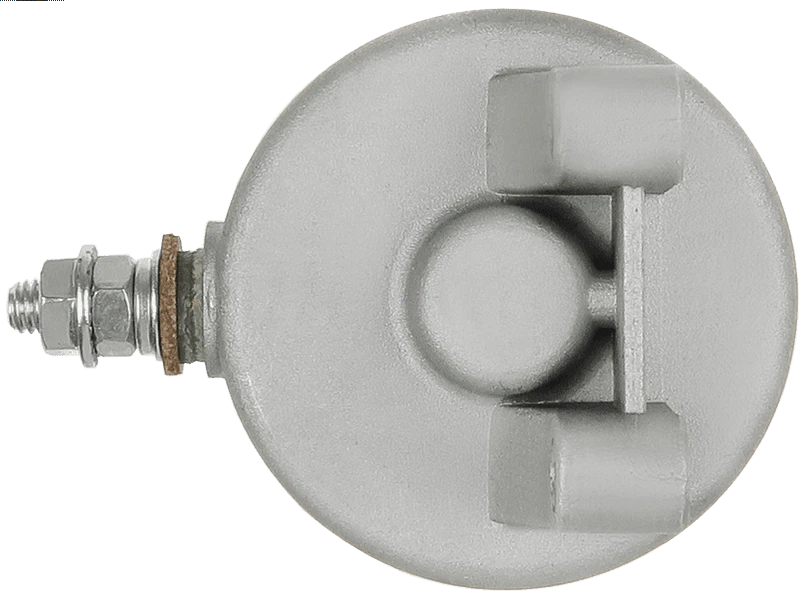

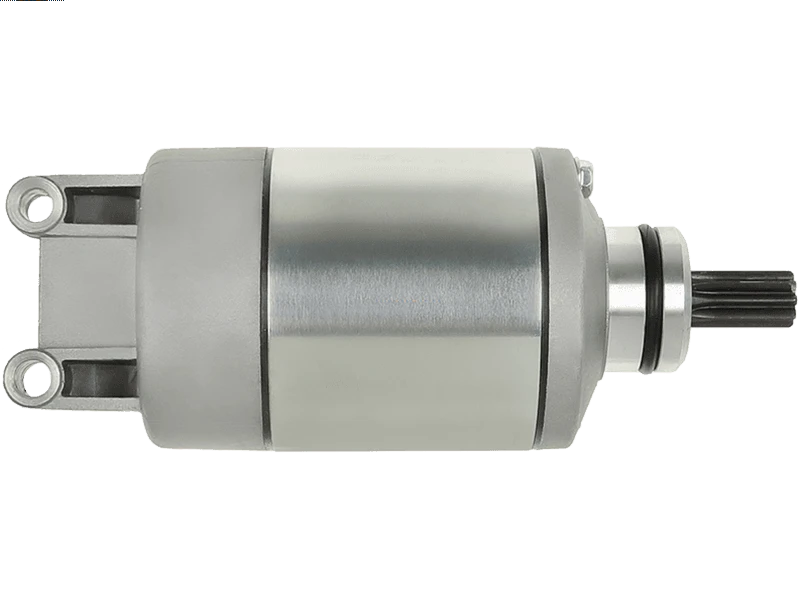

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 151.13 including GST
NZ$ 131.42 excluding GST
or four payments of $37.78
with
Learn More
UOM:
each
Product Code:
S9725S
1
Specifications
| Kilowatt | 0.40 kW |
| Length (L.1) | 160 mm |
| Mount Hole Center - Center (O.1) | 33 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | GSX-R600 | [599cc] | 01.2001-12.2001 |
| SUZUKI | GSX-R600 | [599cc] | 01.2002-12.2005 |
| SUZUKI | GSX-R750 | [750cc] | 01.1996-12.1997 |
| SUZUKI | GSX-R750 | [750cc] | 01.1998-12.1999 |
| SUZUKI | GSX-R750 | [750cc] | 01.2000-12.2000 |
| SUZUKI | GSX-R750 | [750cc] | 01.2001-12.2001 |
| SUZUKI | GSX-R750 | [750cc] | 01.2002-12.2005 |
Reference Information
| 10439170 | ALANKO |
| 180.022.092.190 | PSH |
| 180.022.092.190 | PSH |
| 18792 | LESTER |
| 18792 | LESTER |
| 18792N | WAI / TRANSPO |
| 18792N | WAI / TRANSPO |
| 20467341BN | REAL |
| 255786 | KUHNER |
| 31100-33E00 | SUZUKI |
| 31100-35F00 | SUZUKI |
| 31100-35F00 | SUZUKI |
| 31200-MBW-611 | HONDA |
| 6033143.0 | SANDO |
| 71-26-18792 | WILSON |
| 71-26-18792 | WILSON |
| RS41214 | DELCO |
| RS41214 | DELCO |
| S154.309 | PSH |
| S154.309 | PSH |
| SM142-34 | MITSUBA |
| SM142-34 | MITSUBA |
| UD19066S | AS-PL |
Video/Publications
