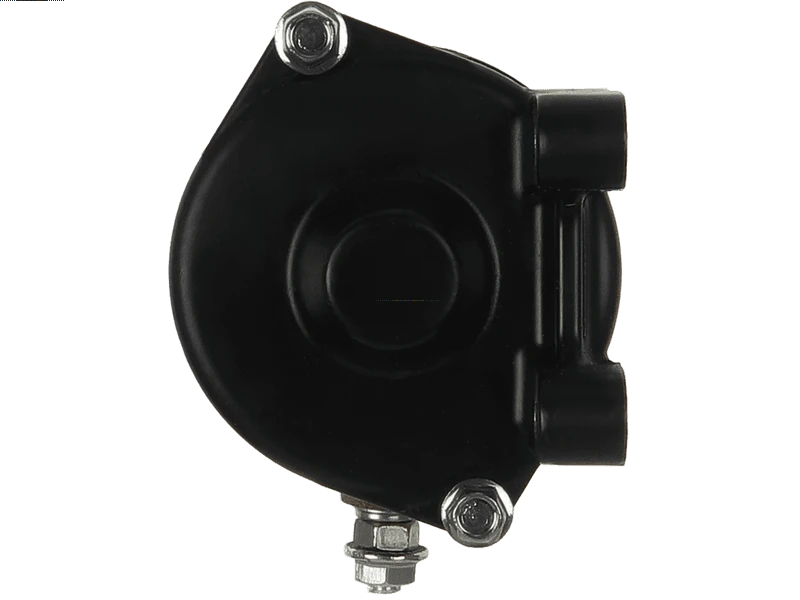

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 183.24 including GST
NZ$ 159.34 excluding GST
or four payments of $45.81
with
Learn More
each
S9732S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

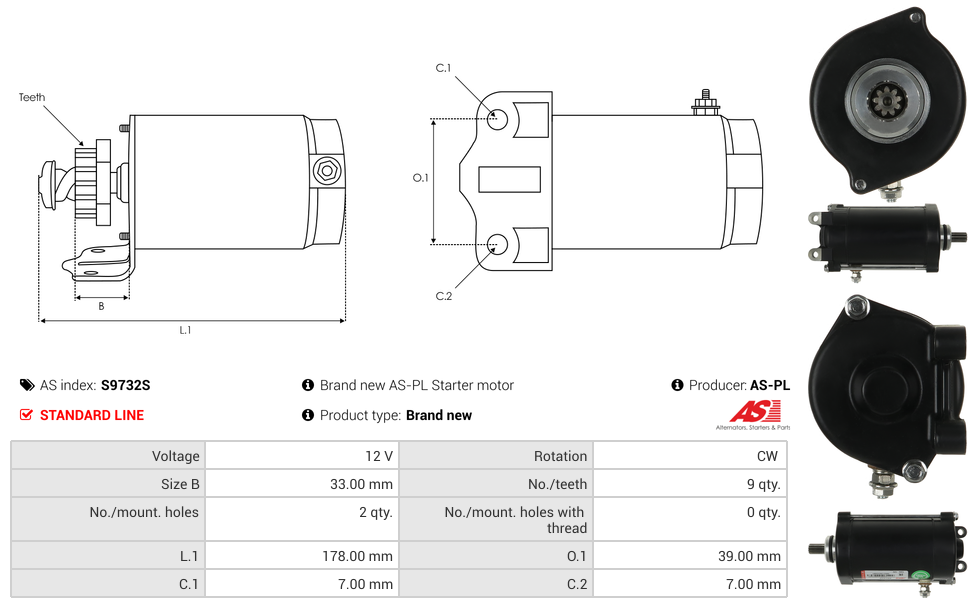

Specifications
| Length (L.1) | 178 mm |
| Mount Hole Center - Center (O.1) | 39 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KAWASAKI | KLX650 | 01.1993-12.1996 |
Reference Information
| 107202 | FARCOM |
| 18690 | LESTER |
| 18690N | LESTER |
| 21163-1108 | KAWASAKI |
| 21163-1217 | KAWASAKI |
| SMU0121 | ARROWHEAD |
| STU1878 | KRAUF |
| UD19146S | AS-PL |
