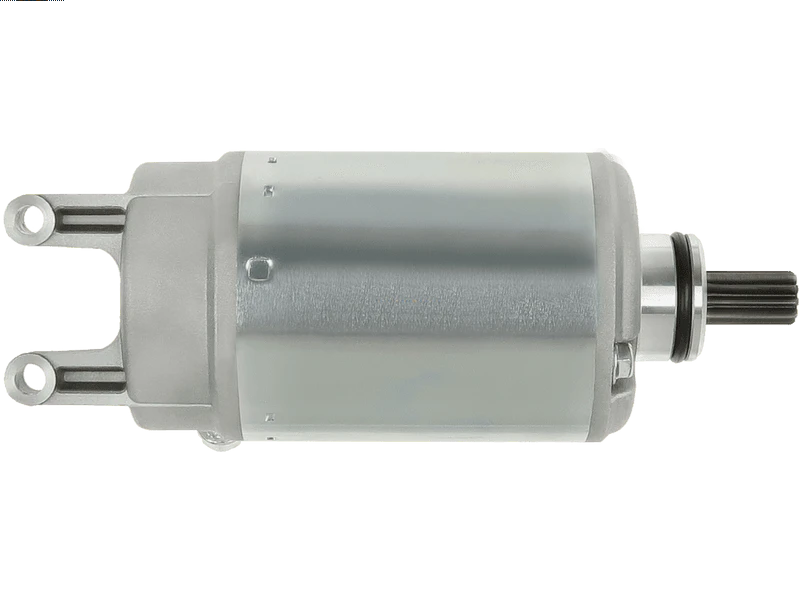

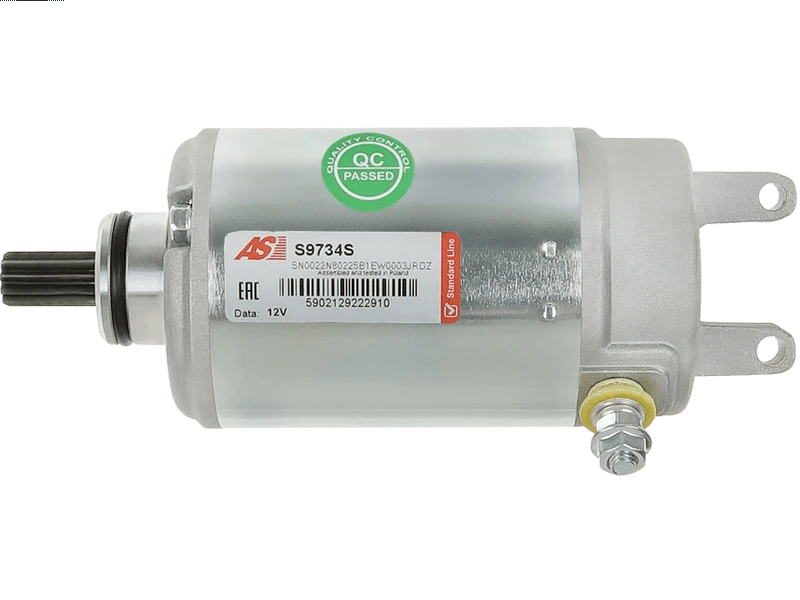

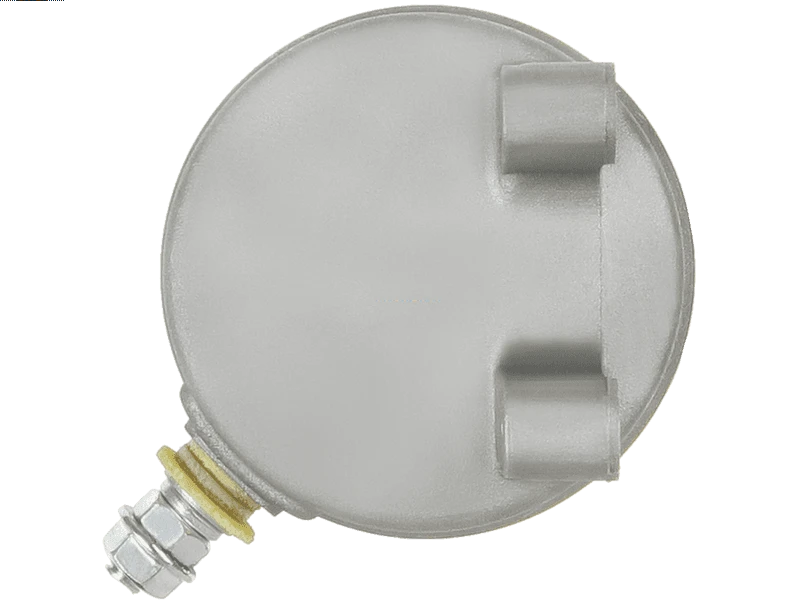

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 166.58 including GST
NZ$ 144.85 excluding GST
or four payments of $41.65
with
Learn More
each
S9734S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

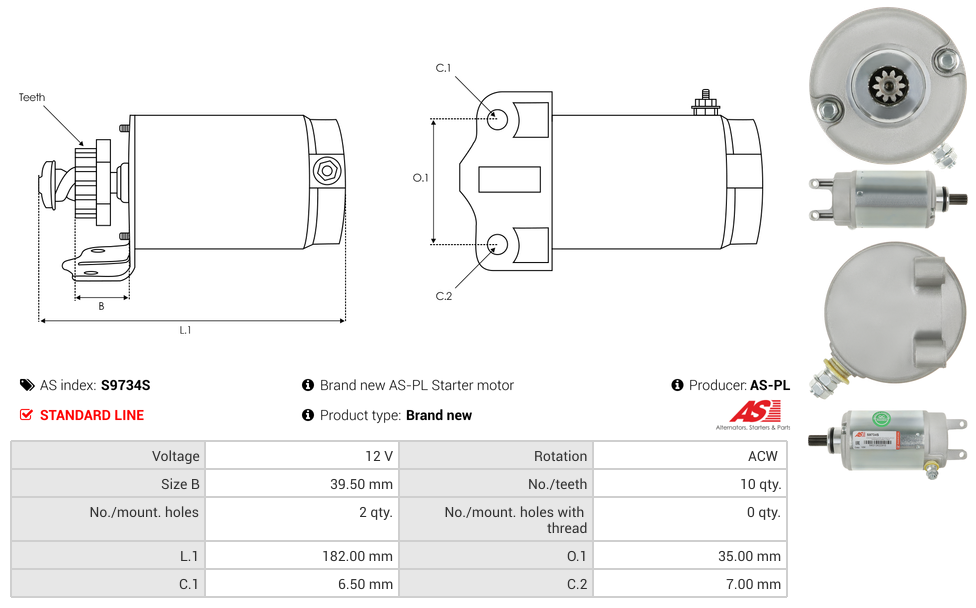

Specifications
| Length (L.1) | 182 mm |
| Mount Hole Center - Center (O.1) | 35 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 39.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | GS 500 E | 01.1989-12.1995 | |
| SUZUKI | GS 500 E | 01.1996-12.2000 | |
| SUZUKI | GS 500 E | 01.2001-12.2008 | |
| SUZUKI | GSX 750 F | 01.1989-12.1997 |
Reference Information
| 10439171 | ALANKO |
| 18828 | LESTER |
| 18828N | WAI / TRANSPO |
| 21163-0017 | KAWASAKI |
| 21163-1283 | KAWASAKI |
| 21163-1288 | KAWASAKI |
| 228000-7040 | DENSO |
| 242-06166 | DIXIE |
| 439171 | ALANKO |
| UD19145S | AS-PL |
