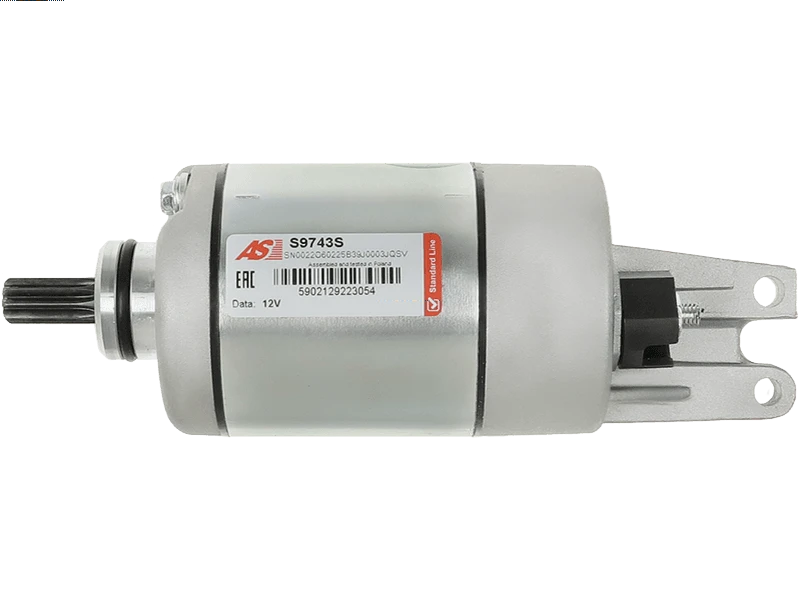

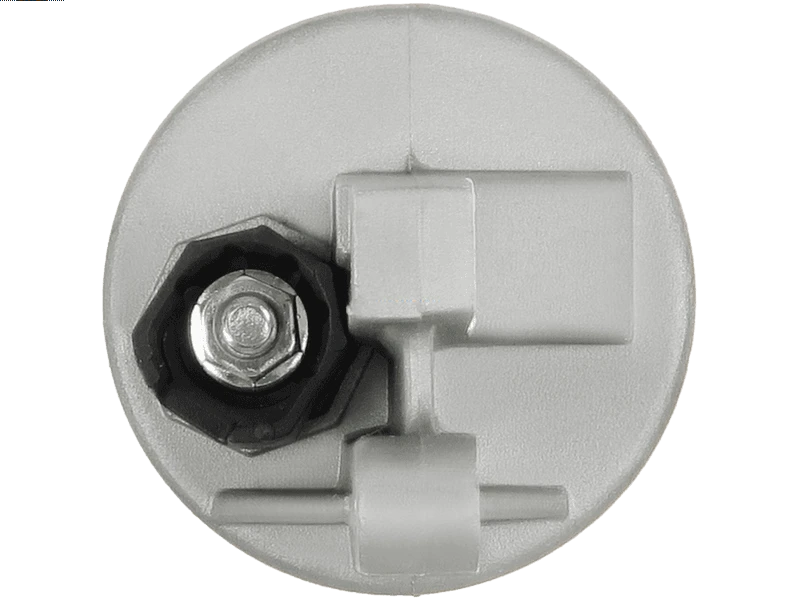

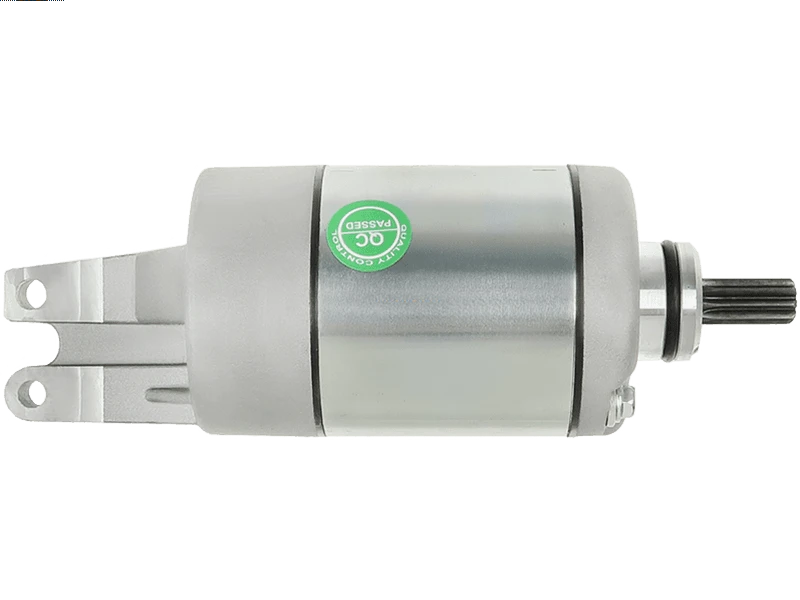

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 140.98 including GST
NZ$ 122.59 excluding GST
or four payments of $35.25
with
Learn More
UOM:
each
Product Code:
S9743S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
31200HL1A01
06311HL1-305
HONDA: 06311-HL1-305, 31200-HL1-A01, 06311HL1305, 31200HL1A01
19276
410-54165
41054165
Specifications
| Kilowatt | 0.40 kW |
| Length (L.1) | 198 mm |
| Mount Hole Center - Center (O.1) | 24 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | MUV700 | [675cc] | 01.2009-12.2013 |
Reference Information
| 06311-HL1-305 | HONDA |
| 19276 | LESTER |
| 19276N | LESTER |
| 31200-HL1-A01 | HONDA |
| 71-26-19276 | WILSON |
| SMU0529 | ARROWHEAD |
| SMU0543 | ARROWHEAD |
| UD19174S | AS-PL |
