Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 134.14 including GST
NZ$ 116.64 excluding GST
or four payments of $33.54
with
Learn More
each
S9744S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

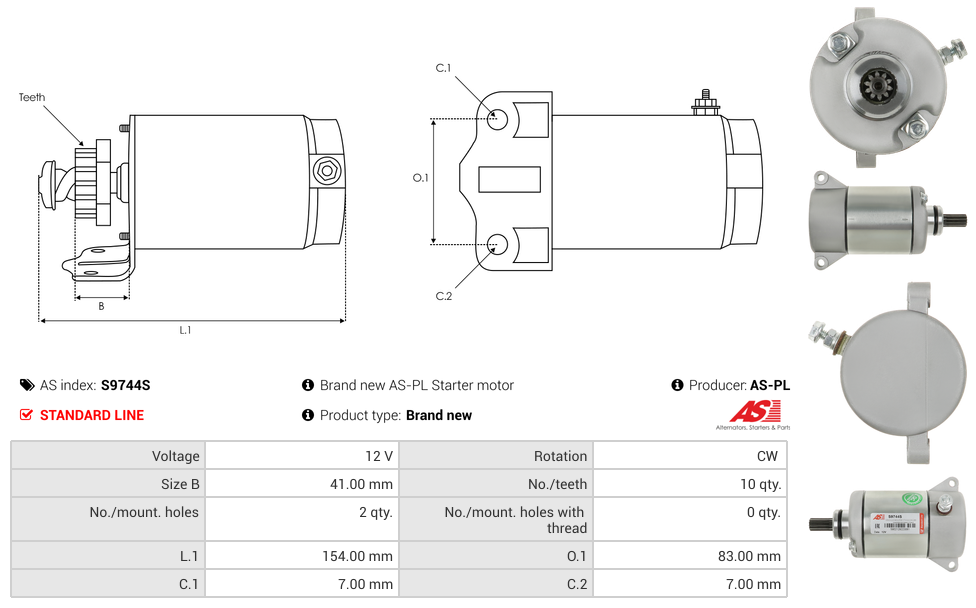

Specifications
| Length (L.1) | 154 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| POLARIS | Hawkeye 2x4 | [299cc] | 01.2006-12.2009 |
| POLARIS | Hawkeye 4x4 | [299cc] | 01.2006-12.2008 |
| POLARIS | Sportsman 300 | [299cc] | 01.2008-12.2009 |
Reference Information
| 18912 | LESTER |
| 18912N | WAI / TRANSPO |
| 3089879 | POLARIS |
| 3090192 | POLARIS |
| 71-26-18912 | WILSON |
| PO2-0008N | JUST PARTS |
| RS41256 | DELCO |
| SMU0403 | ARROWHEAD |
| UD19177S | AS-PL |
Video/Publications
