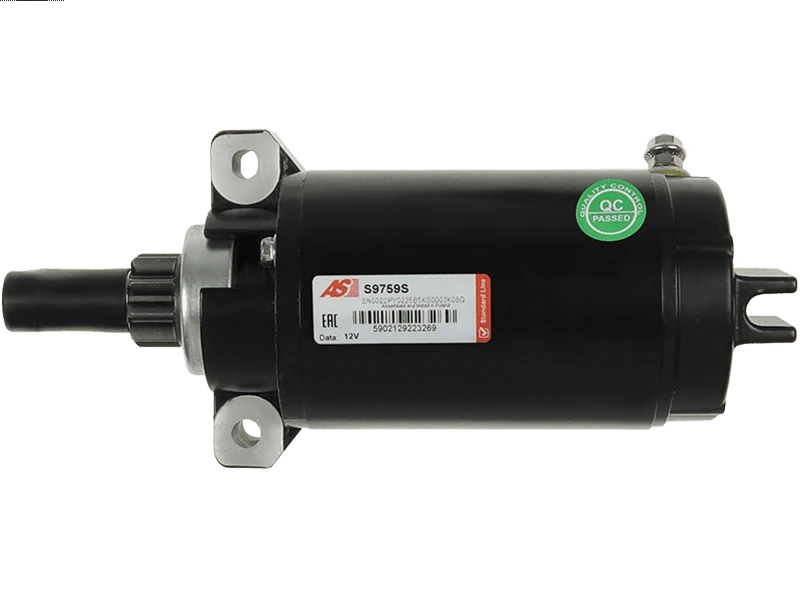

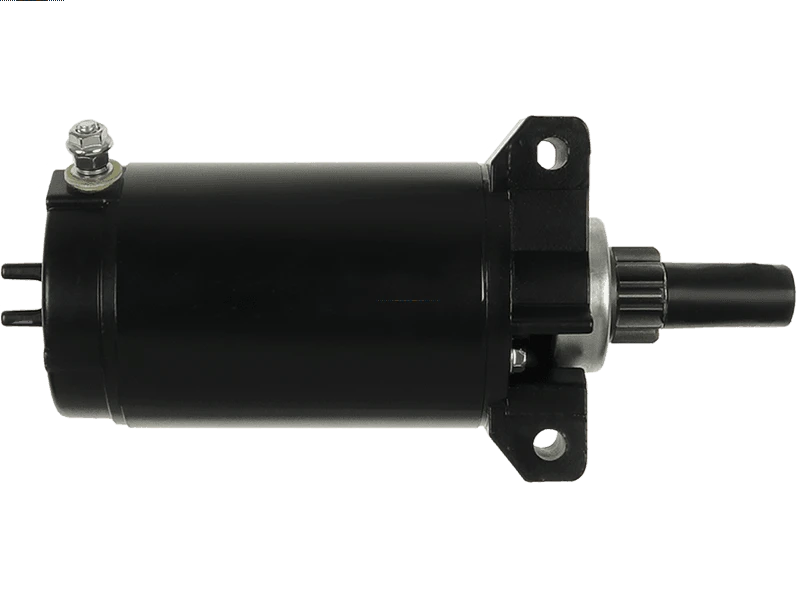

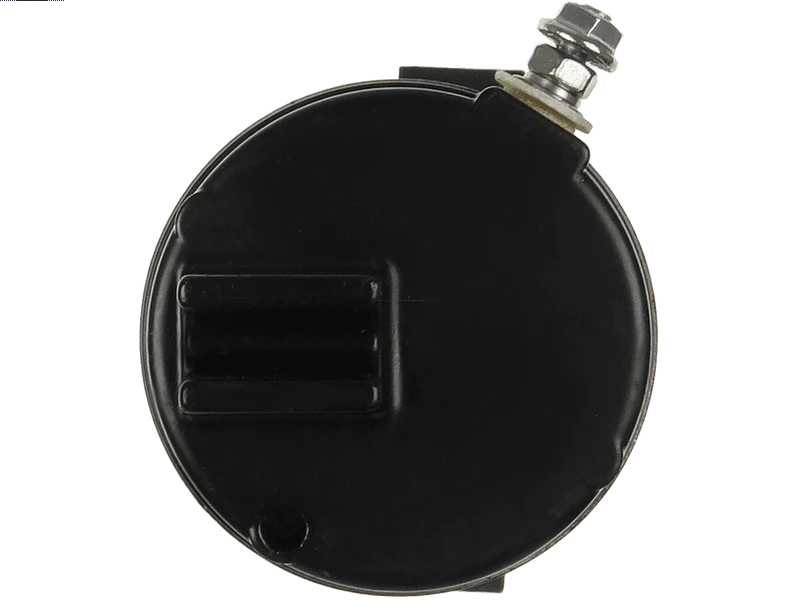

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 197.24 including GST
NZ$ 171.51 excluding GST
or four payments of $49.31
with
Learn More
each
S9759S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 233 mm |
| Mount Hole Center - Center (O.1) | 82 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MARINER | 50EL B/F Four Stroke | [57.0ci-50H.P.] | 01.1999-12.2000 |
| MARINER | 50EL Four Stroke | [57.0ci-50H.P.] | 01.1998-12.1998 |
| MARINER | 50ELHPT Four Stroke | [57.0ci-50H.P.] | 01.1995-12.1998 |
| MARINER | 50ELHPT Four Stroke | [57.0ci-50H.P.] | 01.1999-12.2000 |
| MARINER | 50ELPT B/F Four Stroke | [57.0ci-50H.P.] | 01.1998-12.2000 |
| MARINER | 50ELPT Four Stroke | [57.0ci-50H.P.] | 01.1995-12.2000 |
| MERCURY | 50EL B/F Four Stroke | [57.0ci-50H.P.] | 01.1999-12.2000 |
| MERCURY | 50EL Four Stroke | [57.0ci-50H.P.] | 01.1998-12.1998 |
| MERCURY | 50ELHPT Four Stroke | [57.0ci-50H.P.] | 01.1996-12.2000 |
| MERCURY | 50ELPT B/F Four Stroke | [57.0ci-50H.P.] | 01.1998-12.2000 |
| MERCURY | 50ELPT Four Stroke | [57.0ci-50H.P.] | 01.1995-12.2000 |
Reference Information
| 10153540 | UNITED TECHNOLOGIES |
| 10153540MO30SM | UNITED TECHNOLOGIES |
| 10441288 | ALANKO |
| 107628 | FARCOM |
| 113591 | CARGO |
| 206-03107 | DIXIE |
| 256249 | KUHNER |
| 410-21039 | J&N |
| 50-834749 | MERCURY |
| 50-859171 | MERCURY |
| 50-859171T | MERCURY |
| 5758 | LESTER |
| 5758N | WAI / TRANSPO |
| 6743240M030SM | UNITED TECHNOLOGIES |
| 6743240MO30SM | UNITED TECHNOLOGIES |
| 71-09-5758 | WILSON |
| 91-09-1074 | WILSON |
| 970.025.092.200 | PSH |
| F032113591 | CARGO |
| MS-6022 | DIXIE |
| RS41055 | DELCO |
| S136.156 | PSH |
| SAB0117 | ARROWHEAD |
| SM67432 | UNITED TECHNOLOGIES |
| STR88233 | WOODAUTO |
| STZ3591 | KRAUF |
| TT16300 | TESLA |
| UD19211S | AS-PL |
| WOOSTR88233 | WOODAUTO |
