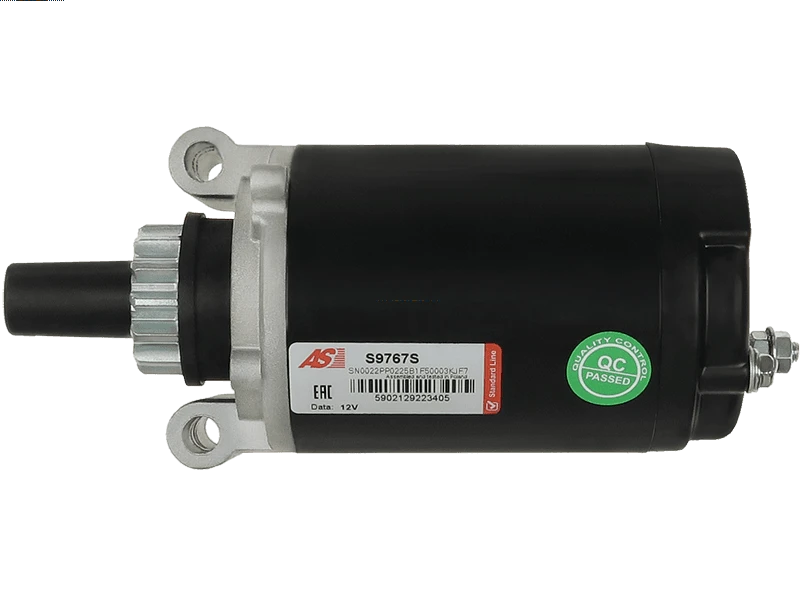

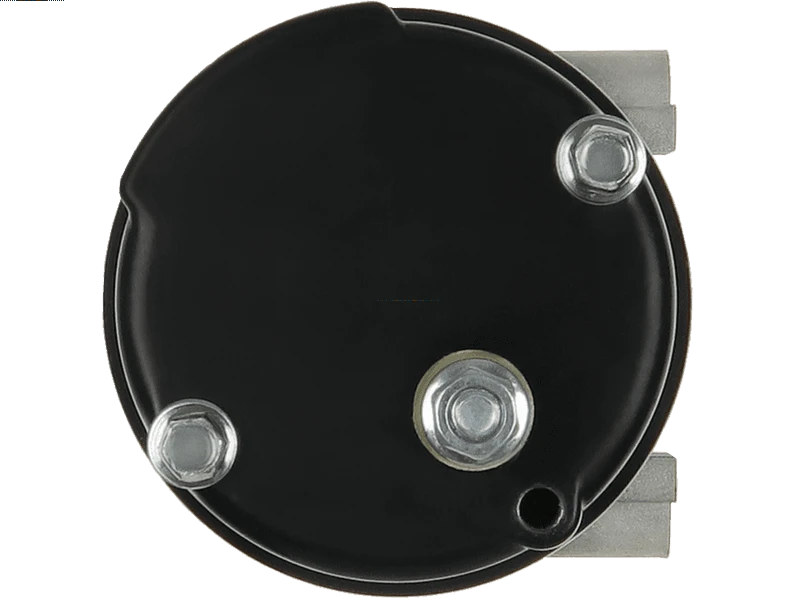

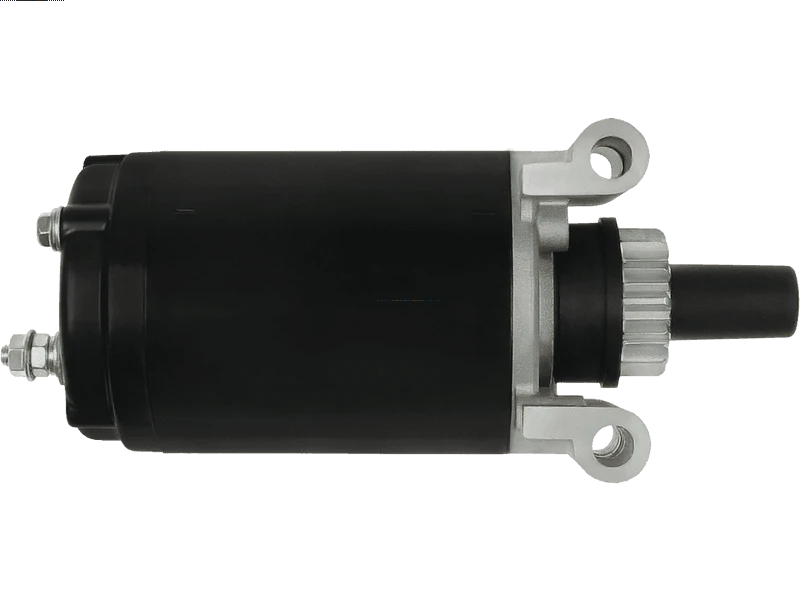

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 147.64 including GST
NZ$ 128.38 excluding GST
or four payments of $36.91
with
Learn More
each
S9767S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
Arrowhead SAB0038
J&N 41021083
Johnson Electric 5239740, 5278440, 5667040, 6734640
Kohler 1209805, 1209806, 1209809, 1209809S, 1209812, 1209814, 1209821, 1209821S
Lester 5771
Wilson 71095771, 91091045, 91091072
SNUT003
JOHNSON ELECTRIC 6734640
KOHLER 1209805
KOHLER 1209806
KOHLER 1209809
KOHLER 1209812
KOHLER 1209819
KOHLER 1209819S
KOHLER 1209821
KOHLER 1209821S
UNITED TECH. 5239740M030SM
UNITED TECH. 5278440M030SM
UNITED TECH. 5667040M030SM
UNITED TECH. 6734640
UNITED TECH. SM52397
UNITED TECH. SM52784
UNITED TECH. SM56670
410-21042
Specifications
| Length (L.1) | 202 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUB CADET | 1315 | [12.5H.P.] | 01.1989-12.1991 |
| CUB CADET | 1320 | [12.5H.P.] | 01.1989-12.1991 |
| CUB CADET | 1325 | [12.5H.P.] | 01.1992-12.1993 |
| CUB CADET | 1330 | 01.1992-12.1993 | |
| CUB CADET | 1340 | [12.5H.P.] | 01.1990-12.1991 |
| CUB CADET | 1405 | [14H.P.] | 01.1990-12.1991 |
| CUB CADET | 1405 | 01.1990-12.1991 | |
| CUB CADET | 1415 | 01.1988-12.1989 | |
| CUB CADET | 1420 | 01.1988-12.1991 | |
| CUB CADET | 1715 | 01.1988-12.1990 | |
| CUB CADET | 1720 | 01.1988-12.1991 | |
| KOHLER | C12-5 | 01.1998-12.2008 | |
| TORO | 264-6 | [14H.P.] | 01.1994-12.1996 |
| TORO | 264-H | [14H.P.] | 01.1994-12.1996 |
| TORO | 312-8 | [12.5H.P.] | 01.1998-12.2001 |
| TORO | 312-8 | 01.1998-12.2008 | |
| TORO | 314-8 | [14H.P.] | 01.1999-12.2001 |
| TORO | 314-8 | 01.1998-12.2008 | |
| TORO | 314-8-T | 01.1998-12.2008 | |
| TORO | 314-H | 01.1995-12.2005 | |
| TORO | 315-8 | [15H.P.] | 01.2002-12.2004 |
| TORO | GT | 01.2005-12.2007 | |
| TORO | ProLine 185 | [CV14S-1429] | 01.1991-12.1992 |
Reference Information
| 10440762 | ALANKO |
| 112150 | CARGO |
| 12-098-05 | KOHLER |
| 12-098-06 | KOHLER |
| 12-098-09 | KOHLER |
| 1209812 | KOHLER |
| 1209814 | KOHLER |
| 1209819 | KOHLER |
| 12-098-19S | KOHLER |
| 12-098-21 | KOHLER |
| 12-098-21-S | KOHLER |
| 20607111 | DIXIE |
| 206-07111 | DIXIE |
| 2-2242 | WAI / TRANSPO |
| 254969 | KUHNER |
| 400.500.132.200 | PSH |
| 5239740 | CHRYSLER |
| 5239740M030SM | UNITED TECHNOLOGIES |
| 5239740MO30SM | UNITED TECHNOLOGIES |
| 5278440 | UNITED TECHNOLOGIES |
| 5278440M030SM | UNITED TECHNOLOGIES |
| 5278440MO30SM | UNITED TECHNOLOGIES |
| 5667040 | UNITED TECHNOLOGIES |
| 5667040M030SM | UNITED TECHNOLOGIES |
| 5667040MO30SM | UNITED TECHNOLOGIES |
| 5771 | LESTER |
| 5771N | WAI / TRANSPO |
| 6727020MO30SM | JOHNSON ELECTRIC |
| 6734620MO30SM | UNITED TECHNOLOGIES |
| 6734640MO30SM | JOHNSON ELECTRIC |
| 71-09-5771 | WILSON |
| 96756 | DELCO |
| AC-CBS5112 | ACAUTO |
| F032112150 | BOSCH |
| MS-699 | DIXIE |
| RS41023 | DELCO |
| SAB0038 | ARROWHEAD |
| SM52397 | UNITED TECHNOLOGIES |
| SM52784 | UNITED TECHNOLOGIES |
| SM56670 | UNITED TECHNOLOGIES |
| STR7639 | ELECTROLOG |
| STR88201 | WOODAUTO |
| STZ5771 | KRAUF |
| UD19202S | AS-PL |
| UT2-0019N | JUST PARTS |
| UT2-0019N-A | JUST PARTS |
| UT2-0074N | JUST PARTS |
| WOOSTR88201 | WOODAUTO |
Video/Publications
