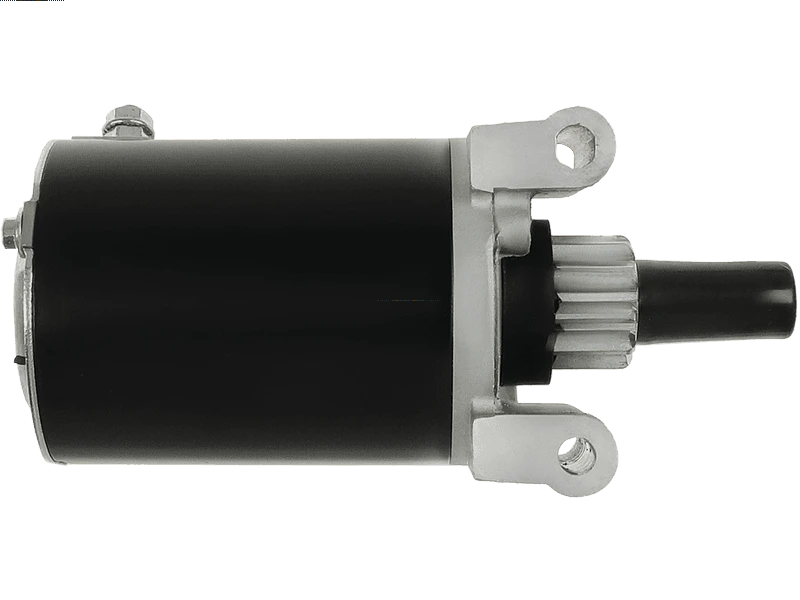

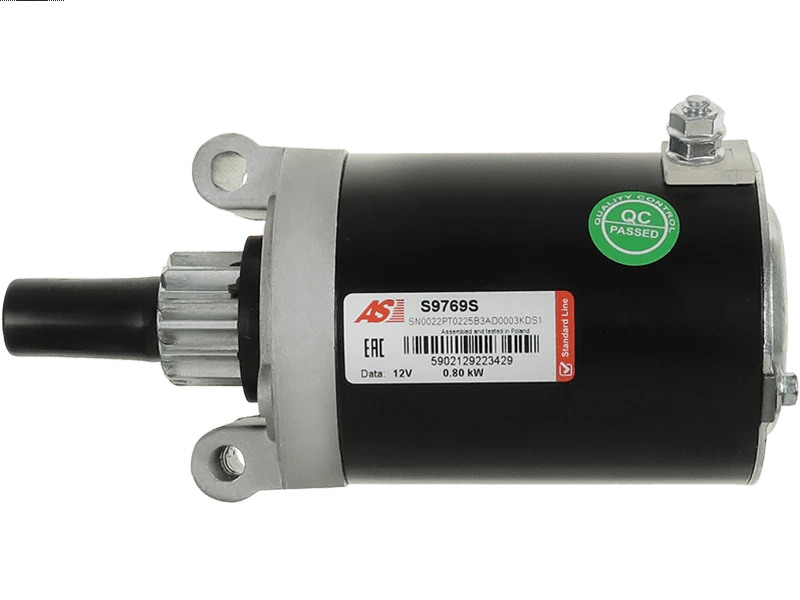

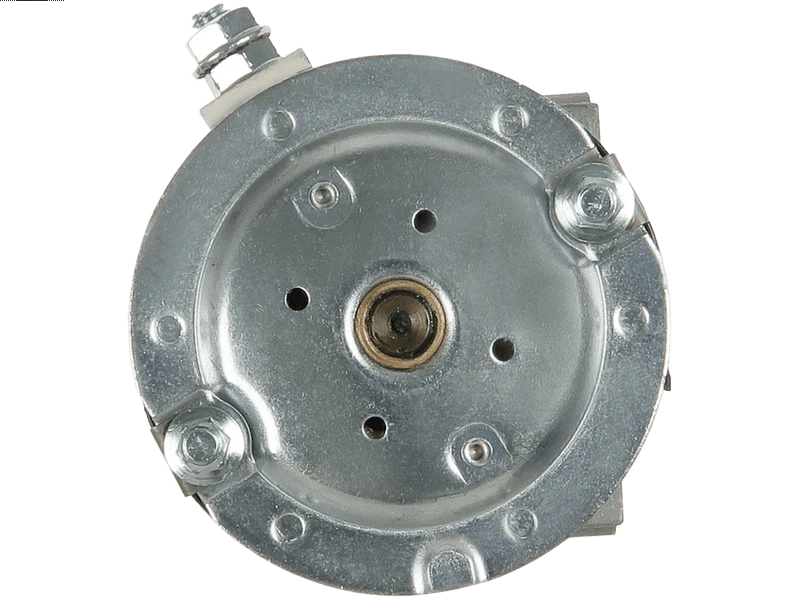

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 166.52 including GST
NZ$ 144.80 excluding GST
or four payments of $41.63
with
Learn More
each
S9769S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 183 mm |
| Mount Hole Center - Center (O.1) | 68 mm |
| Mount Hole Diameter (C.1) | 8 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Engine | [CV12.5] | |
| JOHN DEERE | Engine | [CV14] |
Reference Information
| 10038131AV | ITAB AUTOMOTIVE |
| 10441030 | ALANKO |
| 106-10144 | ROBERT'S |
| 106-10144NOE | ROBERT'S |
| 107267 | FARCOM |
| 113017 | CARGO |
| 12-098-10 | KOHLER |
| 20415131BN | REAL |
| 206-07120 | DIXIE |
| 2-2756-UT-2 | WAI / TRANSPO |
| 25-098-03 | KOHLER |
| 25-098-03S | KOHLER |
| 254973 | KUHNER |
| 3117852 | HENKEL PARTS |
| 400.078.102.200 | PSH |
| 5667140MO30SM | JOHNSON ELECTRIC |
| 5775 | LESTER |
| 5775N | WAI / TRANSPO |
| 6038131.0 | SANDO |
| 6727040MO30SM | UNITED TECHNOLOGIES |
| 71-09-5775 | WILSON |
| 96772 | DELCO |
| AM117130 | JOHN DEERE |
| AM120729 | JOHN DEERE |
| AM132818 | JOHN DEERE |
| CST38131AS | CASCO |
| F032113017 | CARGO |
| MAV401310A | SIOM |
| MS-6001 | DIXIE |
| MS-6004 | DIXIE |
| RS41349 | DELCO |
| SAB0108 | ARROWHEAD |
| SCA131A | AUTOTEAM |
| SE501845 | JOHN DEERE |
| STC0026 | ARROWHEAD |
| STZ7130 | KUHNER |
| UD19206S | AS-PL |
