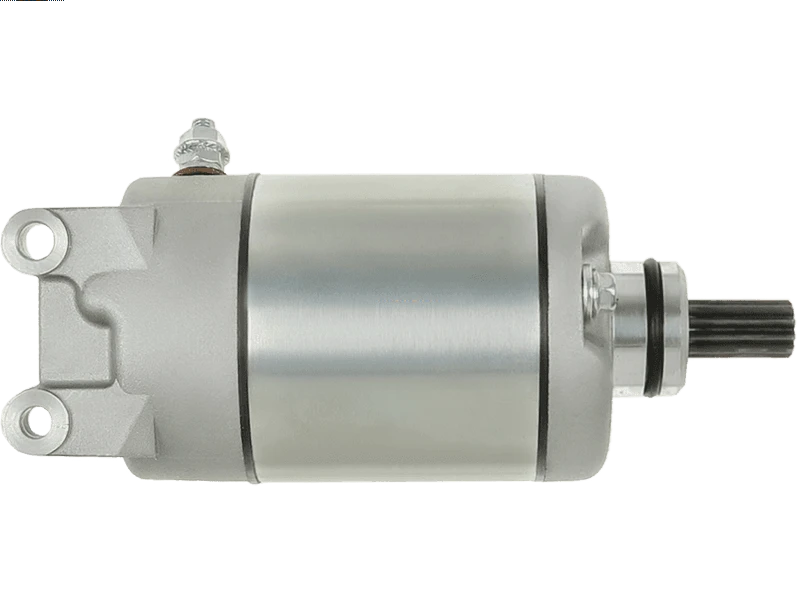

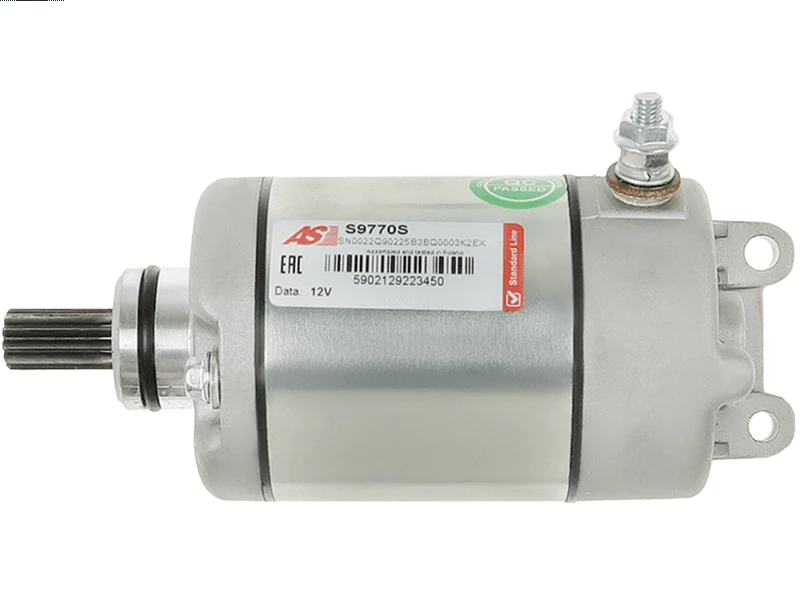

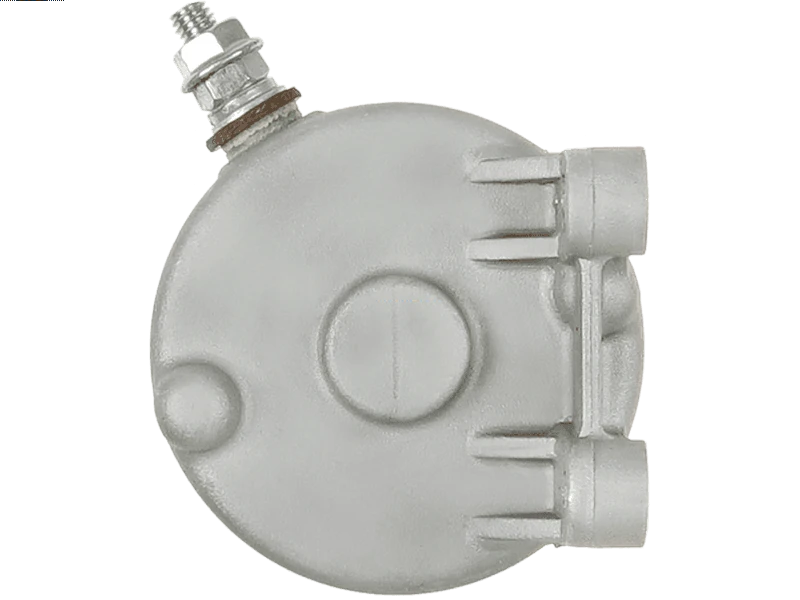

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 138.81 including GST
NZ$ 120.70 excluding GST
or four payments of $34.70
with
Learn More
each
S9770S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 168 mm |
| Mount Hole Center - Center (O.1) | 38 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| POLARIS | Sportsman 550 | [549cc] | 01.2011-12.2013 |
| POLARIS | Sportsman 550 | [549cc] | 01.2011-12.2014 |
| POLARIS | Sportsman 550 EPS | [549cc] | 01.2010-12.2012 |
| POLARIS | Sportsman 550 EPS | [549cc] | 01.2010-12.2014 |
| POLARIS | Sportsman 550 X2 | [549cc] | 01.2010-12.2014 |
| POLARIS | Sportsman 550 X2 EPS | [549cc] | 01.2014-12.2014 |
| POLARIS | Sportsman 550 XP | [549cc] | 01.2009-12.2010 |
| POLARIS | Sportsman 550 XP EPS | [549cc] | 01.2009-12.2009 |
| POLARIS | Sportsman 550 XP EPS | [549cc] | 01.2012-12.2012 |
| POLARIS | Sportsman 550 XP HD | [549cc] | 01.2013-12.2014 |
Reference Information
| 10439099 | ALANKO |
| 106-10416 | ROBERT'S |
| 19089 | LESTER |
| 19089N | WAI / TRANSPO |
| 309-0221 | POLARIS |
| 439099 | ALANKO |
| 71-26-19089 | WILSON |
| SMU0491 | ARROWHEAD |
| UD19222S | AS-PL |
