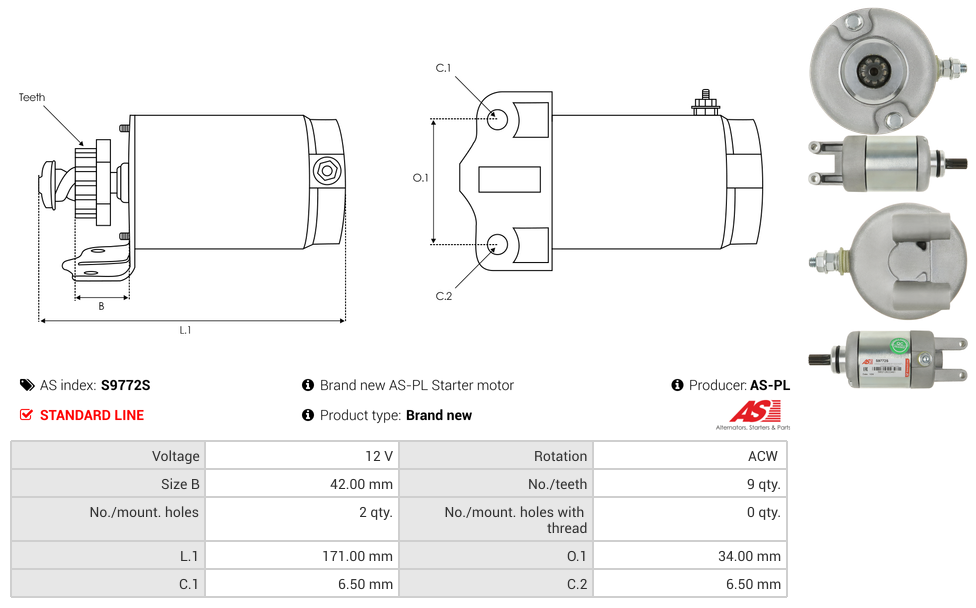

Specifications
Length (L.1) | 171 mm |
Mount Hole Center - Center (O.1) | 34 mm |
Mount Hole Diameter (C.1) | 6.50 mm |
Mount Hole Diameter (C.2) | 6.50 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 9 qty |
OEM Product | No |
Pinion at Rest (B) | 42 mm |
Product Line | Standard Line |
Product Type | Brand new |
Rotation | ACW |
Unit Type | MITSUBA |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
YAMAHA | FZ6 | [599cc] | 01.2004-12.2008 |
YAMAHA | YZF-R6 | [599cc] | 01.1999-12.2005 |
YAMAHA | YZF-R6S | [599cc] | 01.2006-12.2008 |
Reference Information
10439178 | ALANKO |
108720 | FARCOM |
18763 | LESTER |
18763N | WAI / TRANSPO |
255791 | KUHNER |
439178 | ALANKO |
5EB-81890-00 | YAMAHA |
5EB-81890-00-00 | YAMAHA |
71-26-18763 | WILSON |
SMU0210 | ARROWHEAD |
UD19221S | AS-PL |
Video/Publications
