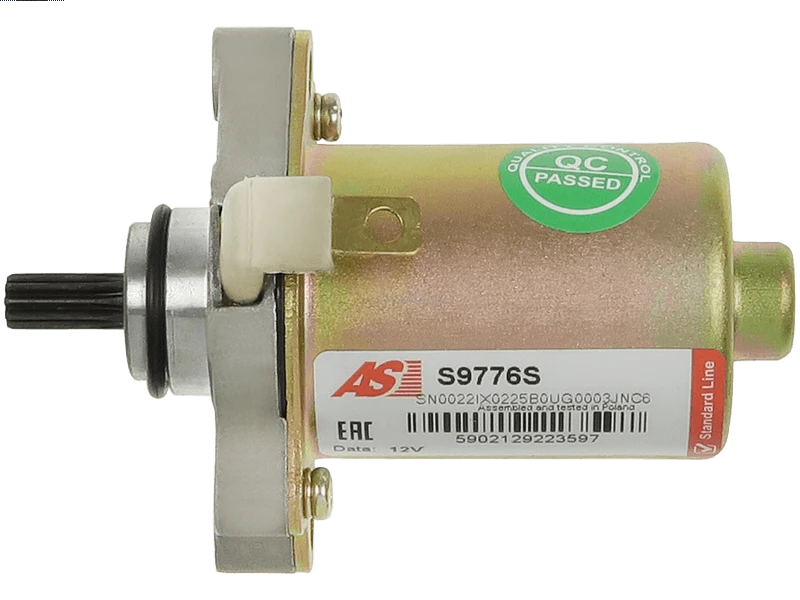

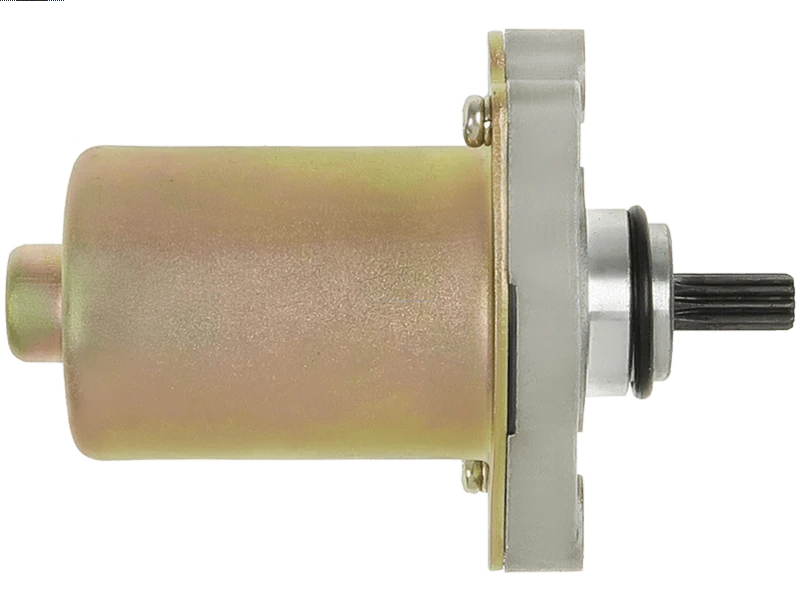

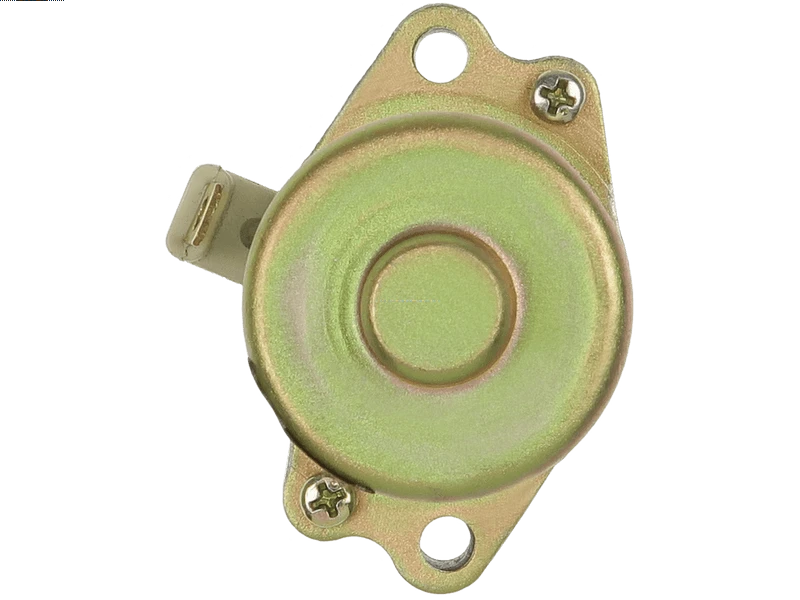

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 60.49 including GST
NZ$ 52.60 excluding GST
or four payments of $15.12
with
Learn More
each
S9776S
1
Specifications
| Length (L.1) | 99.50 mm |
| Mount Hole Center - Center (O.1) | 56 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | LT-Z50 Quadsport | [49cc] | 01.2006-12.2009 |
Reference Information
| 10439076 | ALANKO |
| 108694 | FARCOM |
| 116073 | CARGO |
| 180.018.103.190 | PSH |
| 19630 | LESTER |
| 19630N | WAI / TRANSPO |
| 255373 | KUHNER |
| 31100-22G00 | SUZUKI |
| 31100-22G10 | SUZUKI |
| 31100-36C02-000 | SUZUKI |
| 3113502 | HENKEL PARTS |
| F032116073 | CARGO |
| SMU0420 | ARROWHEAD |
| STR76000 | WOODAUTO |
| UD18998S | AS-PL |
| WOOSTR76000 | WOODAUTO |
