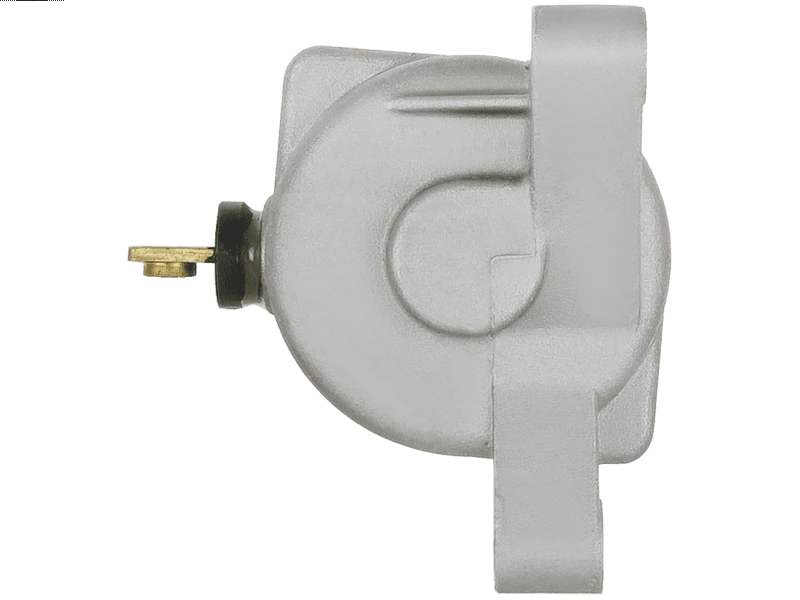

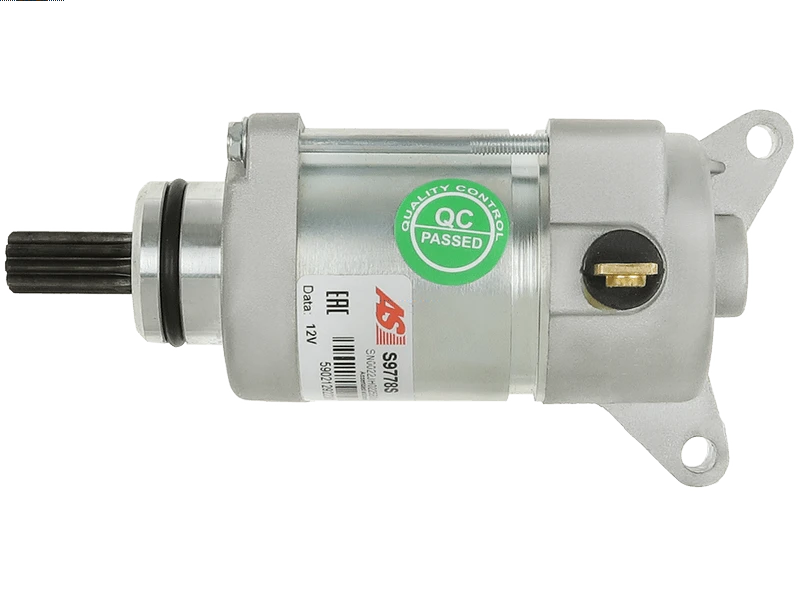

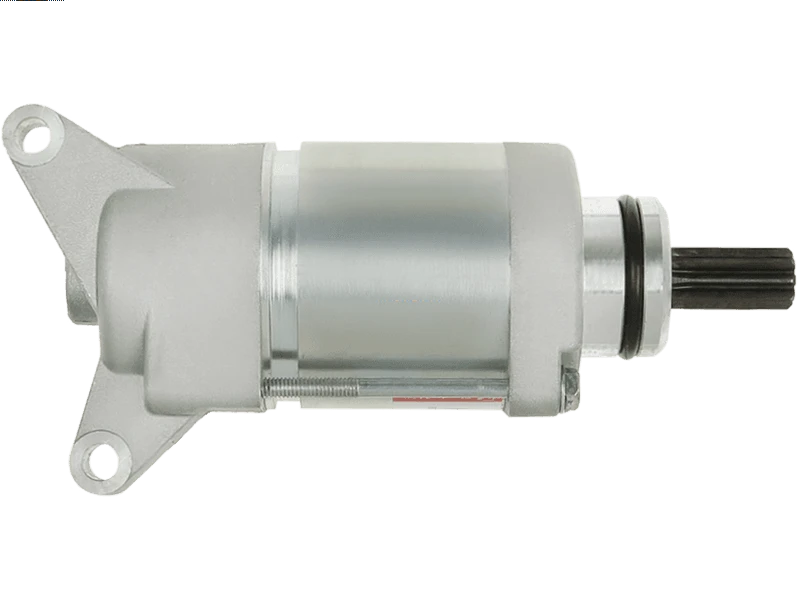

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 185.63 including GST
NZ$ 161.42 excluding GST
or four payments of $46.41
with
Learn More
UOM:
each
Product Code:
S9778S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0 kW |
| Length (L.1) | 145 mm |
| Mount Hole Center - Center (O.1) | 59 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | WR 450 F | 01.2001-12.2007 | |
| YAMAHA | WR 450 F | 01.2003-01.2009 | |
| YAMAHA | WR 450 F | 01.2006- |
Reference Information
| 16075 | LESTER |
| 16075N | WAI / TRANSPO |
| 255588 | KUHNER |
| 5TJ-81890-30-00 | YAMAHA |
| SMU0455 | ARROWHEAD |
| UD19018S | AS-PL |
