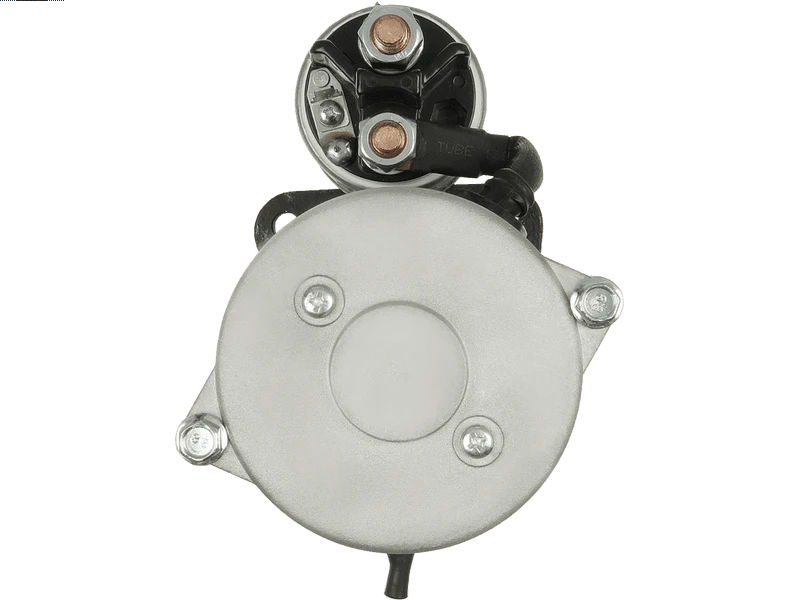

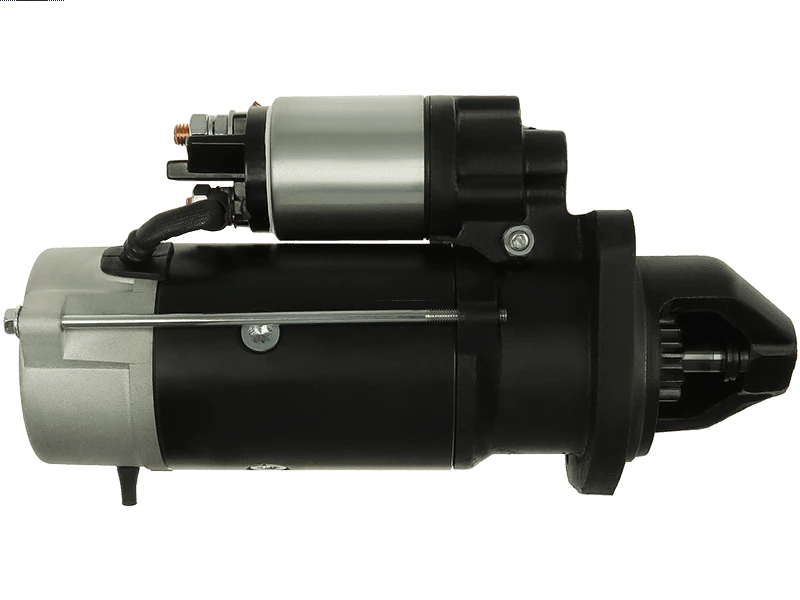

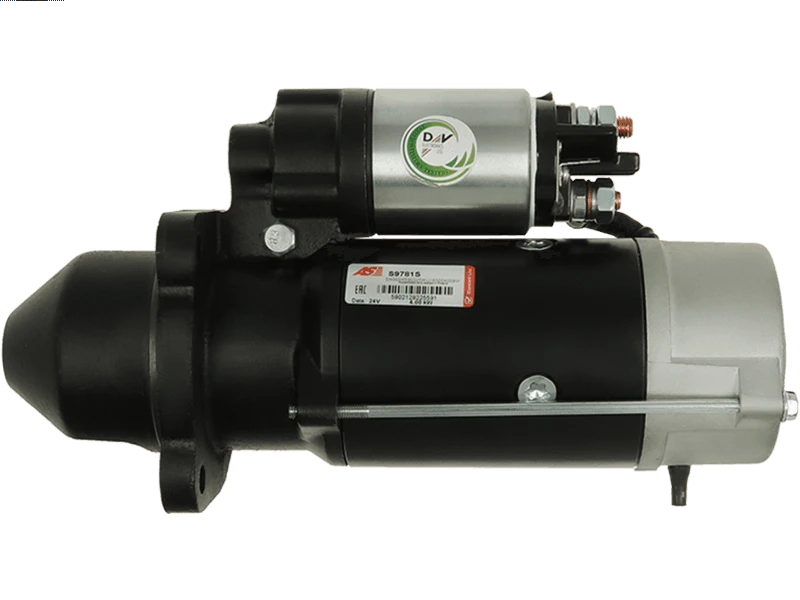

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 548.17 including GST
NZ$ 476.67 excluding GST
or four payments of $137.04
with
Learn More
each
S9781S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
IS1341Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 322 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 621D | 01.2003- | |
| IVECO | Engine 3.9 | ||
| NEW HOLLAND | E215B | 01.2007- | |
| NEW HOLLAND | LW110B | 01.2005- | |
| NEW HOLLAND | LW130B | 01.2005- |
Reference Information
| 0001231026 | BOSCH |
| 0001231027 | BOSCH |
| 0001251005 | BOSCH |
| 0001251005RR | RNL |
| 0001251006 | BOSCH |
| 0001263019 | BOSCH |
| 0001263019RR | RNL |
| 0001263020 | BOSCH |
| 011-001-000638R | REMANTE |
| 063522310260 | MAGNETI MARELLI |
| 063522630200 | MAGNETI MARELLI |
| 0986025530 | BOSCH |
| 106263 | FARCOM |
| 11.132.094 | ISKRA / LETRIKA |
| 114196 | CARGO |
| 120-20195 | ROBERT'S |
| 19084220 | DELCO |
| 19084401 | DELCO |
| 19400N | WAI / TRANSPO |
| 19796N | WAI / TRANSPO |
| 20401086BN | REAL |
| 20401086OE | REAL |
| 220751 | ERA |
| 254204 | KUHNER |
| 254204B | KUHNER |
| 260-23217 | DIXIE |
| 2852405 | CASE |
| 2852478 | NEW HOLLAND |
| 3118964 | HENKEL PARTS |
| 3118967 | HENKEL PARTS |
| 331896 | LOGISTIK |
| 332054M | MEC DIESEL |
| 45-4203 | ELSTOCK |
| 500389863 | IVECO |
| 501.505.103.011 | PSH |
| 501.505.103.012 | PSH |
| 501.505.103.019 | PSH |
| 501.505.103.090 | PSH |
| 501.505.103.212 | PSH |
| 501.505.103.213 | PSH |
| 501.505.103.215 | PSH |
| 501.505.103.280 | PSH |
| 501.505.103.310 | PSH |
| 501.505.103.340 | PSH |
| 501.505.103.380 | PSH |
| 504036695 | IVECO |
| 504385577 | IVECO |
| 5110046 | MEAT & DORIA |
| 5110046G | MEAT & DORIA |
| 5801577136 | IVECO |
| 6010680.0 | SANDO |
| 6010680.1 | SANDO |
| 72735867 | MAHLE |
| 8095 | CEVAM |
| 84377568 | NEW HOLLAND |
| 861084 | PRESTOLITE |
| 88213991 | POWERMAX |
| AC-CBS1536 | ACAUTO |
| ANM12247X | ANDEL |
| AZF4295 | ISKRA / LETRIKA |
| BOS0001251006 | WOODAUTO |
| CGB-21027 | AINDE |
| CGB-31026 | AINDE |
| CS1536 | HC PARTS |
| CST10680AS | CASCO |
| CST10680GS | CASCO |
| DRS0027 | DELCO |
| DS1137 | DELCO |
| F032114196 | CARGO |
| H5110046G | HOFFER |
| IS1341 | ISKRA / LETRIKA |
| LRS02531 | LUCAS |
| LRS2531 | LUCAS |
| MAHMS239 | WOODAUTO |
| MAV126770 | SIOM |
| MAV126800 | SIOM |
| MS239 | MAHLE |
| MSN2047 | MAGNETI MARELLI |
| MSN2118 | MAGNETI MARELLI |
| PRE861084 | WOODAUTO |
| PRSL260 | 3EFFE |
| RNL231026 | RNL |
| RNL231026P | RNL |
| RNL231027 | RNL |
| RNL263019 | RNL |
| S24BH0049 | SIDAT |
| S24BH0049A2 | SIDAT |
| S5015L | PRESTOLITE |
| SEG0001251006 | WOODAUTO |
| STB4196 | KRAUF |
| STM1268 | ROLLCO |
| STR10197 | ELECTROLOG |
| STR1564 | ELECTROLOG |
| STR1565 | ELECTROLOG |
| STR50211 | WOODAUTO |
| STR50589 | WOODAUTO |
| STR60716 | WOODAUTO |
| STR79349 | ELECTROLOG |
| STRL260 | 3EFFE |
| TS-6217 | DIXIE |
| UD102308S | AS-PL |
| WOOSTR50589 | WOODAUTO |
| WOOSTR60716 | WOODAUTO |
Video/Publications
