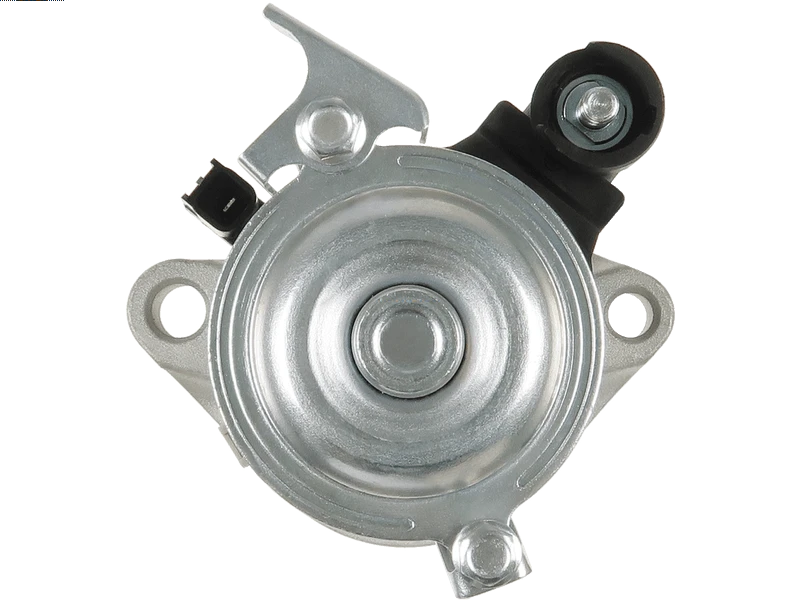

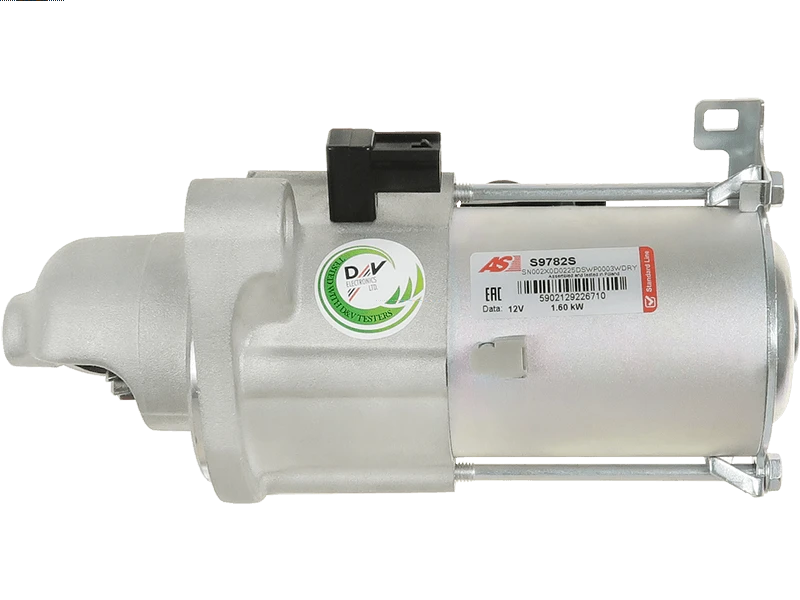

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 363.16 including GST
NZ$ 315.79 excluding GST
or four payments of $90.79
with
Learn More
each
S9782S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Information
SM750-09Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 228 mm |
| Mount Hole Center - Center (O.1) | 110 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 16 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Civic 1.5 VTEC | [L15B7] | 02.2017-12.2022 |
| HONDA | Civic 1.5 VTEC | [L15B7] | 08.2016-12.2022 |
| HONDA | Civic 1.5 VTEC | [L15BB] | 08.2016-12.2022 |
| HONDA | CR-V 1.5 AWD | [L15BE] | 12.2016- |
| HONDA | CR-V 1.5 AWD | [L15BG] | 12.2016- |
| HONDA | CR-V 1.5 AWD | [L15BH] | 12.2016- |
| HONDA | CR-V 1.5 AWD | [L15BY] | 12.2016- |
| HONDA | CR-V 1.5 VTEC | [L15BY] | 08.2017- |
| HONDA | CR-V 1.5 VTEC AWD | [L15BY] | 08.2017- |
| HONDA | HR-V 1.5 i-VTEC | [L15BY] | 04.2019- |
Reference Information
| 11040971 | EUROTEC |
| 116942 | CARGO |
| 120.029.162.190 | PSH |
| 16434N | WAI / TRANSPO |
| 25-5399 | ELSTOCK |
| 31200-59B-014 | HONDA |
| 31200-5AA-A01 | HONDA |
| 31200-5AA-A02 | HONDA |
| 322089162 | DRI |
| 91-26-2180 | WILSON |
| 9816 | CEVAM |
| F032116942 | CARGO |
| LRS04237 | LUCAS |
| LRS4237 | LUCAS |
| SM750-08 | MITSUBA |
| SM750-09 | MITSUBA |
| ST02856 | TMI |
| STU3158 | KRAUF |
| UD102269S | AS-PL |
