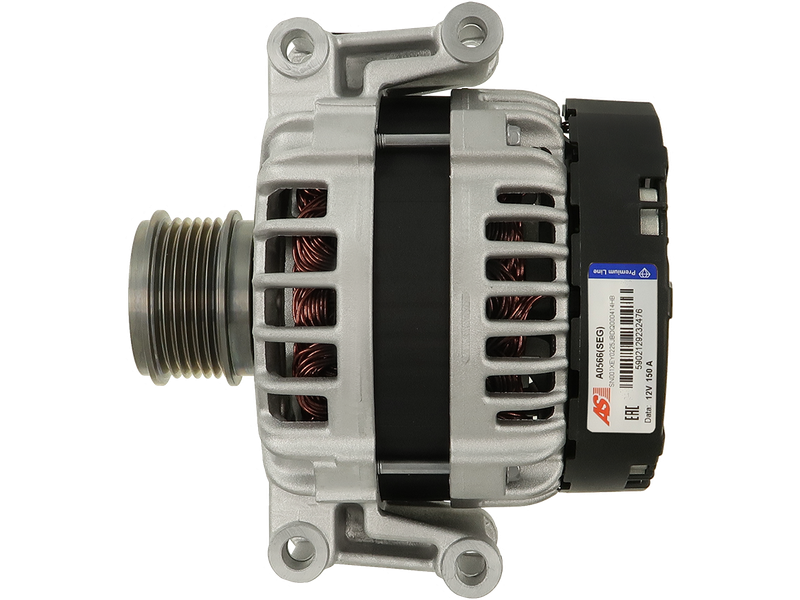

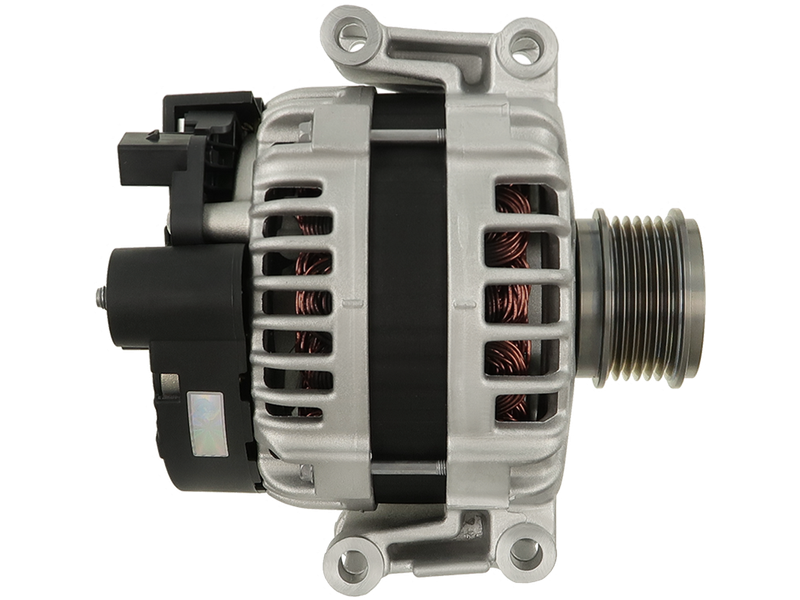

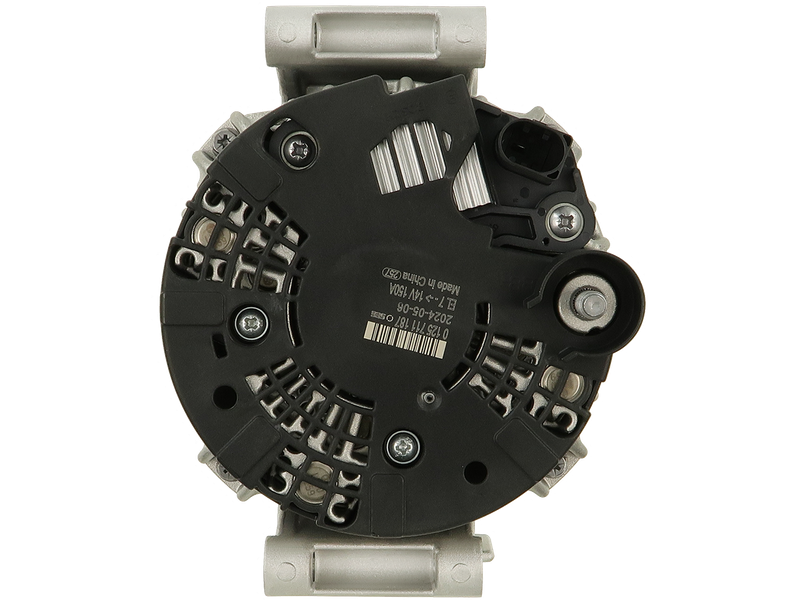

Brand new OEM SEG Alternator
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 772.74 including GST
NZ$ 671.95 excluding GST
or four payments of $193.19
with
Learn More
each
A0566(SEG)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0125711188Specifications
| Amp | 150 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | Yes |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A5 1.8 TFSi | [CJED] | 09.2014-01.2017 |
| AUDI | A5 1.8 TFSi | [CJEE] | 05.2015-01.2017 |
| AUDI | A5 2.0 TFSi | [CNCE] | 08.2015-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CNCE] | 08.2015-01.2017 |
| AUDI | Q5 2.0 TFSi Quattro | [CDNB] | 08.2009- |
| AUDI | Q5 2.0 TFSi Quattro | [CNCB] | 08.2009- |
| AUDI | Q5 2.0 TFSi Quattro | [CNCE] | 08.2015- |
Reference Information
| 0125711044 | BOSCH |
| 0125711051 | BOSCH |
| 0125711090 | BOSCH |
| 0125711127 | BOSCH |
| 0125711128 | BOSCH |
| 0125711151 | BOSCH |
| 0125711187 | BOSCH |
| 0125711188 | BOSCH |
| 06H903017J | VW |
| 06H903017JX | VW |
| 06H903017T | VW |
| 06H903017TX | VW |
| 06H903017X | VW |
| 06H903018H | VW |
| 06H903018HX | VW |
| 06H903018J | VW |
| 06H903018JX | VW |
| 06H903018P | VW |
| 06H903018PX | VW |
| 0986083150 | BOSCH |
| 10444285 | ALANKO |
| 11157 | DELCO |
| 11444285 | ALANKO |
| 116201 | CARGO |
| 11725N | WAI / TRANSPO |
| 12090694 | EUROTEC |
| 13266 | MAPCO |
| 20010474OV | ITAB AUTOMOTIVE |
| 2010004.1 | SANDO |
| 20101400OE | REAL |
| 20101474OE | REAL |
| 2010474.1 | SANDO |
| 205.545.150.010 | PSH |
| 205.545.150.014 | PSH |
| 205.545.150.211 | PSH |
| 205.545.150.280 | PSH |
| 209254 | ERA |
| 2115241502 | DRI |
| 28-7517 | ELSTOCK |
| 3114993 | HENKEL PARTS |
| 40394 | CEVAM |
| 426ST75 | STARTCAR |
| 442417 | LOGISTIK |
| 443301 | VALEO |
| 444206 | VALEO |
| 554171RI | KUHNER |
| 554171RIB | KUHNER |
| 57426 | EAI |
| 6.8062.1 | IKA |
| 8EL015637-071 | HELLA |
| A131.868 | PSH |
| A146.418 | PSH |
| A-6644 | DIXIE |
| AEK3907 | AUTOELECTRO |
| AL03472 | TMI |
| ALB0461 | KRAUF |
| ALT10222 | ELECTROLOG |
| ALT10770 | WOODAUTO |
| ALT120040 | SIOM |
| ALT1923 | ELECTROLOG |
| ALTE313 | 3EFFE |
| AU8076 | SNRA |
| BOS0125711044 | WOODAUTO |
| CAL10004GS | CASCO |
| CAL10474GS | CASCO |
| CGB-87517 | AINDE |
| DRA1029 | DELCO |
| DRA1397 | DELCO |
| F032116201 | CARGO |
| G100869 | BTS TURBO |
| G100870 | BTS TURBO |
| G101143 | BTS TURBO |
| IR6379 | PROTECH |
| L50640 | ATL AUTOTECHNIK |
| LRA03907 | LUCAS |
| LRA3907 | LUCAS |
| PRAE313 | 3EFFE |
| QRA3419 | QUINTON HAZELL |
| RNL711044 | RNL |
| SEG0125711044 | WOODAUTO |
| TT12708 | TESLA |
| UD17379(SEG)A | AS-PL |
| WG2011212 | WILMINK GROUP |
| WOOALT10770 | WOODAUTO |
