Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 667.87 including GST
NZ$ 580.76 excluding GST
or four payments of $166.97
with
Learn More
each
A5567S
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A2TX4581Associated Numbers
EB3Z10346L / EB3T10300EC / EB3Z10346J / EB3T10300EB / EB3T10300EA

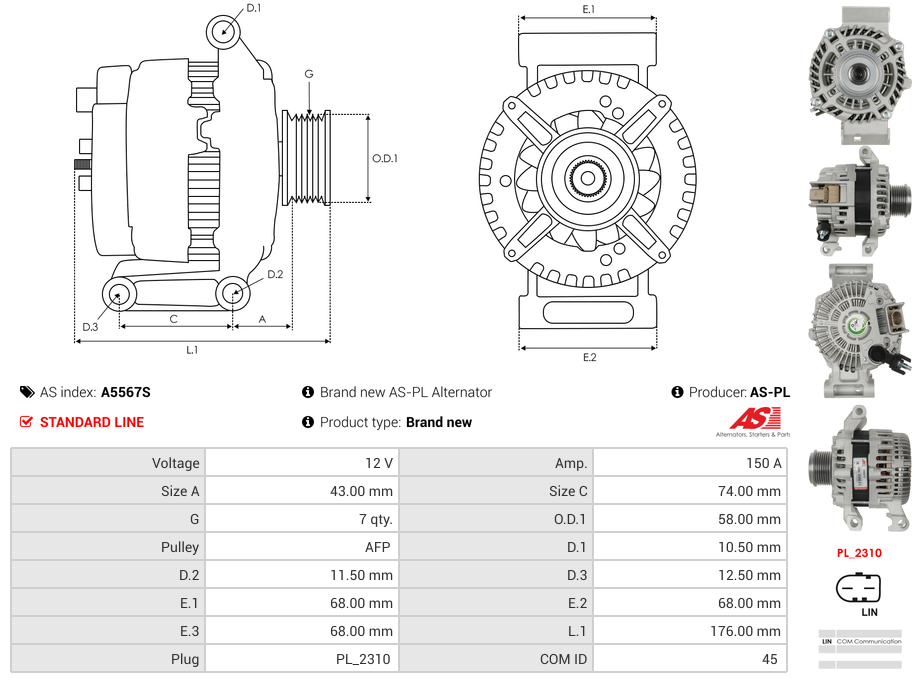

Specifications
| Amp | 150 A |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 176 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 68 mm |
| Pad mount thickness (E.2) | 68 mm |
| Pad mount thickness (E.3) | 68 mm |
| Plug Code | PL_2310 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Ranger 2.2 TDCi | [ENPF] | 04.2011- |
| FORD | Ranger 2.2 TDCi | [ENQJ] | 11.2011- |
| FORD | Ranger 2.2 TDCi | [ENQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi | [GBVAJPF] | 04.2011- |
| FORD | Ranger 2.2 TDCi | [GBVAJQJ] | 05.2015- |
| FORD | Ranger 2.2 TDCi | [GBVAJQJ] | 11.2011- |
| FORD | Ranger 2.2 TDCi | [GBVAJQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi | [T22DD0P] | 05.2015- |
| FORD | Ranger 2.2 TDCi 4x4 | [ENQJ] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [ENQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [GBVAJQJ] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [GBVAJQJ] | 05.2015- |
| FORD | Ranger 2.2 TDCi 4x4 | [GBVAJQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [T22DD0P] | 05.2015- |
| FORD | Ranger 3.2 TDCi 4x4 | [ENSA] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SA2R] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SA2S] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SA2W] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SAFA] | 04.2011- |
Reference Information
| 20035449OV | ITAB AUTOMOTIVE |
| 20137944OE | REAL |
| 2035449.1 | SANDO |
| 2193391502 | DRI |
| 2212497 | FORD |
| 2501109 | FORD |
| 28-8583 | ELSTOCK |
| 442759 | LOGISTIK |
| 556351RI | KUHNER |
| 595.334.150.130 | PSH |
| A002TX4581 | MITSUBISHI |
| A002TX4581ZT | MITSUBISHI |
| A002TXA281 | MITSUBISHI |
| A002TXA281ZT | MITSUBISHI |
| A2TX4581 | MITSUBISHI |
| A2TX4581ZT | MITSUBISHI |
| A2TXA281 | MITSUBISHI |
| A2TXA281ZT | MITSUBISHI |
| AL04349 | TMI |
| ALM3272 | KRAUF |
| ALT5471 | ELECTROLOG |
| AMI449 | AUTOTEAM |
| CAL35449GS | CASCO |
| EB3T-10300-EA | FORD |
| EB3T-10300-EB | FORD |
| EB3T-10300-EC | FORD |
| LRA04474 | LUCAS |
| LRA4474 | LUCAS |
| UD102324A | AS-PL |
Video/Publications
A5567SView your shopping basket or Browse other items in Alternators.
