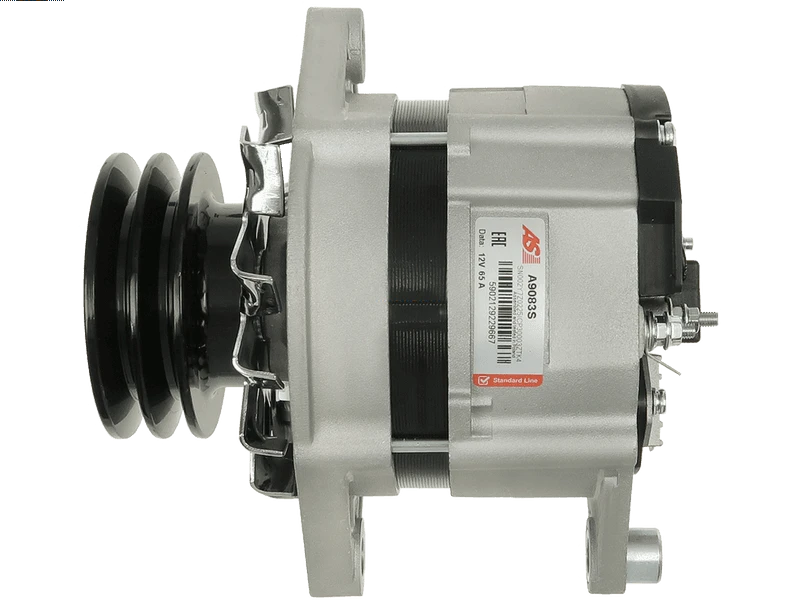

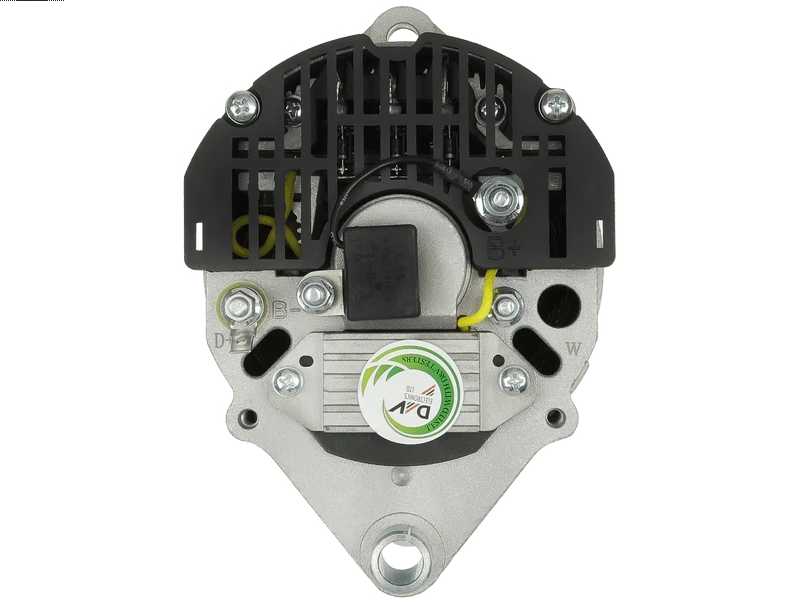

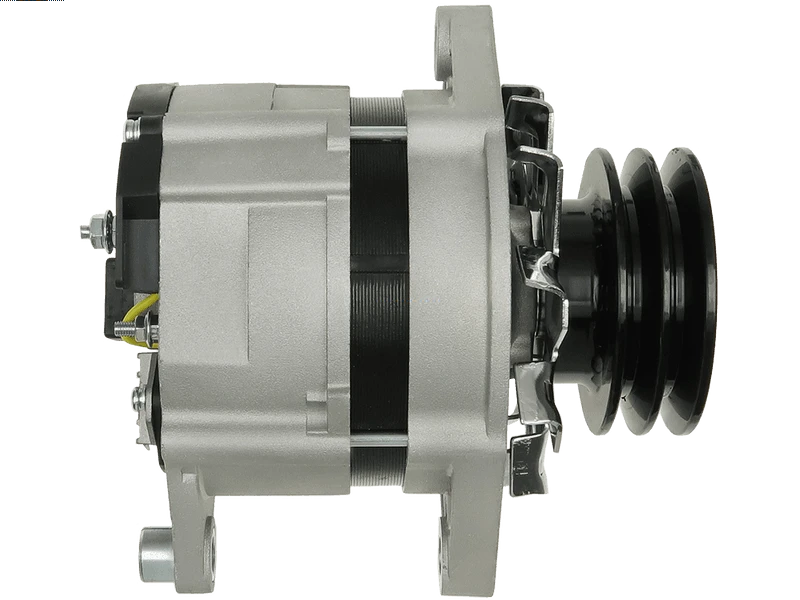

A9083S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS GROUP NZ
SKU: A9083S
Price: 323.99 NZD
Availability: SoldOut

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

ISKRA / LETRIKA

Price:

NZ$ 323.99 including GST

NZ$ 281.73 excluding GST

or four payments of $81.00 with
Learn More

UOM:

each

Product Code:

A9083S

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

No stock in NZ - Call us for possible procurement options

Information
Specifications
Vehicle Applications
Reference Information
Video/Publications

11.201.329

Amp	65 A
Bottom Mounting Foot Width (B)	17 mm
Diameter (D.1)	10.50 mm
Diameter (D.2)	12.50 mm
Diameter (D.3)	12.50 mm
Length (L.1)	190 mm
Mount Inside Length or Pad Mount C-C (C)	72.50 mm
OEM Product	No
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	2 qty
Pulley Groove Width (W.1)	9.50 mm
Pulley Outside Diameter (O.D.1)	68 mm
Pulley Outside Diameter (O.D.2)	93 mm
Pulley to Mount Distance (A)	59 mm
Pulley Type	Solid
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Make	Model	Type	Year
AGRIFULL	100 5.4	[8065.06.200]	05.1987-
AGRIFULL	100 5.4	[8065.06.300]	05.1987-
AGRIFULL	100 DT 5.4	[8065.06.200]	05.1987-
AGRIFULL	100 DT 5.4	[8065.06.300]	05.1987-
AGRIFULL	110 5.9	[8065.05.220]	05.1987-
AGRIFULL	110 DT 5.9	[8065.05.220]	05.1987-
AGRIFULL	140 5.9	[8065.25.000]	05.1987-
AGRIFULL	140 DT 5.9	[8065.25.000]	05.1987-
AGRIFULL	90 4.9	[8055.05.200]	05.1987-
AGRIFULL	90 DT 4.9	[8055.05.200]	05.1987-
AGRIFULL	F100 5.9	[8065.06A.330]	11.1993-
AGRIFULL	F120 5.9	[8065.05B.330]	11.1993-
FIAT	100.9	[8065.06.200]	05.1987-08.1988
FIAT	100.90	[8065.06.200]	05.1987-08.1988
FIAT	100.90 DT	[8065.06.200]	05.1987-08.1988
FIAT	115.9	[8065.05.000]	05.1987-08.1988
FIAT	115.90	[8065.05.000]	05.1987-08.1988
FIAT	115.90 DT	[8065.05.000]	05.1987-08.1988
FIAT	1180
FIAT	1180 DR
FIAT	1280
FIAT	1280 DT
FIAT	130.9	[8065.05.000]	05.1987-08.1988
FIAT	130.90	[8065.05.000]	05.1987-08.1988
FIAT	130.90 DT	[8065.05.000]	05.1987-08.1988
FIAT	132 2500 D	[8144.61]	03.1978-03.1979
FIAT	140.9	[8065.25.000]	05.1985-08.1988
FIAT	140.90	[8065.25.000]	05.1985-08.1988
FIAT	140.90 DT	[8065.25.000]	05.1985-08.1988
FIAT	580	[8035.04.270]	12.1977-04.1982
FIAT	580 DT	[8035.04.270]	12.1977-04.1982
FIAT	680
FIAT	680 DT
FIAT	780	[8045.04.270]	01.1975-02.1987
FIAT	780 DT	[8045.04.270]	01.1975-02.1987
FIAT	880.5
FIAT	880.5 DT
FIAT	90.9
FIAT	90.90
FIAT	90.90 DT
FIAT	95.55
FIAT	955 C
FIAT	980 DT
FIAT	Argenta 2.5 D D	[8144.61]	06.1987-05.1983
FIAT	Argenta 2.5 TD	[8144.81]	06.1983-11.1985
FIAT	F100 5.9	[8065.06A.330]	11.1993-
FIAT	F120 5.9	[8065.05B.330]	11.1993-
FIAT	F120 5.9	[8065.06A.330]	11.1993-
FIAT-ALLIS	545 B
FISSORE	Rayton 4x4 2.4 TD	[HR492HIM]	03.1988-
HURLIMANN	H 476 XF DT REV 3.0	[1000.3WT]	05.1991-
HURLIMANN	H 6165 Master DT	[1000.6WTI]	05.1991-
HURLIMANN	H 6190 Master DT 6.0	[1000.6WTIR]	01.1992-12.2001
LAMBORGHINI	115 Formula 6.0	[1000.6W]	12.1989-
LAMBORGHINI	135 Formula 6.0	[1000.6WT]	12.1989-
LAMBORGHINI	165 Racing 6.0	[1000.6WTI]	05.1991-
LAMBORGHINI	190 Racing 6.0	[1000.6WTIR]	01.1992-
LAMBORGHINI	660 Agile 3.0	[1000.3A]	01.1986-12.1997
LAMBORGHINI	775 F Plus 3.0	[1000.3WT]	05.1991-
LANCIA	Thema 2.5 DT	[8144.91.2200]	11.1984-05.1992
LANCIA	Thema 2.5 DT	[8144.97]	01.1993-11.1994
LANCIA	Thema 2.5 DT	[8144.97.2200]	11.1984-05.1992
LANCIA	Thema 2.5 DT SW	[8144.97]	01.1993-11.1994
LAVERDA	3790 8.1	[8361SI10.00]	06.1985-
LAVERDA	3850 8.1	[8361S10]	01.1991-
LAVERDA	L 521 H 8.1	[8361SI10]	03.1992-
LAVERDA	L 521 I 8.1	[8361SI10]	03.1992-
LAVERDA	L 624 8.1	[8361.25SR10]	03.1992-
LAVERDA	L 624 H 8.1	[8361.25SR10]	03.1992-
MUZZI	MD 65 6.2	[1056PT]	07.1983-12.1988
MUZZI	MDS 110	[1056PTI]	12.1986-
MUZZI	MDS 44 4.0	[1000.4A]	01.1989-
MUZZI	MDS 54	[1000.4AT]	01.1989-
MUZZI	MDS 72	[1056P]	01.1989-
MUZZI	MDS 90	[1056PS]	01.1989-
SAME	Antares 100	[1000.6A]	03.1989-03.2004
SAME	Antares 100 6.0	[1000.6A]	12.1989-01.2004
SAME	Antares 100 6.0	[1000.6AT]	12.1989-01.2004
SAME	Antares 130 6.0	[1000.6A]	12.1989-01.2004
SAME	Antares 130 6.0	[1000.6AT]	12.1989-01.2004
SAME	Frutteto 60 DR 3.0	[1000.3A]	05.1991-
SAME	Frutteto 75 2RM 3.0	[1000.3AT]	05.1991-
VM	HR 1.8	[329SHTR]	01.1986-

0000004787671	FIAT
0000004849157	FIAT
0004765934	FIAT
0120489212	BOSCH
105.001.065.050	PSH
105.001.065.311	PSH
105.001.065.460	PSH
105.001.065.461	PSH
105.001.065.462	PSH
11.201.329	ISKRA / LETRIKA
113848	FARCOM
12281N	WAI / TRANSPO
20021170OV	ITAB AUTOMOTIVE
20119071OE	REAL
2021170.1	SANDO
2029	CEVAM
282-30209	ROBERT'S
2943925	FIAT
294394900	DEUTZ
3110054	HENKEL PARTS
3110056	HENKEL PARTS
46231758	FIAT
4765931	FIAT
4765933	FIAT
4765934	FIAT
4787668	FIAT
4787671	FIAT
4798447	FIAT
4800504	FIAT
4808506	FIAT
4808510	FIAT
4808511	FIAT
4808517	FIAT
4808518	FIAT
4849157	FIAT
500322771	FIAT
55574	EAI
556043RIM	KUHNER
574ST55	STARTCAR
72735520	MAHLE
77452410	FIAT
90-15-6290	WILSON
AAK4155	ISKRA / LETRIKA
AG0152	GHIBAUDI
AIS170	AUTOTEAM
ALT79065	ELECTROLOG
C000900010060	AGCO
CAL21170GS	CASCO
IA0329	ISKRA / LETRIKA
LEA0593	LE PART
LEA0618	LE PART
MAHMG521	WOODAUTO
MG521	MAHLE
UD102250A	AS-PL
UD30209A	AS-PL

A9083S
