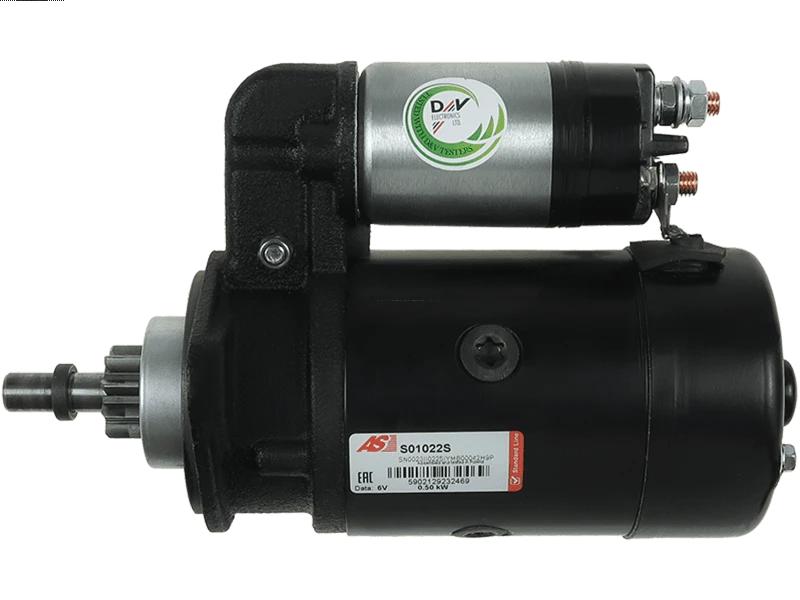

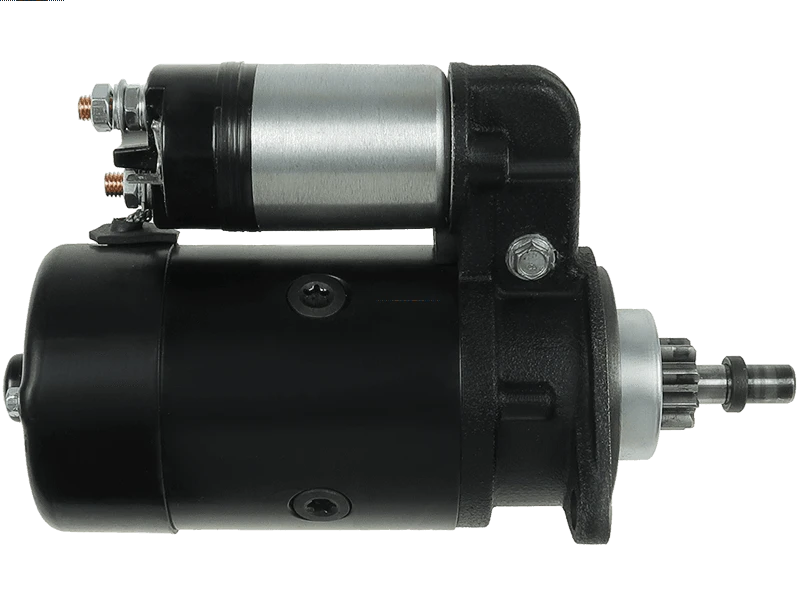

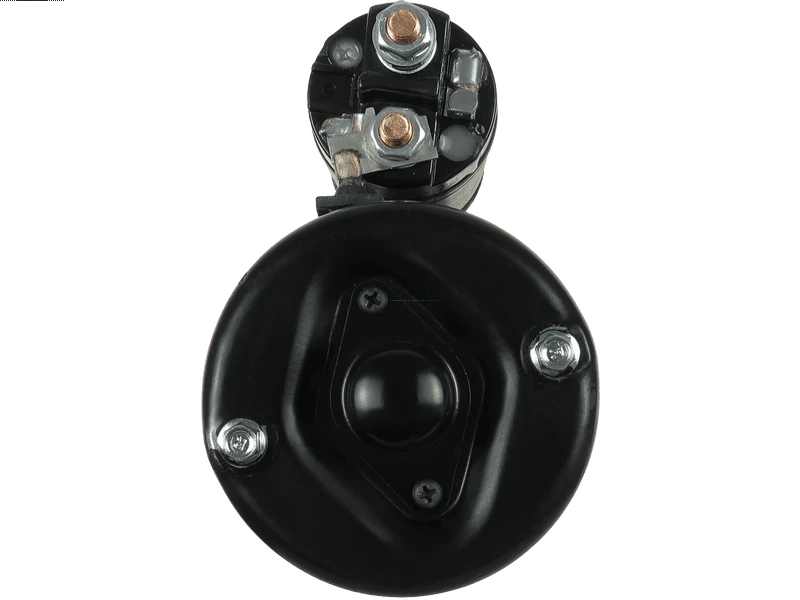

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 390.82 including GST
NZ$ 339.84 excluding GST
or four payments of $97.71
with
Learn More
each
S01022S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001207001Specifications
| Kilowatt | 0.50 kW |
| Length (L.1) | 250 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 32 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 6 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | 1500 1.5 | [K] | 04.1961-07.1973 |
| VW | 1500 1.5 S | [R] | 08.1963-07.1965 |
| VW | 1500 1.6 | [T] | 08.1965-07.1973 |
| VW | 1500 1.6 | [U] | 08.1965-07.1973 |
| VW | 1500 1.6 L | [P] | 07.1964-07.1973 |
| VW | 1500 1.6 L | [T] | 08.1965-07.1973 |
| VW | 1500 1.6 L | [U] | 08.1965-07.1973 |
| VW | 1500 1.6 TL | [T] | 08.1965-07.1973 |
| VW | 1500 1.6 TL | [U] | 08.1965-07.1973 |
| VW | 1600 1.5 | [K] | 04.1961-07.1973 |
| VW | 1600 1.5 S | [R] | 08.1963-07.1965 |
| VW | 1600 1.6 | [T] | 08.1965-07.1973 |
| VW | 1600 1.6 | [U] | 08.1965-07.1973 |
| VW | 1600 1.6 L | [P] | 07.1964-07.1973 |
| VW | 1600 1.6 L | [T] | 08.1965-07.1973 |
| VW | 1600 1.6 L | [U] | 08.1965-07.1973 |
| VW | 1600 1.6 TL | [T] | 08.1965-07.1973 |
| VW | 1600 1.6 TL | [U] | 08.1965-07.1973 |
| VW | Kaefer 1.2 | [M51] | 01.1954-07.1965 |
| VW | Kaefer 1200 1.2 | [D] | 01.1960-12.1985 |
| VW | Transporter 1.2 | [D] | 01.1950-03.1962 |
| VW | Transporter 1.2 | [D] | 02.1962-07.1967 |
| VW | Transporter 1.2 | [D] | 11.1962-08.1966 |
| VW | Transporter 1.2 | [M2] | 01.1950-03.1962 |
| VW | Transporter 1.5 | [G] | 11.1962-08.1966 |
| VW | Transporter 1.5 | [H] | 02.1962-12.1968 |
| VW | Transporter 1.5 | [H] | 06.1966-10.1970 |
| VW | Transporter 1.5 | [H] | 07.1966-07.1967 |
| VW | Transporter 1.6 | [B] | 08.1964-12.1968 |
Reference Information
| 0001201001 | BOSCH |
| 0001205005 | BOSCH |
| 0001205012 | BOSCH |
| 0001207001 | BOSCH |
| 0001207005 | BOSCH |
| 0001310007 | BOSCH |
| 0001310019 | BOSCH |
| 0986010060 | BOSCH |
| 10010349RV | ITAB AUTOMOTIVE |
| 1060R | KUHNER |
| 113911021B | VW |
| 113911021BX | VW |
| 11595 | EAI |
| 131911021 | VW |
| 20401943RC | REAL |
| 300.023.092.010 | PSH |
| 311009096 | DRI |
| 330212 | LOGISTIK |
| 595ST11 | STARTCAR |
| 6010349.2 | SANDO |
| 65-0131 | ELSTOCK |
| 65-0131CT | AINDE |
| 8010060 | FRIESEN |
| 88212691 | POWERMAX |
| A10060 | ATL AUTOTECHNIK |
| CST10349RS | CASCO |
| LRS00246 | LUCAS |
| LRS246 | LUCAS |
| MAV123490R | SIOM |
| S100579 | BTS TURBO |
| S132.490 | PSH |
| STR1222 | ELECTROLOG |
| STX200618 | STARDAX |
| UD90959S | AS-PL |
| VW9069 | SNRA |
