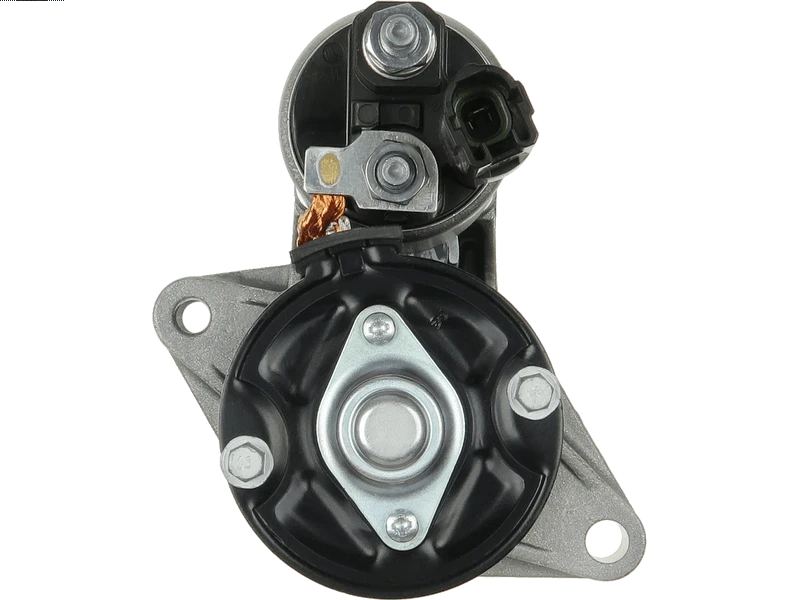

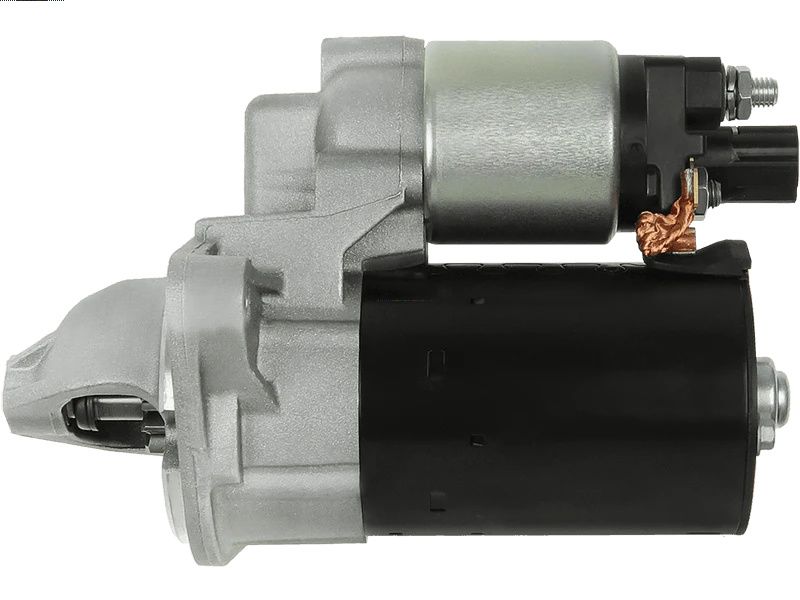

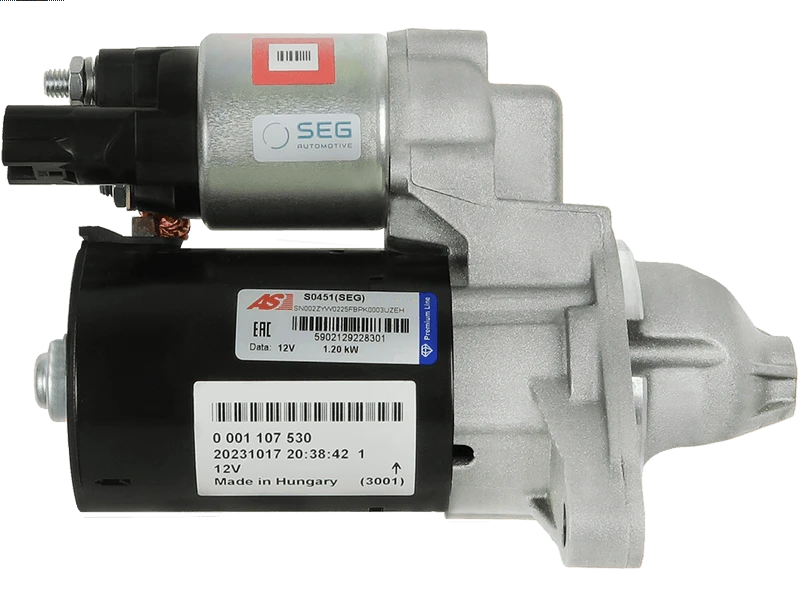

Brand new OEM SEG Starter motor
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 437.36 including GST
NZ$ 380.31 excluding GST
or four payments of $109.34
with
Learn More
each
S0451(SEG)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107530Associated Numbers
16-107 16-107G
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 203 mm |
| Mount Hole Center - Center (O.1) | 122 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 15 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Avensis Estate 1.6 | [1ZR-FAE] | 02.2009- |
| TOYOTA | Avensis Estate 1.8 | [2ZR-FAE] | 02.2009- |
| TOYOTA | Avensis Estate 2.0 | [3ZR-FAE] | 02.2009- |
| TOYOTA | Avensis Estate 2.0 | [3ZR-FE] | 02.2009- |
| TOYOTA | Avensis Saloon 1.6 | [1ZR-FAE] | 11.2008- |
| TOYOTA | Avensis Saloon 1.8 | [2ZR-FAE] | 11.2008- |
| TOYOTA | Avensis Saloon 2.0 | [3ZR-FAE] | 11.2008- |
| TOYOTA | Avensis Saloon 2.0 | [3ZR-FE] | 11.2008- |
| TOYOTA | Verso 1.6 | [1ZR-FAE] | 04.2009- |
| TOYOTA | Verso 1.8 | [2ZR-FAE] | 04.2009- |
Reference Information
| 0001107448 | BOSCH |
| 0001107449 | BOSCH |
| 0001107531 | BOSCH |
| 063280074010 | MAGNETI MARELLI |
| 0986021530 | BOSCH |
| 10040551OV | ITAB AUTOMOTIVE |
| 101450 | KUHNER |
| 101450D | KUHNER |
| 10439643 | ALANKO |
| 106375 | FARCOM |
| 11040701 | EUROTEC |
| 114886 | CARGO |
| 12210 | EAI |
| 190.900.092.010 | PSH |
| 190.900.092.210 | PSH |
| 190.900.092.461 | PSH |
| 1986S00688 | BOSCH |
| 20401934OE | REAL |
| 210ST21 | STARTCAR |
| 220654 | ERA |
| 22.1450 | LAUBER |
| 25-4062 | ELSTOCK |
| 25-4062CT | AINDE |
| 28100-0T010 | TOYOTA |
| 28100-0T030 | TOYOTA |
| 28100-0T03000 | TOYOTA |
| 28100-0T030-84 | TOYOTA |
| 28100-0T030-C | TOYOTA |
| 28100-0T030-F | TOYOTA |
| 28100-0T060 | TOYOTA |
| 28100-37020 | TOYOTA |
| 28100-37021 | TOYOTA |
| 28100-37030 | TOYOTA |
| 28100-37031 | TOYOTA |
| 28100-37032 | TOYOTA |
| 3113902 | HENKEL PARTS |
| 3113903 | HENKEL PARTS |
| 33291N | WAI / TRANSPO |
| 335225092 | DRI |
| 336508 | LOGISTIK |
| 428000-5830 | DENSO |
| 428000-5831 | DENSO |
| 428000-5832 | DENSO |
| 428000-5833 | DENSO |
| 428000-9020 | DENSO |
| 446528 | VALEO |
| 458793 | VALEO |
| 4745003 | NK |
| 5010369G | MEAT & DORIA |
| 600000170170 | MAGNETI MARELLI |
| 6010439.1 | SANDO |
| 8021530 | FRIESEN |
| 803-17191 | IAP QUALITY PARTS |
| 8214085 | POWERMAX |
| 8550504922 | MOTRIO |
| 88214085 | POWERMAX |
| 8EA012528-861 | HELLA |
| 8EA738258-811 | HELLA |
| 90E2007-JPN | JPN |
| 9733 | CEVAM |
| A21530 | ATL AUTOTECHNIK |
| A70-12-21530 | ACKOJA |
| AC-CBS1450 | ACAUTO |
| AEY2390 | AUTOELECTRO |
| ANM23750X | ANDEL |
| ASM1200 | APEC |
| BOS0001107530 | WOODAUTO |
| BST2607 | BORG & BECK |
| CS1450 | HC PARTS |
| CST10439GS | CASCO |
| DENDSN947 | WOODAUTO |
| DRS0674 | DELCO |
| DRT1530 | DELCO |
| DSN947 | DENSO |
| F032114886 | CARGO |
| F042S00275 | BOSCH |
| H5010369 | HOFFER |
| H5010369G | HOFFER |
| IR8853 | PROTECH |
| J5212131 | HERTH+BUSS |
| LRS02390 | LUCAS |
| LRS2390 | LUCAS |
| MSN8074 | MAGNETI MARELLI |
| NEY2390 | AUTOELECTRO |
| NPANSM1200 | NAPA |
| PRSS603 | 3EFFE |
| QRS2478 | QUINTON HAZELL |
| RNL2153 | RNL |
| S12BH0168 | SIDAT |
| S12BH0168A2 | SIDAT |
| SG1079 | GHIBAUDI |
| ST01585 | TMI |
| STB1450 | KRAUF |
| STM1323 | ROLLCO |
| STN1450 | KRAUF |
| STR1694 | ELECTROLOG |
| STR50284 | WOODAUTO |
| STRS603 | 3EFFE |
| STX201059 | STARDAX |
| T521A138 | NPS |
| TO9069 | SNRA |
| TT16541 | TESLA |
| UD03923(SEG)S | AS-PL |
| WG2013210 | WILMINK GROUP |
| WOOSTR50284 | WOODAUTO |
