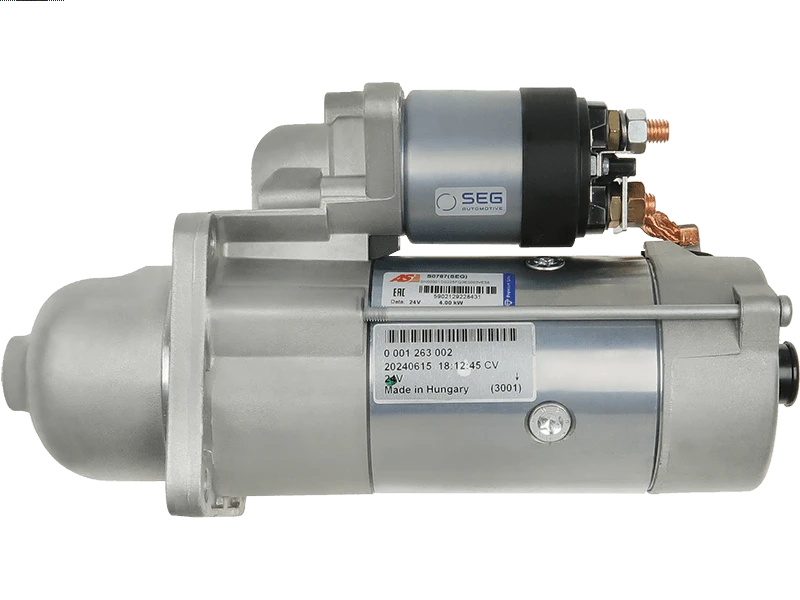

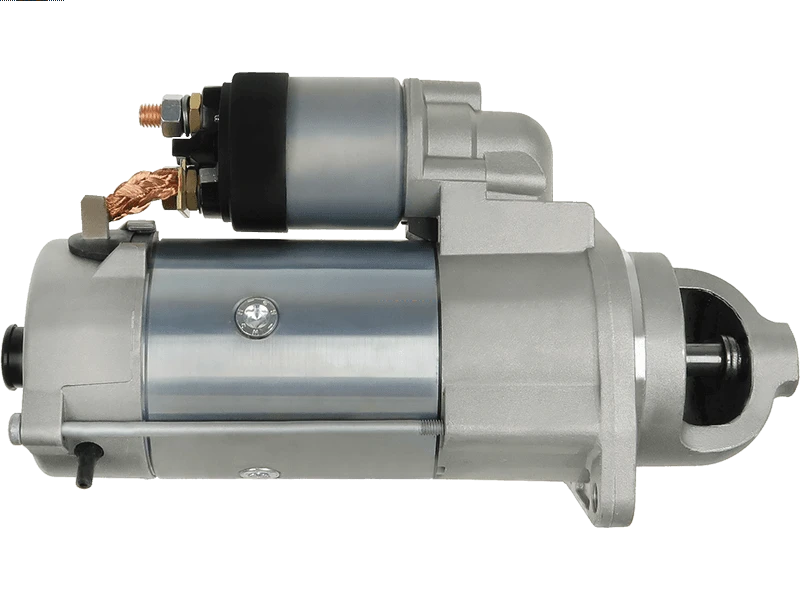

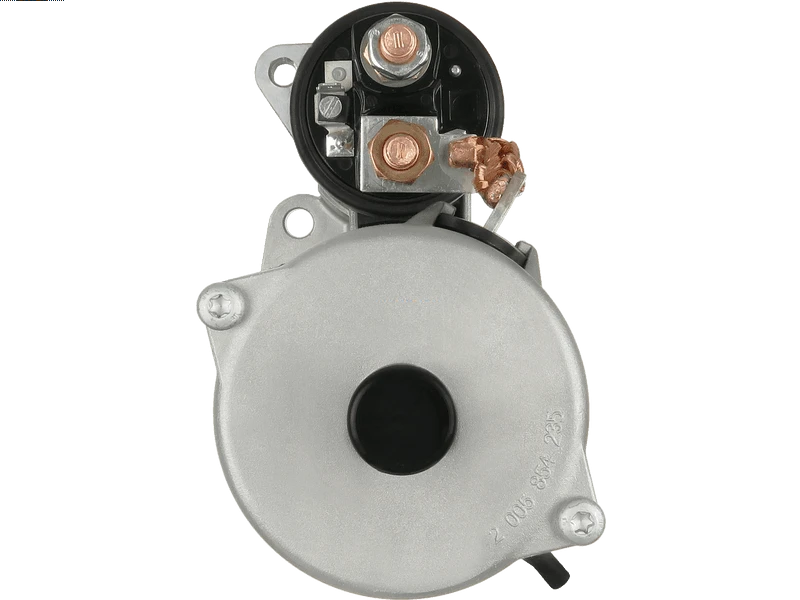

S0787(SEG) - Brand new OEM SEG Starter motor

Brand new OEM SEG Starter motor
Brand new OEM SEG Starter motor
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 1,072.24 including GST

NZ$ 932.38 excluding GST


or four payments of $268.06 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S0787(SEG)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001263002
Kilowatt4 kW
Length (L.1)314 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
OEM ProductYes
Pinion at Rest (B)27 mm
Product LinePremium Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)89 mm
Unit TypeBOSCH
Voltage24 V
Make Model Type Year
DAF CF 65.180 5.9 [CE136C] 01.2001-05.2013
DAF CF 65.220 5.9 [CE162C] 01.2001-05.2013
DAF CF 65.220 6.7 [GR165S1] 05.2006-05.2013
DAF CF 65.250 5.9 [CE184C] 01.2001-05.2013
DAF CF 65.250 6.7 [GR184S1] 05.2006-05.2013
DAF CF 65.280 6.7 [GR210S1] 05.2006-05.2013
DAF CF 65.300 6.7 [GR220] 01.2009-05.2013
DAF LF 45.130 3.9 [BE99C] 12.2005-
DAF LF 45.140 4.5 [FR103S1] 05.2006-
DAF LF 45.150 3.9 [BE110C] 01.2001-
DAF LF 45.160 4.5 [FR118S1] 05.2006-
DAF LF 45.170 3.9 [BE123C] 01.2001-
DAF LF 45.180 4.5 [FR136S1] 05.2006-
DAF LF 45.180 5.9 [CE136C] 01.2001-
DAF LF 45.210 4.5 [FR152] 01.2009-
DAF LF 45.220 5.9 [CE162C] 01.2001-
DAF LF 45.220 6.7 [GR165S1] 05.2006-
DAF LF 45.250 6.7 [GR184S1] 03.2006-
DAF LF 55.180 4.5 [FR136S1] 05.2006-
DAF LF 55.180 5.9 [CE136C] 01.2001-
DAF LF 55.180 5.9 [CE136C] 05.2006-
DAF LF 55.210 4.5 [FR152] 01.2009-
DAF LF 55.220 5.9 [CE162C] 01.2001-
DAF LF 55.220 5.9 [CE162C] 05.2006-
DAF LF 55.220 6.7 [GR165S1] 05.2006-
DAF LF 55.250 5.9 [CE184C] 01.2001-
DAF LF 55.250 5.9 [CE184C] 05.2006-
DAF LF 55.250 6.7 [GR184S1] 05.2006-
DAF LF 55.280 6.7 [GR210S1] 05.2006-
DAF LF 55.290 6.7 [GR210S1] 05.2006-
DAF LF 55.300 6.7 [GR220] 01.2009-
0001231017BOSCH
0001231045BOSCH
0001263001BOSCH
0001263001-RBOSCH
0001263002BOSCH
0001263092BOSCH
01.180.8504.000ST-TEMPLIN
052.262SAMPA
0986021190BOSCH
10010681AVITAB AUTOMOTIVE
10010681OVITAB AUTOMOTIVE
101382KUHNER
101382BKUHNER
101382PKUHNER
10439784ALANKO
105470FARCOM
11021190EUROTEC
11.139.608ISKRA / LETRIKA
113760CARGO
120-20146ROBERT'S
1387381DAF
1387383DAF
1387383RDAF
1528599DAF
1703434DAF
1704911DAF
1704911RDAF
19084017DELCO
19084209DELCO
1986S10074BOSCH
203036VALEO
20401186BNREAL
20401186OEREAL
2165363RDAF
2165364RDAF
30129NWAI
31284NWAI
330527MEC-DIESEL
331788LOGISTIK
438540VALEO
45-3350ELSTOCK
458329VALEO
48969FEBI BILSTEIN
5110025MEAT & DORIA
5.47008DT SPARE PARTS
6010681.0SANDO
6010681.1SANDO
646009104DRI
6.7045.1IKA
72442886MAHLE
7700754853RENAULT
8166CEVAM
8212999POWERMAX
860815PRESTOLITE
8821190FRIESEN
88212999POWERMAX
8EA012586-341HELLA
8EA738258-081HELLA
901.503.103.010WAI
901.503.103.011WAI
901.503.103.018WAI
901.503.103.210WAI
901.503.103.211WAI
901.503.103.213WAI
901.503.103.216WAI
901.503.103.280WAI
901.503.103.310WAI
91201AUGER
A21190ATL AUTOTECHNIK
AC-CBS1382ACAUTO
AELD021LEYLAND
AELF189LEYLAND
AELF405LEYLAND
AFLF189LEYLAND
ALEF189LEYLAND
ANM23410ANDEL
ANM23410XANDEL
AZF4403ISKRA / LETRIKA
BOS0001231017WOODAUTO
BOS0001231045WOODAUTO
BOS0001263001WOODAUTO
BOS0001263002WOODAUTO
BST32048BORG & BECK
CGB-91190AINDE
CS1382HC PARTS
CST10681ASCASCO
CST10681GSCASCO
DRT1190DELCO
DT2300DELCO
F032113760CARGO
IS9460ISKRA / LETRIKA
LES0457LE PART
LRS02176LUCAS
LRS2176LUCAS
M93R3105SEPRESTOLITE
MAV126810SIOM
MS766MAHLE
PRSL2273EFFE
PTC-4023POWER TRUCK
QRS2665QUINTON HAZELL
S135.897WAI
S144.507WAI
S-22124DTS
S24BH0115SIDAT
S24BH0115A2SIDAT
SBO681AUTOTEAM
SBO681AAUTOTEAM
SG0536GHIBAUDI
ST02659TMI
STB1382KRAUF
STR10202ELECTROLOG
STR22124WOODAUTO
STR50673WOODAUTO
STR79695ELECTROLOG
STRL2273EFFE
T001008007SEG AUTOMOTIVE
UD04023(SEG)SAS-PL
WG2045393WILMINK GROUP
WG2192611WILMINK GROUP
S0787(SEG)
