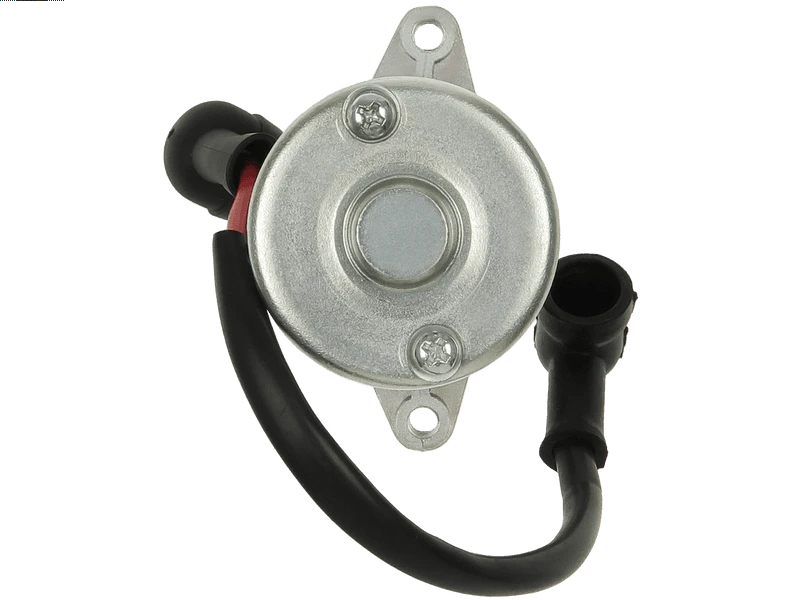

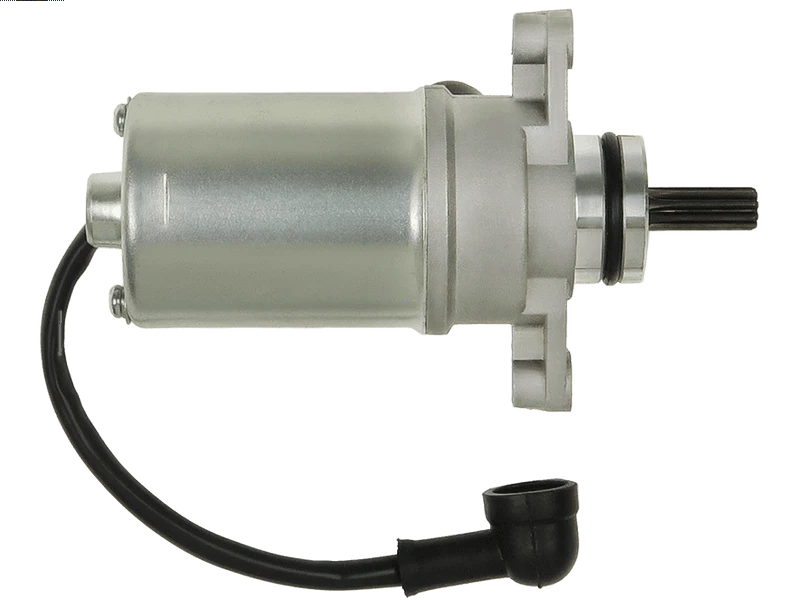

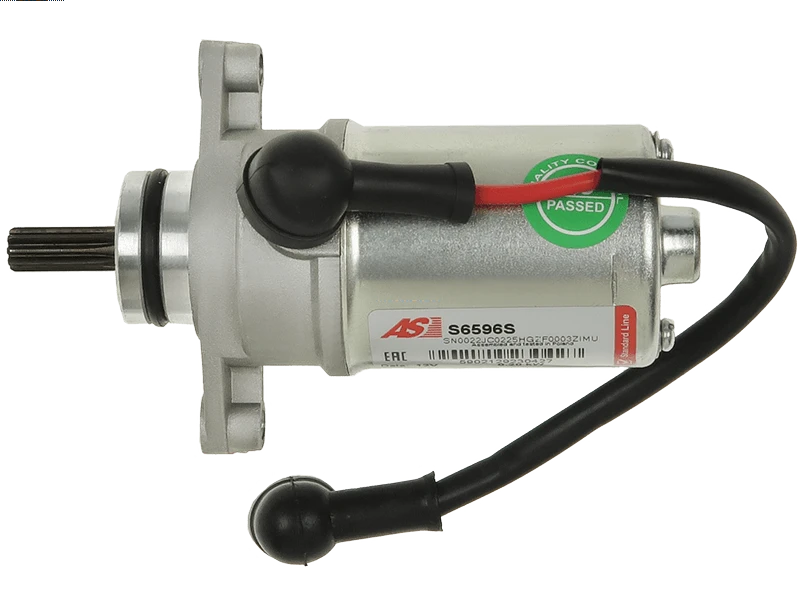

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 67.65 including GST
NZ$ 58.83 excluding GST
or four payments of $16.91
with
Learn More
each
S6596S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.20 kW |
| Length (L.1) | 134 mm |
| Mount Hole Center - Center (O.1) | 70 mm |
| Mount Hole Diameter (C.1) | M6x1.0 mm |
| Mount Hole Diameter (C.2) | M6x1.0 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 30 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | YFM100 Champ | [98cc] | 01.1990-12.1992 |
| YAMAHA | YFM100 Moto | [98cc] | 01.1985-12.1989 |
| YAMAHA | YFM50 Raptor 50 | [49cc] | 01.2004-12.2008 |
| YAMAHA | YFM80 Badger | [79cc] | 01.1986-12.2001 |
| YAMAHA | YFM80 Grizzly 80 | [79cc] | 01.2005-12.2008 |
| YAMAHA | YFM80 Raptor 80 | [79cc] | 01.2002-12.2008 |
Reference Information
| 10440708 | ALANKO |
| 108752 | FARCOM |
| 111928 | CARGO |
| 128000-1990 | DENSO |
| 128000-4850 | DENSO |
| 128000-4851 | DENSO |
| 128000-4852 | DENSO |
| 18340 | LESTER |
| 18340N | WAI / TRANSPO |
| 2-2187-9 | WAI / TRANSPO |
| 254943 | KUHNER |
| 400.028.090.050 | PSH |
| 400.028.090.200 | PSH |
| 55X-81800-50 | YAMAHA |
| 55X-81800-50-00 | YAMAHA |
| 55X-81800-51 | YAMAHA |
| 55X-81800-51-00 | YAMAHA |
| 65X-81800-50-00 | YAMAHA |
| 65X-81880-50 | YAMAHA |
| 65X-81880-50-00 | YAMAHA |
| 71-29-18340 | WILSON |
| 88213391 | POWERMAX |
| F032111928 | CARGO |
| MS819 | DIXIE |
| PRSE159 | 3EFFE |
| STN1483 | KRAUF |
| STR6210 | ELECTROLOG |
| STR70030 | WOODAUTO |
| STRE159 | 3EFFE |
| UD19013S | AS-PL |
| WOOSTR70030 | WOODAUTO |
