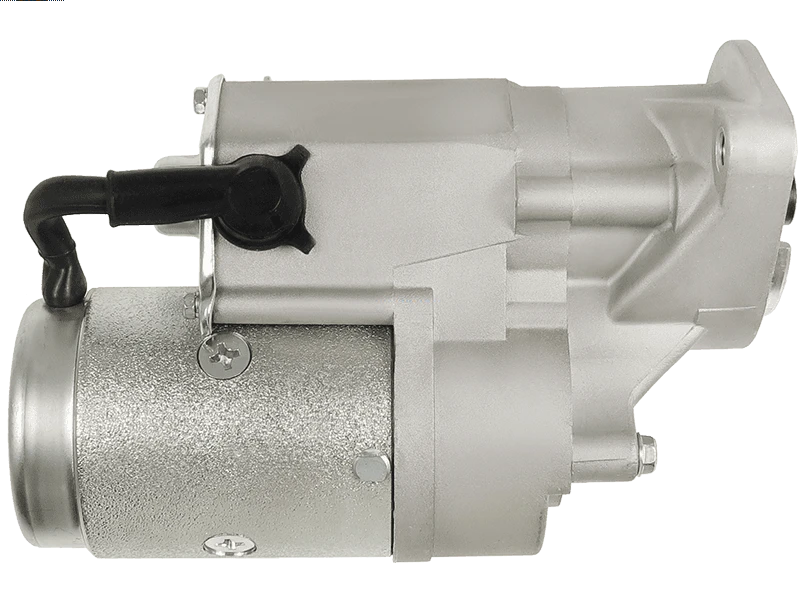

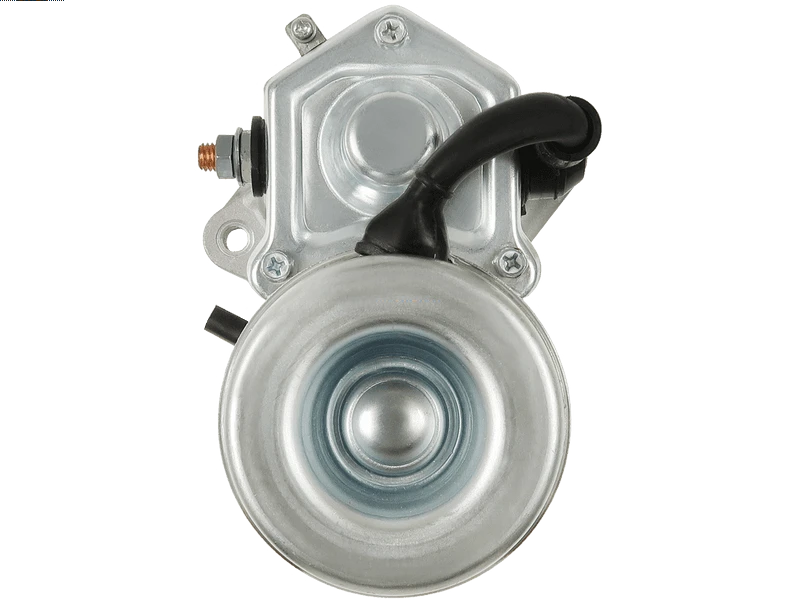

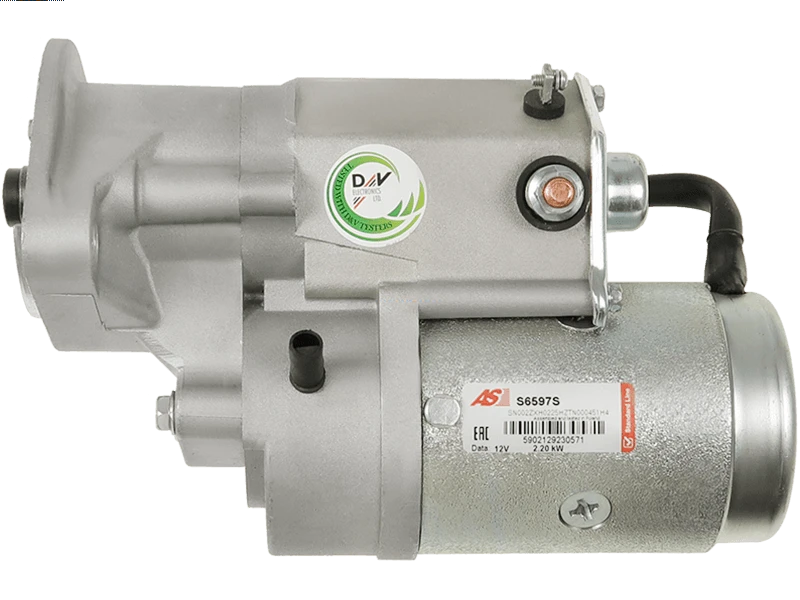

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 367.66 including GST
NZ$ 319.70 excluding GST
or four payments of $91.92
with
Learn More
each
S6597S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
228000-0880Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 237 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 3.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Camry 1.8 D | [1C-TL] | 10.1982-10.1986 |
| TOYOTA | Camry 1.8 D | [1C-TLC] | 10.1982-10.1986 |
| TOYOTA | Camry 2.0 D | [2C-T] | 10.1986-05.1991 |
| TOYOTA | Camry 2.0 D | [2C-T] | 11.1986-05.1991 |
| TOYOTA | Camry 2.0 D | [2C-T] | 11.1988-05.1991 |
| TOYOTA | Carina 2.0 D | [2C] | 03.1988-06.1992 |
| TOYOTA | Carina 2.0 D | [2C-L] | 02.1984-05.1988 |
| TOYOTA | Carina 2.0 D | [2C-L] | 03.1988-06.1992 |
| TOYOTA | Carina 2.0 D | [2C-L] | 12.1985-11.1987 |
| TOYOTA | Carina 2.0 D | [2C-L] | 12.1987-01.1992 |
| TOYOTA | Carina E 2.0 D | [2C] | 01.1993-09.1997 |
| TOYOTA | Carina E 2.0 D | [2C] | 08.1992-01.1996 |
| TOYOTA | Corolla 1.8 D | [1C] | 01.1983-09.1983 |
| TOYOTA | Corolla 1.8 D | [1C] | 01.1985-05.1988 |
| TOYOTA | Corolla 1.8 D | [1C] | 05.1983-08.1987 |
| TOYOTA | Corolla 1.8 D | [1C] | 06.1983-05.1988 |
| TOYOTA | Corolla 1.8 D | [1C] | 07.1987-06.1993 |
| TOYOTA | Corolla 1.8 D | [1C] | 08.1987-04.1992 |
| TOYOTA | Corolla 1.8 D | [1C] | 08.1989-04.1992 |
| TOYOTA | Corolla 1.8 D | [1C] | 08.1989-06.1992 |
| TOYOTA | Corolla 1.8 D | [1C] | 11.1989-06.1993 |
| TOYOTA | Corolla 1.8 D | [1C] | 12.1987-06.1992 |
| TOYOTA | Corolla 1.8 D | [1C-L] | 06.1983-06.1989 |
| TOYOTA | Corolla 1.8 D | [1C-L] | 06.1983-08.1987 |
| TOYOTA | Corolla 1.8 D | [1C-L] | 08.1985-08.1987 |
| TOYOTA | Corolla 2.0 D | [2C] | 07.1992-04.1997 |
| TOYOTA | Liteace 1.8 D | [1C] | 10.1985-08.1988 |
| TOYOTA | Liteace 2.0 D | [2C] | 08.1988-01.1992 |
Reference Information
| 011-001-000246R | REMANTE |
| 10040188AV | ITAB AUTOMOTIVE |
| 103320 | FARCOM |
| 111564 | CARGO |
| 11844 | EAI |
| 128000-9560 | DENSO |
| 190.938.102.050 | PSH |
| 20432881BN | REAL |
| 228000-0460 | DENSO |
| 228000-0880 | DENSO |
| 25-0418 | ELSTOCK |
| 281006-4190 | TOYOTA |
| 281006-4210 | TOYOTA |
| 28100-64290 | TOYOTA |
| 281006-4290 | TOYOTA |
| 30699 | LESTER |
| 30699N | WAI / TRANSPO |
| 6040188.0 | SANDO |
| 8052285 | FRIESEN |
| 944280522850 | MAGNETI MARELLI |
| A15760 | ATL AUTOTECHNIK |
| ANM15473 | ANDEL |
| CGB-23253 | AINDE |
| CMA-641379 | COMLINE |
| CST40188AS | CASCO |
| ESA129 | FORD |
| F032111564 | CARGO |
| JS774 | HC PARTS |
| LRS00696 | LUCAS |
| LRS696 | LUCAS |
| MRS52285 | MAGNETI MARELLI |
| QRS1535 | QUINTON HAZELL |
| S512035 | BTS TURBO |
| SDN188A | AUTOTEAM |
| STN0774 | KRAUF |
| STR30000 | WOODAUTO |
| STR7241 | 3EFFE |
| T521A43 | NPS |
| UD102523S | AS-PL |
Video/Publications
