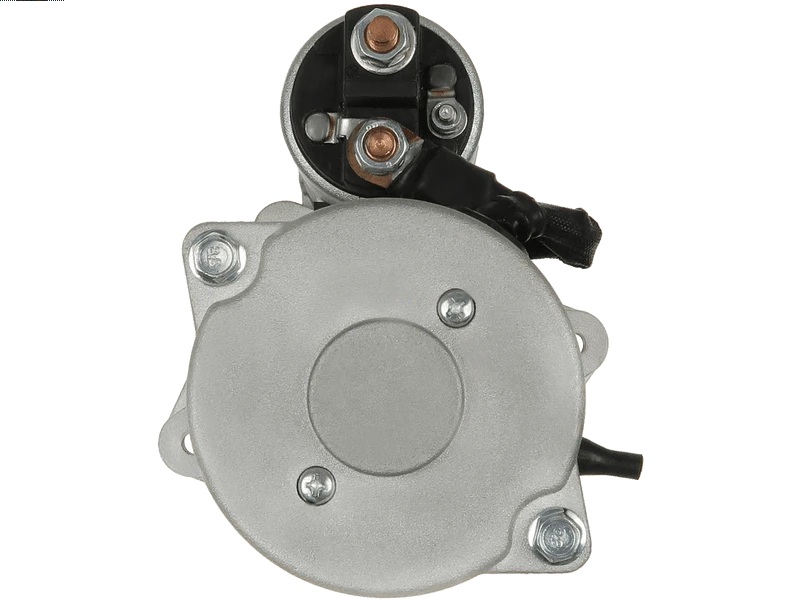

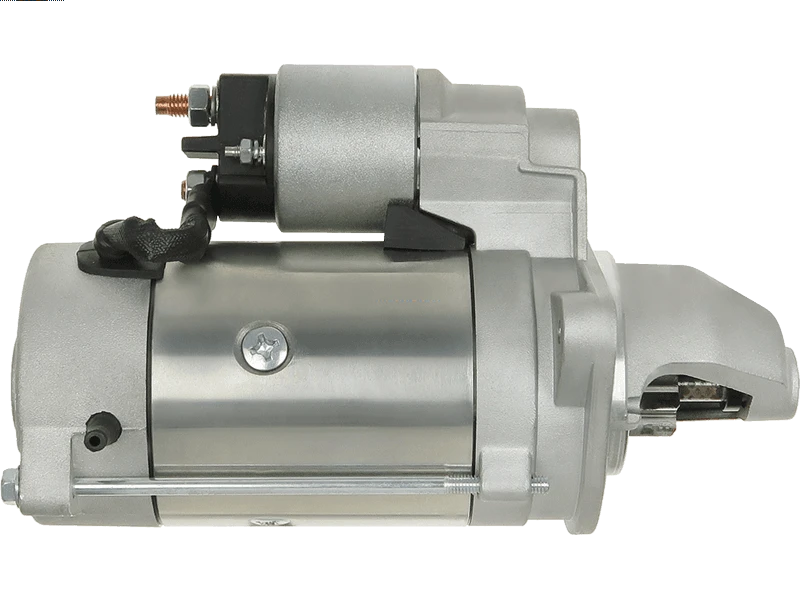

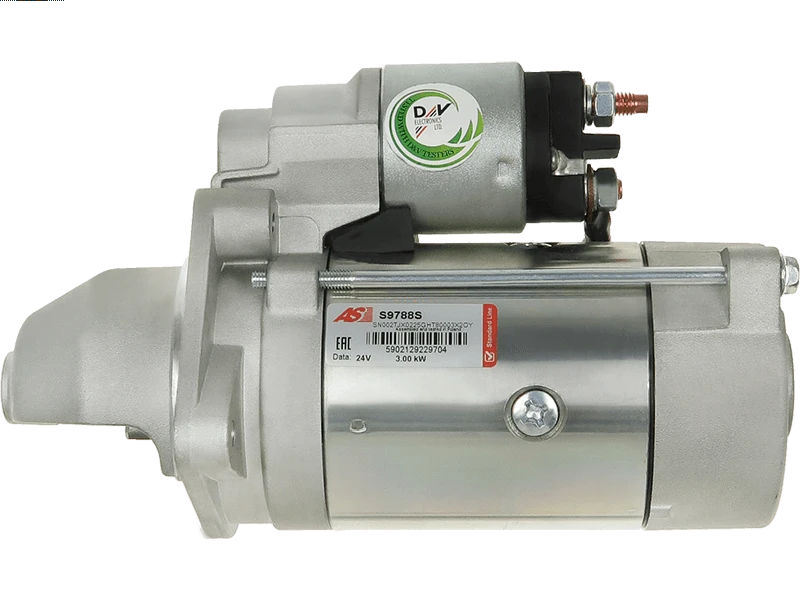

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Retail Price:
NZ$ 546.17 including GST
NZ$ 474.93 excluding GST
or four payments of $136.54
with
Learn More
each
S9788S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

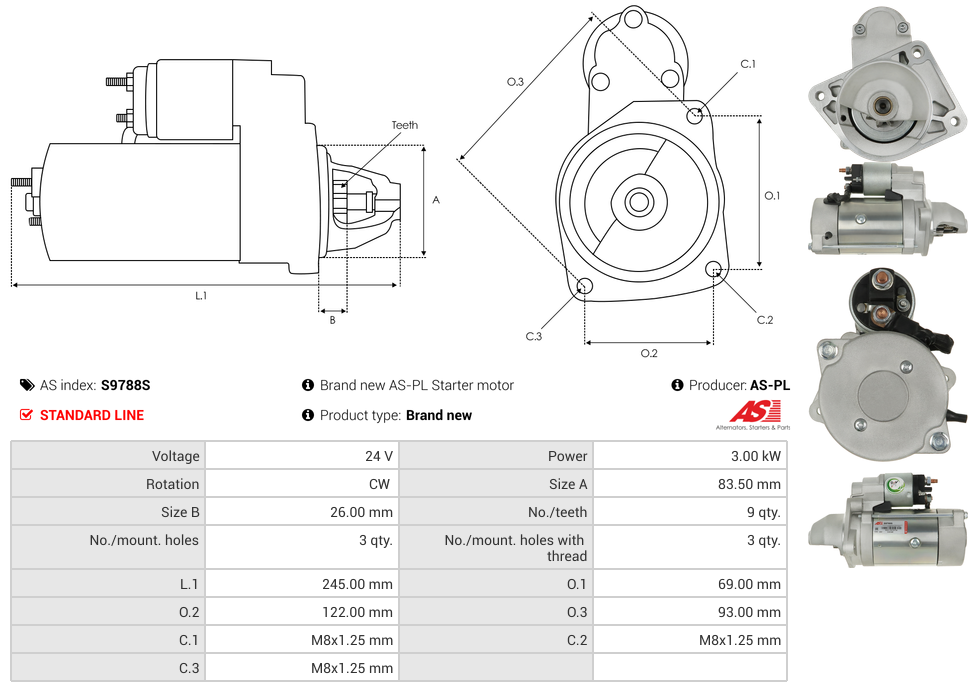

Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 245 mm |
| Mount Hole Center - Center (O.1) | 69 mm |
| Mount Hole Center - Center (O.2) | 122 mm |
| Mount Hole Center - Center (O.3) | 93 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 83.50 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
