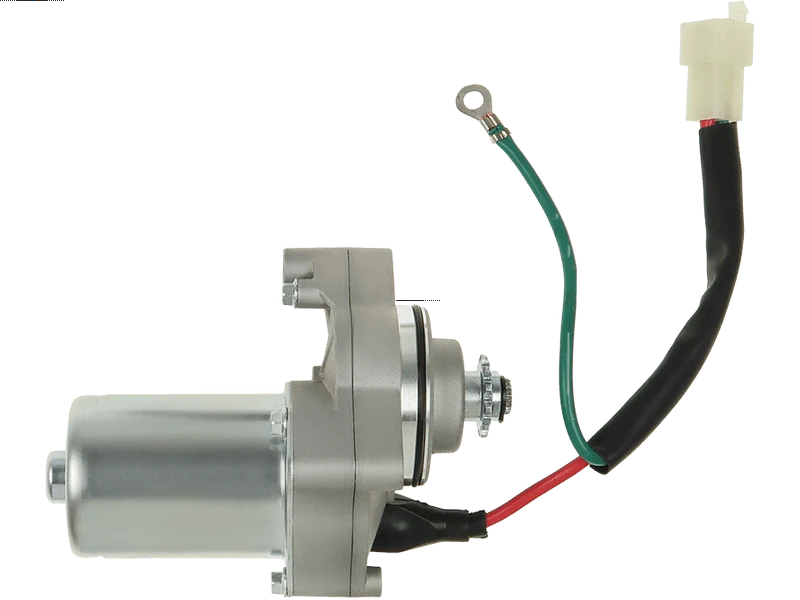

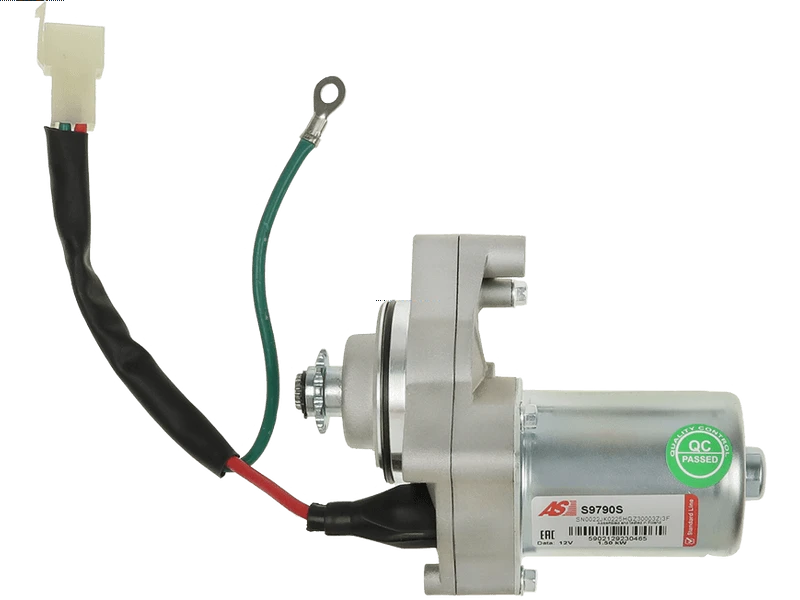

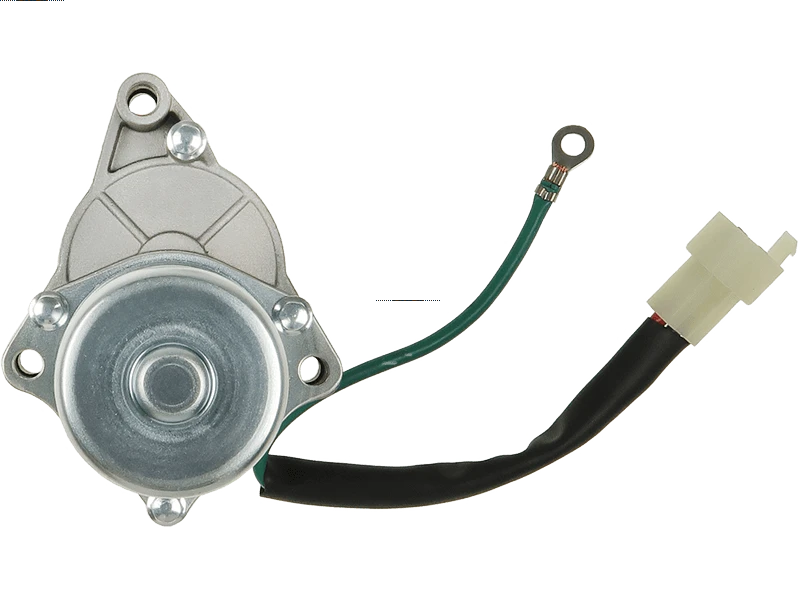

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOMBARDIER
Price:
NZ$ 86.32 including GST
NZ$ 75.06 excluding GST
or four payments of $21.58
with
Learn More
UOM:
each
Product Code:
S9790S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1.50 kW |
| Length (L.1) | 145 mm |
| Mount Hole Center - Center (O.1) | 70 mm |
| Mount Hole Center - Center (O.2) | 78 mm |
| Mount Hole Center - Center (O.3) | 70 mm |
| Mount Hole Diameter (C.1) | 7.50 mm |
| Mount Hole Diameter (C.2) | 7.50 mm |
| Mount Hole Diameter (C.3) | 7.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 57 mm |
| Unit Type | BOMBARDIER |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOMBARDIER | DS90 Mini 4-Stroke | [90cc] | 01.2002-12.2005 |
| BOMBARDIER | Quest 90 4-Stroke | [90cc] | 01.2003-12.2004 |
Reference Information
| 108682 | FARCOM |
| 18822 | LESTER |
| 18822N | WAI / TRANSPO |
| 71-38-18822 | WILSON |
| A31200-152-000 | BOMBARDIER |
| RN18822 | NAPA |
| RS41108 | DELCO |
| UD19021S | AS-PL |
