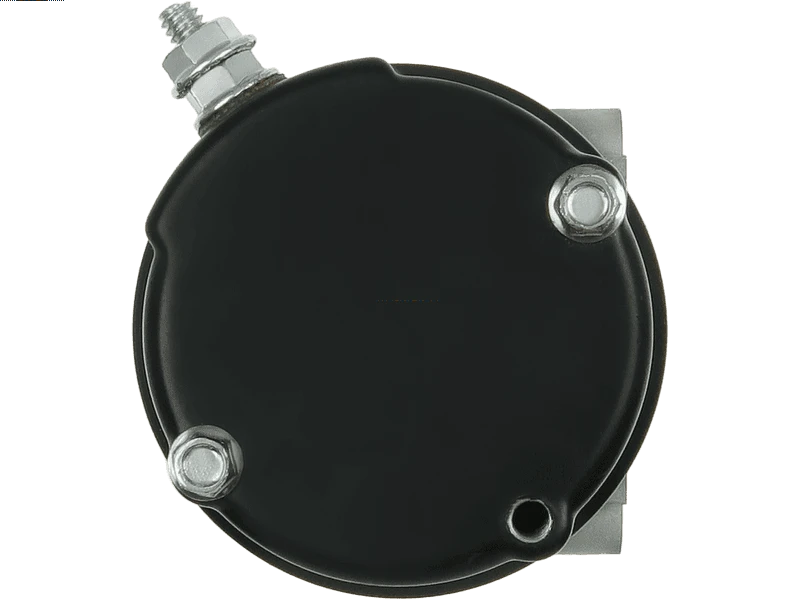

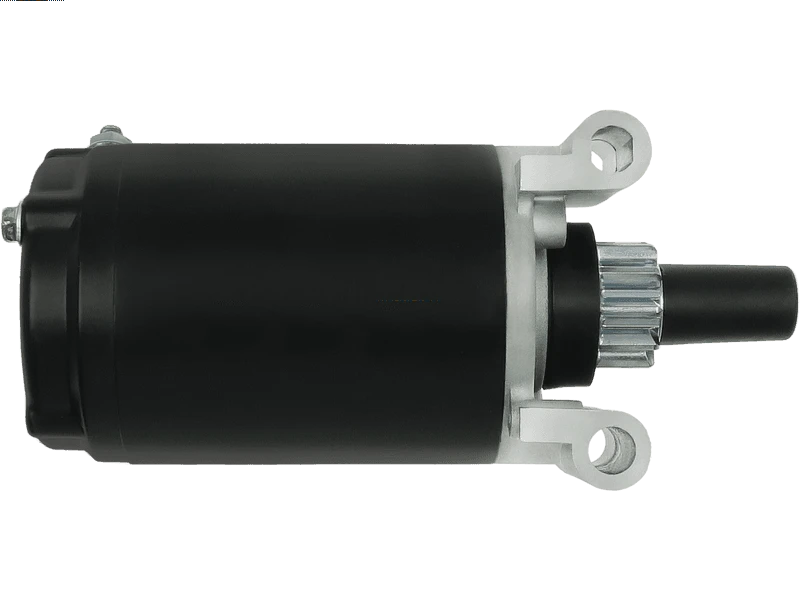

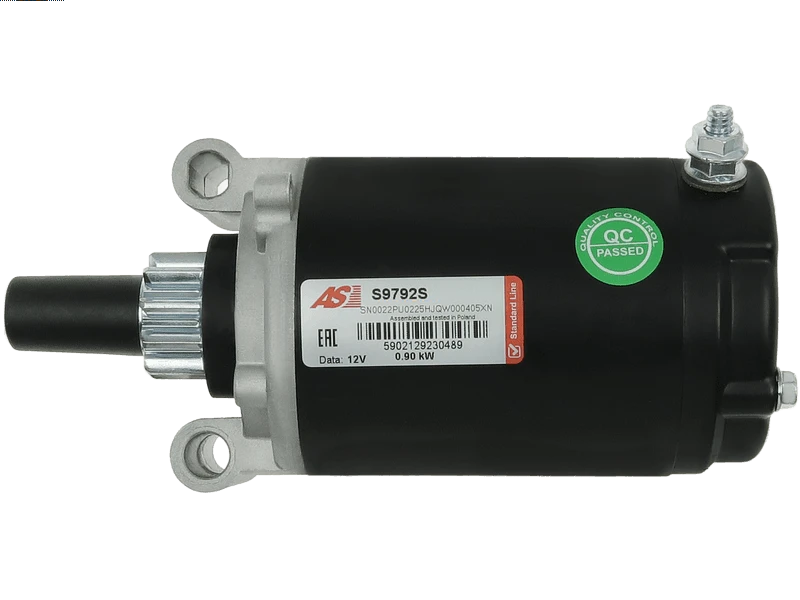

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 149.91 including GST
NZ$ 130.36 excluding GST
or four payments of $37.48
with
Learn More
each
S9792S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 184 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 16 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | LT150 | [15H.P.] | |
| JOHN DEERE | LT160 | [16H.P.] | |
| JOHN DEERE | Sabre 1948GV | [CV20S-65560-71-19.9H.P.] | |
| JOHN DEERE | Sabre 1948HV | [CV20S-65560-71-19.9H.P.] | |
| JOHN DEERE | Sabre 2148HV | [CV22S-75529-42-21H.P.] | |
| JOHN DEERE | Sabre 2354HV | [CV23S-75531-41-23H.P.] | |
| JOHN DEERE | STX30 | [9H.P.] | 01.1989-12.1993 |
| JOHN DEERE | STX38 | [12.5H.P.] | 01.1989-12.1996 |
| JOHN DEERE | STX38 | [13H.P.] | 01.1994-12.1996 |
| JOHN DEERE | STX38 | [14H.P.] | 01.1994-12.1996 |
| JOHN DEERE | STX46 | [14H.P.] | 01.1995-12.2005 |
| SCOTTS | S2348 | [23H.P.] | 01.2000-12.2001 |
Reference Information
| 10038131AV | ITAB AUTOMOTIVE |
| 10441030 | ALANKO |
| 106-10144 | ROBERT'S |
| 106-10144NOE | ROBERT'S |
| 113017 | CARGO |
| 1209810 | KOHLER |
| 20415131BN | REAL |
| 20607120 | DIXIE |
| 2-2756-UT | WAI / TRANSPO |
| 2-2756-UT-2 | WAI / TRANSPO |
| 25-098-03 | KOHLER |
| 25-098-04 | KOHLER |
| 25-098-04S | KOHLER |
| 25-098-05 | KOHLER |
| 25-098-05S | KOHLER |
| 25-098-06 | KOHLER |
| 25-098-06S | KOHLER |
| 25-098-07 | KOHLER |
| 25-098-07S | KOHLER |
| 254973 | KUHNER |
| 3117852 | HENKEL PARTS |
| 400.078.102.200 | PSH |
| 5667140 | UNITED TECHNOLOGIES |
| 5667140M030SM | UNITED TECHNOLOGIES |
| 5667140MO30SM | UNITED TECHNOLOGIES |
| 5775 | LESTER |
| 5775N | WAI / TRANSPO |
| 5802 | LESTER |
| 5802N | WAI / TRANSPO |
| 5802N-OE | WAI / TRANSPO |
| 6038131.0 | SANDO |
| 6560020M030SM | UNITED TECHNOLOGIES |
| 6560020MO30SM | UNITED TECHNOLOGIES |
| 6727040M030SM | UNITED TECHNOLOGIES |
| 6727040MO30SM | UNITED TECHNOLOGIES |
| 71-09-5775 | WILSON |
| 71-09-5802 | WILSON |
| 88213726 | POWERMAX |
| 91-09-1067 | WILSON |
| AM117130 | JOHN DEERE |
| AM120729 | JOHN DEERE |
| AM130407 | JOHN DEERE |
| AM132818 | JOHN DEERE |
| CST38131AS | CASCO |
| F032113017 | CARGO |
| MS6001 | DIXIE |
| RS35-03843 | ROKO |
| SAB0158 | ARROWHEAD |
| STC0026 | ARROWHEAD |
| STR88227 | WOODAUTO |
| STZ7130 | KRAUF |
| UD19207S | AS-PL |
| WOOSTR88227 | WOODAUTO |
