SAM-C10057 - Brand new ASG-NZ Starter Motor

Name: Brand new ASG-NZ Starter Motor
Brand: AS GROUP NZ
SKU: SAM-C10057
Price: 721.92 NZD
Availability: InStock

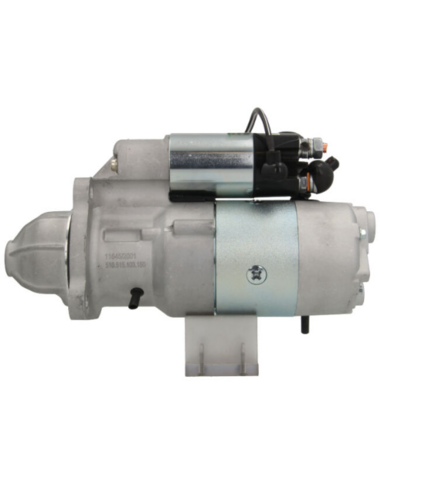

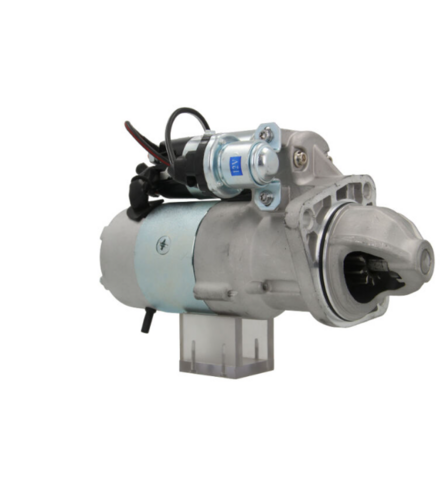

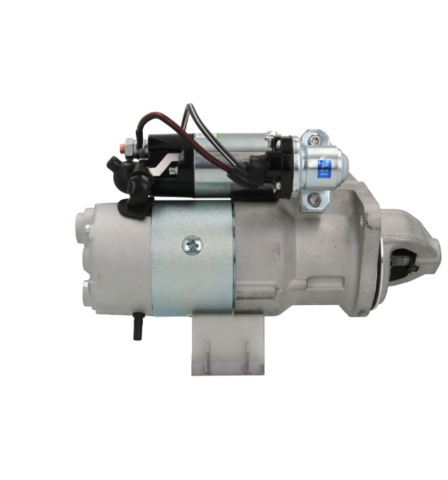

Brand new ASG-NZ Starter motor

STANDARD LINE

Manufacturer:

ASG-NZ

Replacement For:

Price:

NZ$ 721.92 including GST

NZ$ 627.76 excluding GST

or four payments of $180.48 with
Learn More

UOM:

each

Alternative Item:

SGP-C10057

Product Code:

SAM-C10057

Quantity In Stock Nationally:

Associated Numbers
Specifications
Vehicle Applications
Reference Information

041933	Da Silva
12187645	PSA
510515103	PSH
KTR1021030206	KTR
M100R2004AM	Prestolite
M100R2004SE	Prestolite
M100R2004SESEL	+line
PREM100R2004SE	Wood Auto
S133529	Short code
S144398	Short code
S163876	Short code
STR81078	Wood Auto
STR9727sa	Electrolog
WOOSTR81078	Wood Auto

0001359025 0001359072 0001362025 0001362043 0001362306 0001362314 0001369017 0986011020 0986011021 0986011210 101173 101173K 103425 10550 10550K 11.130.669 11.130.706 111332 120-6022 12187645 135902060010 18460N 20401042BN 20401042EL 20401532BN 25-0337 25-0413 25-1178 33420 33513 432569 432572 433314 433315 570.001.093 6005003152 6005003153 6005011729 6005701125 6010235 6010240 605720100055 605720100071 605720100083 605720100105 7700026780 7700046893 7700501670 7700519797 7700525064 7700525547 7700627394 8031 8647 8811020 8EA726182-001 8EA737722-001 911020 9142801 943252276 AZJ3218 AZJ3244 CS1173 CS550 CST10235AS CST10240AS CST10240ES D11E120 D11E131 D11E158 DRS1020 DRS3696 EAA-111449 F135902060010 G514900060100 H0641523 IS0664 IS0669 IS0706 LRS00568 LRS00632 LRS00639 M100R2004SE MSN697 MSR737 S9043 STR22088 X830100006 X830100009 X830100009000 PSA 510515103 PSH KTR1021030206 KTR M100R2004AM Prestolite M100R2004SESEL +line PREM100R2004SE Wood Auto S133529 Short code S144398 S163876 STR81078 STR9727sa Electrolog WOOSTR81078 SGP-C10057

Oil Sealed

Kilowatt	4.0 kW
Length (L.1)	235 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Voltage	12 V

Make	Model	Type	Year
FENDT	Farmer 103		01.1972-05.1982
FENDT	Farmer 103S		01.1972-05.1982
RENAULT AGRICULTURE	103-12	[D226-4]
RENAULT AGRICULTURE	103-14	[D226-4]
RENAULT AGRICULTURE	110-14	[D226-6]
RENAULT AGRICULTURE	113-12	[D226-6]
RENAULT AGRICULTURE	113-14	[D227-6]
RENAULT AGRICULTURE	1151-4	[115CV]
RENAULT AGRICULTURE	1181-4	[118CV]
RENAULT AGRICULTURE	120-14	[D226-6]
RENAULT AGRICULTURE	120-54	[D226-6]
RENAULT AGRICULTURE	133-14	[D226-6]
RENAULT AGRICULTURE	133-54	[D226-6]
RENAULT AGRICULTURE	145-14	[D228-6]
RENAULT AGRICULTURE	145-54	[D228-6]
RENAULT AGRICULTURE	21520	[D226-3]
RENAULT AGRICULTURE	22616	[60CV]
RENAULT AGRICULTURE	24077	[D226-3]
RENAULT AGRICULTURE	25173	[68CV]
RENAULT AGRICULTURE	25903	[D226-4]
RENAULT AGRICULTURE	27729	[D226-4]
RENAULT AGRICULTURE	29556	[D226-4]
RENAULT AGRICULTURE	301	[30CV]
RENAULT AGRICULTURE	31382	[D226-4]
RENAULT AGRICULTURE	35034	[D226-4]
RENAULT AGRICULTURE	351	[35CV]
RENAULT AGRICULTURE	361	[36CV]
RENAULT AGRICULTURE	421	[42CV]
RENAULT AGRICULTURE	456	[46CV]
RENAULT AGRICULTURE	460	[48CV]
RENAULT AGRICULTURE	461	[46CV]
RENAULT AGRICULTURE	462	[46V]
RENAULT AGRICULTURE	480	[56CV]
RENAULT AGRICULTURE	486	[51CV]
RENAULT AGRICULTURE	489	[51CV]
RENAULT AGRICULTURE	490	[65CV]
RENAULT AGRICULTURE	496	[82CV]
RENAULT AGRICULTURE	498	[90CV]
RENAULT AGRICULTURE	50	[30CV]
RENAULT AGRICULTURE	50	[33CV]
RENAULT AGRICULTURE	51	[44CV]
RENAULT AGRICULTURE	53	[30CV]
RENAULT AGRICULTURE	551	[55CV]
RENAULT AGRICULTURE	551-4	[55CV]
RENAULT AGRICULTURE	556	[55CV]
RENAULT AGRICULTURE	56	[46CV]
RENAULT AGRICULTURE	58-14	[D226-3]
RENAULT AGRICULTURE	58-32	[D226-3]
RENAULT AGRICULTURE	58-34	[D226-3]
RENAULT AGRICULTURE	60	[46CV]
RENAULT AGRICULTURE	61-14	[60CV]
RENAULT AGRICULTURE	651	[65CV]
RENAULT AGRICULTURE	65-14	[D226-3]
RENAULT AGRICULTURE	651-4	[65CV]
RENAULT AGRICULTURE	652	[65CV]
RENAULT AGRICULTURE	65-32	[D226-3]
RENAULT AGRICULTURE	65-34	[D226-3]
RENAULT AGRICULTURE	656	[65CV]
RENAULT AGRICULTURE	681	[68CV]
RENAULT AGRICULTURE	68-14	[68CV]
RENAULT AGRICULTURE	70	[46CV]
RENAULT AGRICULTURE	70-14	[D226-4]
RENAULT AGRICULTURE	70-32	[D226-4]
RENAULT AGRICULTURE	70-34	[D226-4]
RENAULT AGRICULTURE	75-14	[D226-4]
RENAULT AGRICULTURE	751-4	[75CV]
RENAULT AGRICULTURE	75-32	[D226-4]
RENAULT AGRICULTURE	75-34	[D226-4]
RENAULT AGRICULTURE	781	[78CV]
RENAULT AGRICULTURE	80	[55CV]
RENAULT AGRICULTURE	80-14	[D226-4]
RENAULT AGRICULTURE	82	[51CV]
RENAULT AGRICULTURE	851	[85CV]
RENAULT AGRICULTURE	85-14	[D226-4]
RENAULT AGRICULTURE	85-32	[D226-4]
RENAULT AGRICULTURE	85-34	[D226-4]
RENAULT AGRICULTURE	86	[55CV]
RENAULT AGRICULTURE	89	[58CV]
RENAULT AGRICULTURE	891	[89CV]
RENAULT AGRICULTURE	90	[62CV]
RENAULT AGRICULTURE	90	[65CV]
RENAULT AGRICULTURE	90-32	[D-226-4]
RENAULT AGRICULTURE	90-34	[D-226-4]
RENAULT AGRICULTURE	91	[72CV]
RENAULT AGRICULTURE	92	[62CV]
RENAULT AGRICULTURE	94	[80CV]
RENAULT AGRICULTURE	951	[95CV]
RENAULT AGRICULTURE	95-14	[D226-4]
RENAULT AGRICULTURE	96	[90CV]
RENAULT AGRICULTURE	98	[90CV]
RENAULT AGRICULTURE	981	[98CV]

10550K D11E158 S9043 25-0337 7700525547 18460N S12BH0278A2 351 STRS258 F13590206001 8647 DRS1020 433314 433315 7700519797 STX210075 CST10240ES STRS085 STR22088 LRS632 LRS639 9142801 CST10235AS AZJ3218 111332 IS0669 8031 IS0706 7700627394 LRS568 33513 IS0664 310415 310416 6010235 CGB-21210 103425 LRS00639 LRS00632 6005701125 MAV122350 12187645 943252276 MSN697 6010240 DRS3696 11.130.669 20401532BN 11.130.706 EAA-111449 25-0413 6005011729 CS1173 20401042EL H0641523 6005003152 6005003153 CST10240AS 220307 MS 570.001.093 MAV122400 8EA737722-001 25-1178 7700501670 X830100009 X830100006 X830100009000 911020 D11E120 STRX737 7700525064 8EA726182-001 LRS00568 101173 G514900060100 20401042BN F135902060010 101173K M100R2004SE 120-6022 10550 339 D11E131 AZJ3244 432569 STR7826 C514900060100 MSR737 33420 1.301E+11 CS550 7700026780 8811020 7700046893 432572
