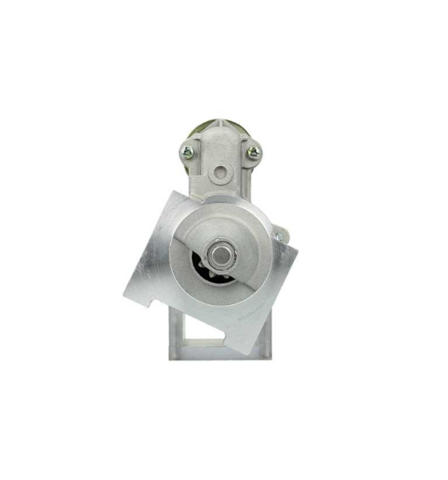

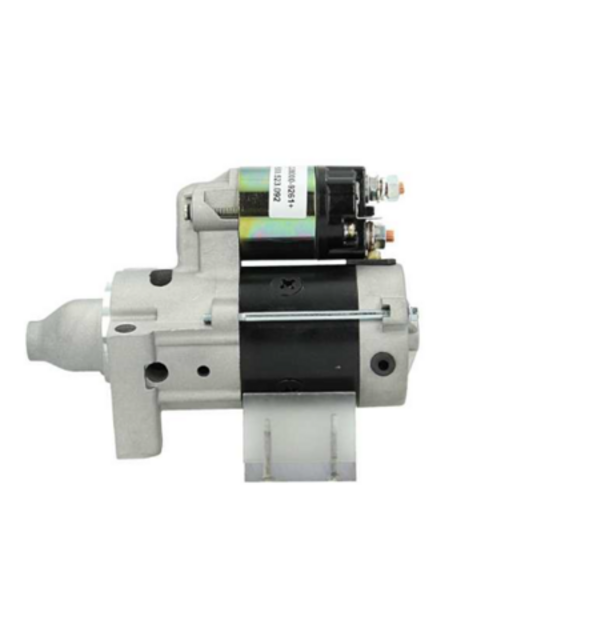

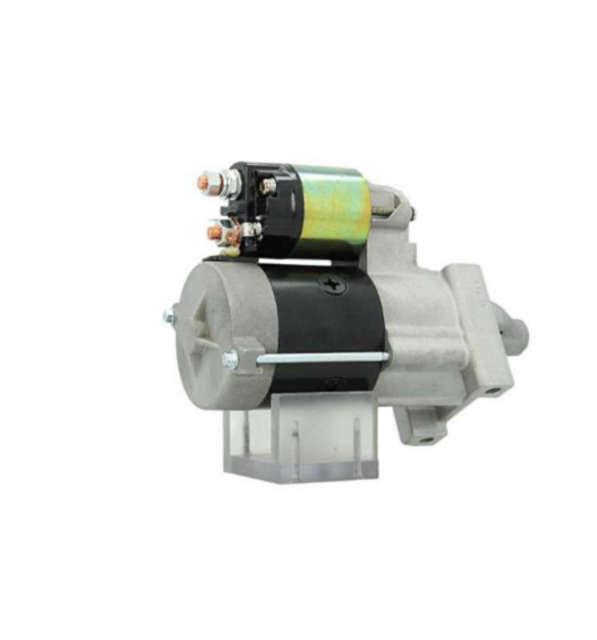

Brand new ASG-NZ Starter motor
STANDARD LINE
ASG-NZ
Price:
NZ$ 247.05 including GST
NZ$ 214.83 excluding GST
or four payments of $61.76
with
Learn More
each
S6526(DENSO)
SAM-A9074
2
Associated Numbers
18549N WAI 211637004 Kawasaki 211637015 211637027 2280009260 Denso 2280009261 2280009262 2280009263 24606117 Dixie 4280005060 4280805060 630523092 PSH AM133646 John Deere DENDSN2141 Wood Auto DSN2141 EG37163010 Kubota EG37163011 MIA11409 SE501879 STR70368 WOOSTR70368 S6526 S6526(denso) UD810332(DENSO)S AS-PL 228000-9260 DENSO List 228000-9261 List 228000-9262 228000-9263 428000-5060 List 428080-5060 JOHN DEERE 21163-7004 KAWASAKI 21163-7015 21163-7027 EG371-63011 KUBOTA CST40568GS CASCO STN1888 KRAUF 255860 KUHNER 630.523.092.050 630.523.092.260 20432865OE REAL 190-10248 ROBERT'S 6040568.1 SANDO / TRANSPO WOODAUTOSpecifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 205 mm |
| Mount Hole Center - Center (O.1) | 68 mm |
| Mount Hole Diameter (C.1) | 8 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE |
Reference Information
| 18549N | WAI / TRANSPO |
| 190-10248 | ROBERT'S |
| 20432865OE | REAL |
| 21163-7004 | KAWASAKI |
| 21163-7015 | KAWASAKI |
| 21163-7027 | KAWASAKI |
| 228000-9260 | DENSO |
| 228000-9261 | DENSO |
| 228000-9262 | DENSO |
| 228000-9263 | DENSO |
| 255860 | KUHNER |
| 428000-5060 | DENSO |
| 428080-5060 | DENSO |
| 6040568.1 | SANDO |
| 630.523.092.050 | PSH |
| 630.523.092.260 | PSH |
| AM133646 | JOHN DEERE |
| CST40568GS | CASCO |
| DSN2141 | DENSO |
| EG37163010 | KUBOTA |
| EG371-63011 | KUBOTA |
| MIA11409 | JOHN DEERE |
| S134.375 | PSH |
| S144.596 | PSH |
| SE501879 | JOHN DEERE |
| STN1888 | KRAUF |
| UD810332(DENSO)S | AS-PL |
| WOOSTR70368 | WOODAUTO |
