Price:
NZ$ 573.86 including GST
NZ$ 499.01 excluding GST
or four payments of $143.47
with
Learn More
each
A01009S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

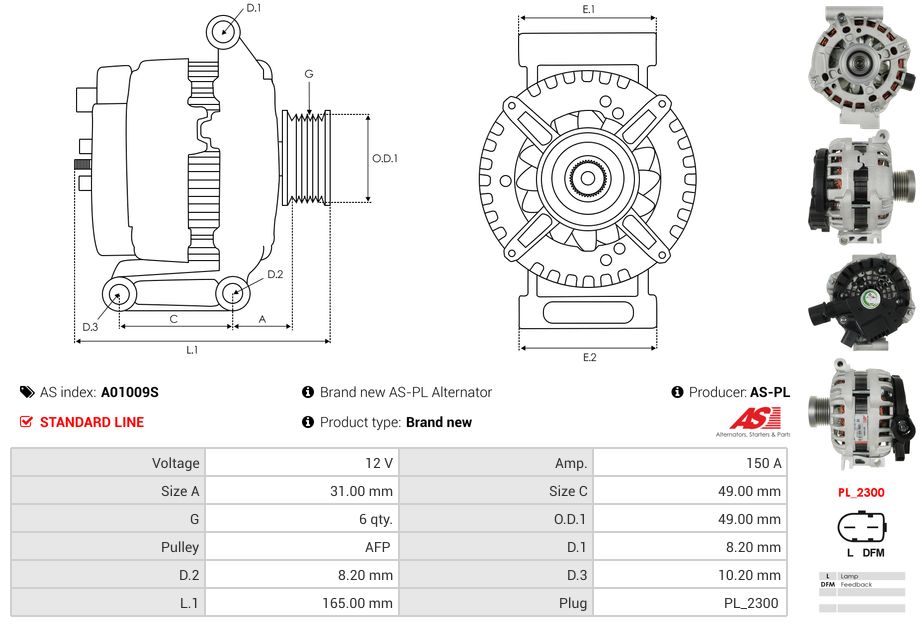

Specifications
| Amp | 150 A |
| Diameter (D.1) | 8.20 mm |
| Diameter (D.2) | 8.20 mm |
| Diameter (D.3) | 10.20 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49 mm |
| Plug Code | PL_2300 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Argo 1.8 Flex | 01.2017- | |
| FIAT | Cronos 1.8 Flex | 01.2018- | |
| FIAT | Toro 1.8 16V E-Torq Flex | 01.2017- | |
| JEEP | Renegade 1.8 16V Flex 4x4 | 07.2014- | |
| RAM | 1000 1.8 16V E-Torq Flex |
Reference Information
| 2010101BBN | REAL |
| 2010B10.0 | SANDO |
| 505.921.150.280 | PSH |
| 51993773 | FIAT |
| ALT12B100A | SIOM |
| CAL10B10AS | CASCO |
| F000BL07P2 | BOSCH |
| F000BL07P3 | BOSCH |
| G104069 | BTS TURBO |
| UD102489A | AS-PL |
