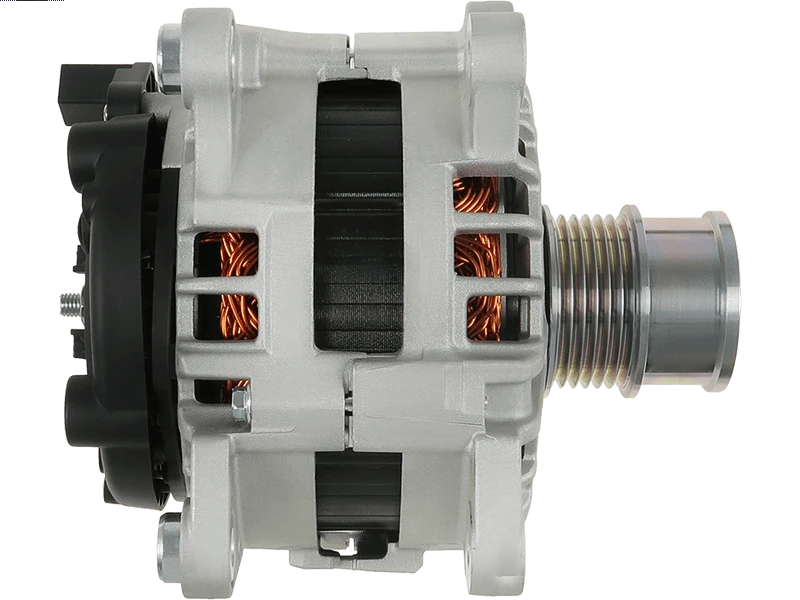

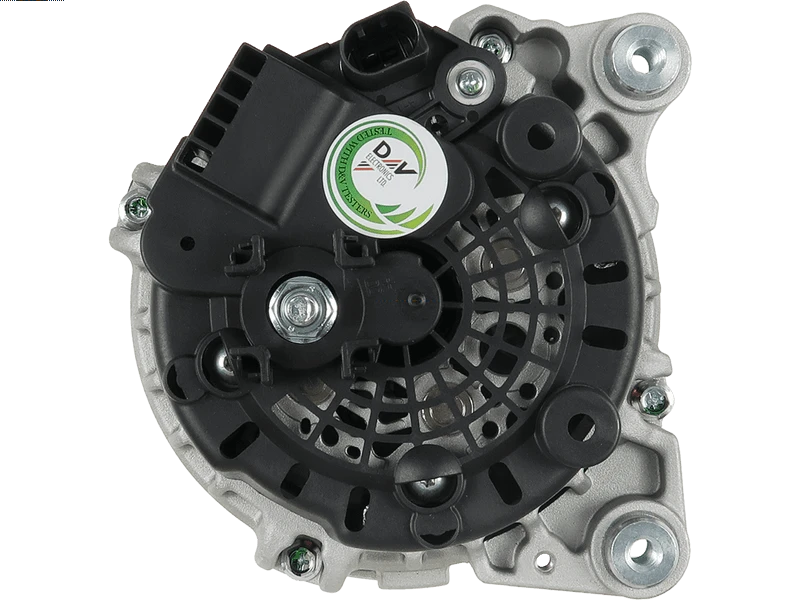

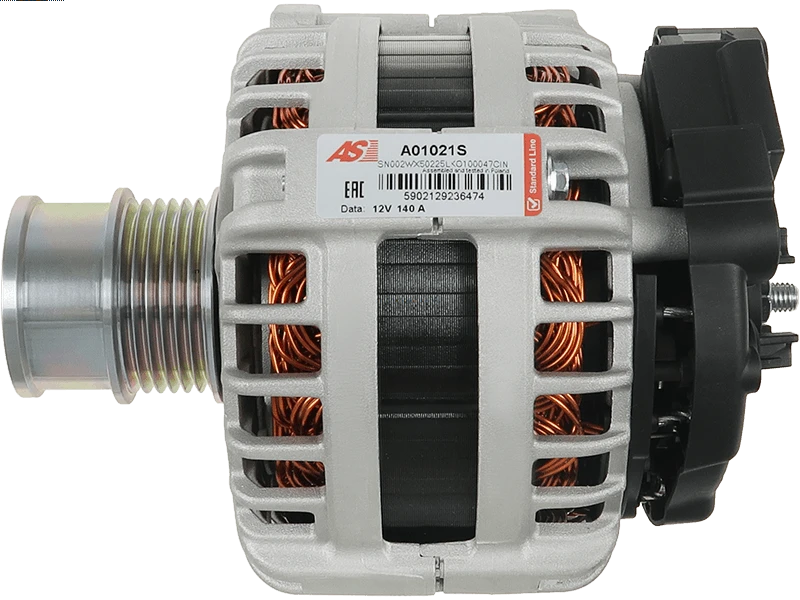

A01021S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS GROUP NZ
SKU: A01021S
Price: 561.22 NZD
Availability: SoldOut

Price:

NZ$ 561.22 including GST

NZ$ 488.02 excluding GST

or four payments of $140.31 with
Learn More

UOM:

each

Product Code:

A01021S

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

No stock in NZ currently

Specifications
Vehicle Applications
Reference Information

Amp	140 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.50 mm
Diameter (D.2)	8.50 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Length (L.1)	202 mm
Mount Inside Length or Pad Mount C-C (C)	61 mm
Plug Code	PL_2306
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	52 mm
Pulley to Mount Distance (A)	30 mm
Pulley Type	Clutch
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A1 1.0 25 TFSi	[DKLA]	07.2019-06.2022
AUDI	A1 1.0 25 TFSi Sportback	[DKLA]	11.2018-
AUDI	A1 1.0 25 TFSi Sportback	[DLAC]	11.2018-
AUDI	A1 1.0 30 TFSi	[DKJA]	07.2019-06.2022
AUDI	A1 1.0 30 TFSi	[DKRF]	07.2019-06.2022
AUDI	A1 1.0 30 TFSi	[DLAA]	09.2020-06.2022
AUDI	A1 1.0 30 TFSi Sportback	[DKJA]	07.2018-
AUDI	A1 1.0 30 TFSi Sportback	[DKRF]	07.2018-
AUDI	A1 1.0 30 TFSi Sportback	[DLAA]	09.2020-
AUDI	A1 1.5 35 TFSi	[DPCA]	07.2019-06.2022
AUDI	A1 1.5 35 TFSi Sportback	[DADA]	09.2018-
AUDI	A1 1.5 35 TFSi Sportback	[DPCA]	09.2018-
AUDI	A1 1.5 35 TFSi Sportback	[DXDB]	09.2018-
AUDI	A3 1.0 30 TFSi	[DKRF]	07.2018-10.2020
AUDI	A3 1.0 30 TFSi	[DLAA]	06.2020-
AUDI	A3 1.0 30 TFSi Mild Hybrid	[DLAA]	06.2020-
AUDI	A3 1.0 30 TFSi Sportback	[DKRF]	07.2018-10.2020
AUDI	A3 1.0 30 TFSi Sportback	[DLAA]	06.2020-
AUDI	A3 1.0 TFSi	[CHZD]	07.2016-10.2020
AUDI	A3 1.0 TFSi Sportback	[CHZD]	07.2016-10.2020
AUDI	A3 1.0 TFSi Sportback	[DKRF]	07.2016-10.2020
AUDI	A3 1.5 30 g-tron Sportback	[DHFA]	07.2020-
AUDI	A3 1.5 35 TFSi	[DADA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi	[DPCA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi Mild Hybrid	[DFYA]	04.2020-
AUDI	A3 1.5 35 TFSi Mild Hybrid	[DXDB]	04.2020-
AUDI	A3 1.5 35 TFSi Mild Hybrid Sportback	[DFYA]	04.2020-
AUDI	A3 1.5 35 TFSi Mild Hybrid Sportback	[DPCA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi Mild Hybrid Sportback	[DXDB]	04.2020-
AUDI	A3 1.5 35 TFSi Sportback	[DADA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi Sportback	[DPCA]	11.2019-
AUDI	Q2 1.0 30 TFSi	[DKRF]	07.2018-
AUDI	Q2 1.0 30 TFSi	[DLAA]	08.2020-
AUDI	Q2 1.0 TFSi	[CHZJ]	10.2016-10.2020
AUDI	Q2 1.5 35 TFSi	[DADA]	07.2018-
AUDI	Q2 1.5 35 TFSi	[DPCA]	07.2018-
AUDI	Q2 1.5 35 TFSi	[DXDB]	07.2018-
AUDI	Q3 1.5 35 TFSi	[DADA]	08.2018-
AUDI	Q3 1.5 35 TFSi	[DPCA]	08.2018-
AUDI	Q3 1.5 35 TFSi	[DXDB]	08.2018-
AUDI	Q3 1.5 35 TFSi Mild Hybrid	[DFYA]	11.2019-
AUDI	Q3 1.5 35 TFSi Mild Hybrid Sportback	[DFYA]	11.2019-
AUDI	Q3 1.5 35 TFSi Sportback	[DPCA]	09.2019-
AUDI	Q3 1.5 35 TFSi Sportback	[DXDB]	09.2019-
CUPRA	Formentor 1.5 TSi	[DPCA]	11.2020-
SEAT	Arona 1.0 TGi	[DBYA]	11.2018-
SEAT	Arona 1.0 TSi	[CHZJ]	07.2017-
SEAT	Arona 1.0 TSi	[CHZL]	07.2017-
SEAT	Arona 1.0 TSi	[DKJA]	07.2017-
SEAT	Arona 1.0 TSi	[DKLA]	07.2017-
SEAT	Arona 1.0 TSi	[DKRF]	07.2017-
SEAT	Arona 1.0 TSi	[DLAA]	06.2020-
SEAT	Arona 1.0 TSi	[DLAC]	07.2017-
SEAT	Arona 1.0 TSi	[DUSA]	07.2017-
SEAT	Arona 1.0 TSi	[DUSB]	07.2017-
SEAT	Arona 1.0 TSi	[DXUA]	07.2017-
SEAT	Arona 1.5 TSi	[DADA]	07.2017-
SEAT	Arona 1.5 TSi	[DPCA]	07.2017-
SEAT	Arona 1.5 TSi	[DXDB]	07.2017-
SEAT	Ateca 1.0 TSi	[CHZJ]	05.2016-
SEAT	Ateca 1.0 TSi	[DKRF]	05.2016-
SEAT	Ateca 1.0 TSi	[DLAA]	09.2020-
SEAT	Ateca 1.0 TSi	[DUSA]	05.2016-
SEAT	Ateca 1.5 TSi	[DADA]	07.2018-
SEAT	Ateca 1.5 TSi	[DPCA]	07.2018-
SEAT	Ateca 1.5 TSi	[DXDB]	07.2018-
SEAT	Ateca 1.5 TSi 4Drive	[DADA]	07.2018-
SEAT	Ateca 1.5 TSi 4Drive	[DPCA]	07.2018-
SEAT	Ibiza 1.0 TGi	[DBYA]	11.2017-
SEAT	Ibiza 1.0 TSi	[CHZJ]	01.2017-
SEAT	Ibiza 1.0 TSi	[CHZL]	01.2017-
SEAT	Ibiza 1.0 TSi	[DKJA]	01.2017-
SEAT	Ibiza 1.0 TSi	[DKLA]	01.2017-
SEAT	Ibiza 1.0 TSi	[DKRF]	01.2017-
SEAT	Ibiza 1.0 TSi	[DLAA]	06.2020-
SEAT	Ibiza 1.0 TSi	[DLAC]	01.2017-
SEAT	Ibiza 1.0 TSi	[DUSA]	01.2017-
SEAT	Ibiza 1.0 TSi	[DUSB]	01.2017-
SEAT	Ibiza 1.5 TSi	[DADA]	07.2017-
SEAT	Ibiza 1.5 TSi	[DPCA]	07.2017-
SEAT	Ibiza 1.5 TSi	[DXDB]	07.2017-
SEAT	Leon 1.0 TSi	[CHZD]	05.2015-08.2020
SEAT	Leon 1.0 TSi	[DKLB]	09.2018-08.2020
SEAT	Leon 1.0 TSi	[DKRF]	05.2015-08.2020
SEAT	Leon 1.0 TSi	[DLAA]	03.2020-
SEAT	Leon 1.0 TSi	[DLAB]	03.2020-
SEAT	Leon 1.5 TGi	[DHFA]	10.2018-08.2020
SEAT	Leon 1.5 TGi CNG	[DHFA]	08.2020-
SEAT	Leon 1.5 TSi	[DACA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DADA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DPBA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DPBA]	11.2019-
SEAT	Leon 1.5 TSi	[DPCA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DPCA]	11.2019-
SEAT	Leon 1.5 TSi	[DXDB]	11.2019-
SEAT	Leon Sportstourer 1.0 TSi	[DLAA]	03.2020-
SEAT	Leon Sportstourer 1.0 TSi	[DLAB]	03.2020-
SEAT	Leon Sportstourer 1.5 TGi	[DHFA]	05.2021-
SEAT	Leon Sportstourer 1.5 TSi	[DPBA]	03.2020-
SEAT	Leon Sportstourer 1.5 TSi	[DPCA]	03.2020-
SEAT	Leon ST 1.0 TSi	[DKLB]	09.2018-08.2020
SEAT	Leon ST 1.5 TGi	[DHFA]	10.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DACA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DADA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DPBA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DPCA]	09.2018-08.2020
SEAT	Tarraco 1.5 TSi Act	[DADA]	09.2018-
SEAT	Tarraco 1.5 TSi Act	[DPCA]	09.2018-
SEAT	Tarraco 1.5 TSi Act	[DXDB]	09.2018-
SKODA	Fabia 1.0 TSi	[CHZB]	08.2014-06.2021
SKODA	Fabia 1.0 TSi	[CHZB]	08.2014-12.2022
SKODA	Fabia 1.0 TSi	[CHZC]	08.2014-06.2021
SKODA	Fabia 1.0 TSi	[CHZC]	08.2014-12.2022
SKODA	Fabia 1.0 TSi	[DKLD]	08.2014-06.2021
SKODA	Fabia 1.0 TSi	[DKLD]	08.2014-12.2022
SKODA	Fabia 1.0 TSi	[DKRC]	08.2014-06.2021
SKODA	Fabia 1.0 TSi	[DKRC]	08.2014-12.2022
SKODA	Fabia 1.2 TSi	[CJZC]	08.2014-06.2021
SKODA	Fabia 1.2 TSi	[CJZC]	10.2014-12.2022
SKODA	Fabia 1.2 TSi	[CJZD]	08.2014-06.2021
SKODA	Fabia 1.2 TSi	[CJZD]	10.2014-12.2022
SKODA	Kamiq 1.0 TSi	[DKJA]	07.2019-
SKODA	Kamiq 1.0 TSi	[DKLA]	07.2019-
SKODA	Kamiq 1.0 TSi	[DKRF]	07.2019-
SKODA	Kamiq 1.0 TSi	[DLAA]	08.2020-
SKODA	Kamiq 1.0 TSi	[DLAC]	07.2019-
SKODA	Kamiq 1.0 TSi	[DUSA]	07.2019-
SKODA	Kamiq 1.0 TSi	[DUSB]	07.2019-
SKODA	Kamiq 1.0 TSi	[DXUA]	07.2019-
SKODA	Kamiq 1.5 TSi	[DADA]	07.2019-
SKODA	Kamiq 1.5 TSi	[DPCA]	07.2019-
SKODA	Kamiq 1.5 TSi	[DXDB]	07.2019-
SKODA	Karoq 1.0 TSi	[CHZJ]	07.2017-
SKODA	Karoq 1.0 TSi	[DKRF]	07.2017-
SKODA	Karoq 1.0 TSi	[DLAA]	09.2020-
SKODA	Karoq 1.0 TSi	[DUSA]	07.2017-
SKODA	Karoq 1.5 TSi	[DADA]	07.2017-
SKODA	Karoq 1.5 TSi	[DPCA]	07.2017-
SKODA	Karoq 1.5 TSi	[DXDB]	07.2017-
SKODA	Karoq 1.5 TSi 4x4	[DADA]	07.2017-
SKODA	Karoq 1.5 TSi 4x4	[DPCA]	07.2017-
SKODA	Kodiaq 1.5 TSi	[DADA]	07.2018-
SKODA	Kodiaq 1.5 TSi	[DPCA]	07.2018-
SKODA	Kodiaq 1.5 TSi 4x4	[DADA]	07.2018-
SKODA	Kodiaq 1.5 TSi 4x4	[DPCA]	07.2018-
SKODA	Octavia 1.0 TSi	[DLAA]	06.2020-
SKODA	Octavia 1.5 TSi	[DADA]	02.2017-10.2020
SKODA	Octavia 1.5 TSi	[DPCA]	01.2020-
SKODA	Octavia 1.5 TSi	[DPCA]	02.2017-10.2020
SKODA	Octavia 1.5 TSi	[DPCA]	11.2019-
SKODA	Octavia 1.5 TSi	[DXDB]	01.2020-
SKODA	Octavia 1.5 TSi	[DXDB]	11.2019-
SKODA	Octavia 1.5 TSi G-Tec	[DHFA]	06.2020-
SKODA	Scala 1.0 TSi	[DKJA]	02.2019-
SKODA	Scala 1.0 TSi	[DKLA]	02.2019-
SKODA	Scala 1.0 TSi	[DKRF]	02.2019-
SKODA	Scala 1.0 TSi	[DLAA]	08.2020-
SKODA	Scala 1.0 TSi	[DLAC]	02.2019-
SKODA	Scala 1.0 TSi	[DUSA]	02.2019-
SKODA	Scala 1.0 TSi	[DUSB]	02.2019-
SKODA	Scala 1.0 TSi	[DXUA]	02.2019-
SKODA	Scala 1.5 TSi	[DADA]	02.2019-
SKODA	Scala 1.5 TSi	[DPCA]	02.2019-
SKODA	Scala 1.5 TSi	[DXDB]	02.2019-
SKODA	Superb 1.5 TSi	[DADA]	02.2017-
SKODA	Superb 1.5 TSi	[DPCA]	02.2017-
VW	Arteon 1.5 TSi	[DADA]	11.2017-
VW	Arteon 1.5 TSi	[DPCA]	11.2017-
VW	Arteon 1.5 TSi Shooting Brake	[DPCA]	08.2020-
VW	Caddy 1.5 TSi Evo	[DPBC]	01.2021-11.2024
VW	Caddy California 1.5 TSi Evo	[DPBC]	01.2021-11.2024
VW	Golf Sportsvan 1.0 TSi	[CHZD]	05.2015-08.2020
VW	Golf Sportsvan 1.0 TSi	[CHZK]	05.2017-07.2019
VW	Golf Sportsvan 1.0 TSi	[DKLB]	05.2017-07.2019
VW	Golf Sportsvan 1.0 TSi	[DKRF]	05.2015-08.2020
VW	Golf Sportsvan 1.5 TSi	[DACA]	05.2017-08.2020
VW	Golf Sportsvan 1.5 TSi	[DADA]	05.2017-08.2020
VW	Golf Sportsvan 1.5 TSi	[DPBA]	05.2017-08.2020
VW	Golf Sportsvan 1.5 TSi	[DPCA]	05.2017-08.2020
VW	Golf VII 1.0 TSi	[CHZC]	11.2016-08.2020
VW	Golf VII 1.0 TSi	[CHZD]	05.2015-08.2020
VW	Golf VII 1.0 TSi	[DKRF]	05.2015-08.2020
VW	Golf VII 1.5 TSi	[DACA]	05.2017-08.2020
VW	Golf VII 1.5 TSi	[DACA]	07.2017-08.2020
VW	Golf VII 1.5 TSi	[DADA]	04.2017-08.2020
VW	Golf VII 1.5 TSi	[DPBA]	05.2017-08.2020
VW	Golf VII 1.5 TSi	[DPBA]	07.2017-08.2020
VW	Golf VII 1.5 TSi	[DPCA]	04.2017-08.2020
VW	Golf VIII 1.0 TSi	[DLAA]	02.2020-
VW	Golf VIII 1.0 TSi	[DLAA]	08.2020-
VW	Golf VIII 1.0 TSi	[DLAB]	02.2020-
VW	Golf VIII 1.0 TSi	[DLAB]	08.2020-
VW	Golf VIII 1.5 TGi	[DHFA]	09.2020-
VW	Golf VIII 1.5 TSi	[DPBA]	07.2019-
VW	Golf VIII 1.5 TSi	[DPBA]	08.2020-
VW	Golf VIII 1.5 TSi	[DPCA]	07.2019-
VW	Golf VIII 1.5 TSi	[DPCA]	08.2020-
VW	Passat B8 1.5 TSi	[DADA]	08.2018-
VW	Passat B8 1.5 TSi	[DPCA]	08.2018-
VW	Polo 1.0 TGi	[DBYA]	09.2017-
VW	Polo 1.0 TSi	[CHZJ]	09.2017-
VW	Polo 1.0 TSi	[CHZL]	06.2017-
VW	Polo 1.0 TSi	[DKJA]	09.2017-
VW	Polo 1.0 TSi	[DKLA]	06.2017-
VW	Polo 1.0 TSi	[DKRF]	09.2017-
VW	Polo 1.0 TSi	[DLAA]	07.2020-
VW	Polo 1.0 TSi	[DLAC]	06.2017-
VW	Polo 1.0 TSi	[DUSA]	09.2017-
VW	Polo 1.0 TSi	[DUSB]	06.2017-
VW	Polo 1.0 TSi	[DXTA]	06.2017-
VW	Polo 1.0 TSi	[DXUA]	09.2017-
VW	Polo 1.5 TSi	[DADA]	10.2018-08.2021
VW	Polo 1.5 TSi	[DPCA]	10.2018-08.2021
VW	T-Cross 1.0 TSi	[CHZL]	12.2018-
VW	T-Cross 1.0 TSi	[DKJA]	12.2018-
VW	T-Cross 1.0 TSi	[DKLA]	12.2018-
VW	T-Cross 1.0 TSi	[DKRF]	12.2018-
VW	T-Cross 1.0 TSi	[DLAA]	06.2020-
VW	T-Cross 1.0 TSi	[DLAC]	12.2018-
VW	T-Cross 1.0 TSi	[DUSA]	12.2018-
VW	T-Cross 1.0 TSi	[DUSB]	12.2018-
VW	T-Cross 1.5 TSi	[DADA]	01.2020-
VW	T-Cross 1.5 TSi	[DPCA]	01.2020-
VW	T-Cross 1.5 TSi	[DXDB]	01.2020-
VW	Tiguan 1.5 TSi	[DACB]	07.2018-
VW	Tiguan 1.5 TSi	[DADA]	11.2018-
VW	Tiguan 1.5 TSi	[DPBE]	07.2018-
VW	Tiguan 1.5 TSi	[DPCA]	11.2018-
VW	Tiguan 1.5 TSi	[DXDB]	11.2018-
VW	Tiguan Allspace 1.5 TSi	[DADA]	09.2018-
VW	Tiguan Allspace 1.5 TSi	[DPCA]	09.2018-
VW	Tiguan Allspace 1.5 TSi	[DXDB]	09.2018-
VW	Touran 1.5 TSi	[DADA]	11.2018-
VW	Touran 1.5 TSi	[DPCA]	11.2018-
VW	Touran 1.5 TSi	[DXDB]	11.2018-
VW	T-Roc 1.0 TSi	[CHZJ]	07.2017-
VW	T-Roc 1.0 TSi	[DKRF]	07.2017-
VW	T-Roc 1.0 TSi	[DKRF]	12.2019-
VW	T-Roc 1.0 TSi	[DLAA]	09.2020-
VW	T-Roc 1.0 TSi	[DUSA]	07.2017-
VW	T-Roc 1.0 TSi	[DUSA]	12.2019-
VW	T-Roc 1.5 TSi	[DADA]	11.2017-
VW	T-Roc 1.5 TSi	[DPCA]	11.2017-
VW	T-Roc 1.5 TSi	[DPCA]	12.2019-
VW	T-Roc 1.5 TSi	[DXDB]	11.2017-
VW	T-Roc 1.5 TSi	[DXDB]	12.2019-
VW	T-Roc 1.5 TSi 4motion	[DADA]	05.2018-11.2019
VW	T-Roc 1.5 TSi 4motion	[DPCA]	05.2018-11.2019

011-003-001163R	REMANTE
05E903026B	VW
05E903026BX	VW
05E903026L	VW
05E903026LX	VW
05E903026R	VW
05E903026RX	VW
05E903027B	VW
05E903027BX	VW
12091070	EUROTEC
1986A01246	BOSCH
20010A71OV	ITAB AUTOMOTIVE
2010117ABN	REAL
2010117AOE	REAL
2010A71.0	SANDO
2010A71.1	SANDO
2115851402	DRI
21693N	WAI / TRANSPO
28-8650	ELSTOCK
28-8650CT	AINDE
305.350.140.010	PSH
305.350.140.210	PSH
305.350.140.346	PSH
305.350.140.440	PSH
40859	CEVAM
459ST58	STARTCAR
4852030	NK
55101405G	MEAT & DORIA
555371RIB	KUHNER
555371RIS	KUHNER
556485RIB	KUHNER
58459	EAI
9092025	FRIESEN
A12BH1392	SIDAT
A148.419	PSH
ABOA71	AUTOTEAM
ABOA71A	AUTOTEAM
AL04424	TMI
ALT12A710A	SIOM
ALT149N	DIPASPORT
ANM100328	ANDEL
AZMT-49-035-2496	A.Z. MEISTERTEILE
CAL10A71AS	CASCO
CAL10A71GS	CASCO
F000BL08B8	BOSCH
LRA04541	LUCAS
LRA4541	LUCAS
UD102231A	AS-PL
VW8164	SNRA
WAL00978	WALKER
WG2444948	WILMINK GROUP
WG2444949	WILMINK GROUP

View your shopping basket or Browse other items in Alternators.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Form accompanying the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty procedure]

Warranty Form Parts Return Form

[Privacy Policy] [Disclaimer]
