Price:
NZ$ 854.67 including GST
NZ$ 743.19 excluding GST
or four payments of $213.67
with
Learn More
each

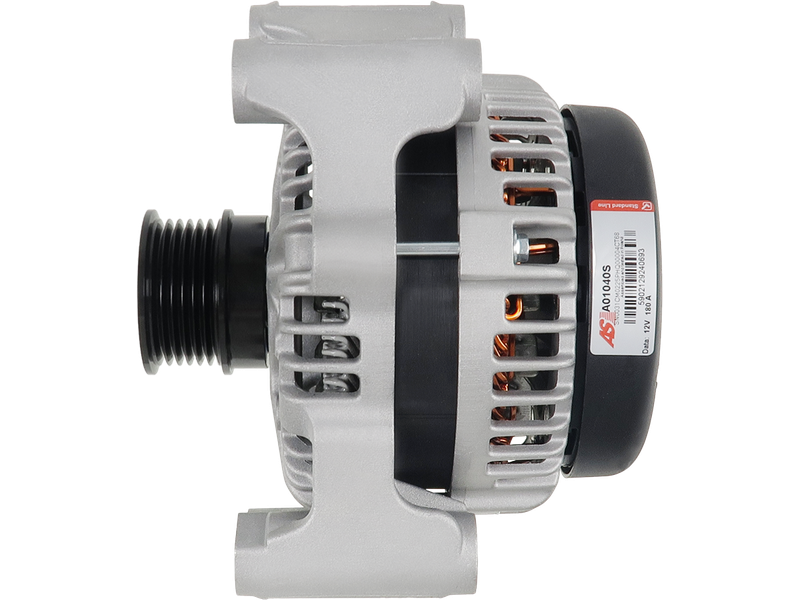

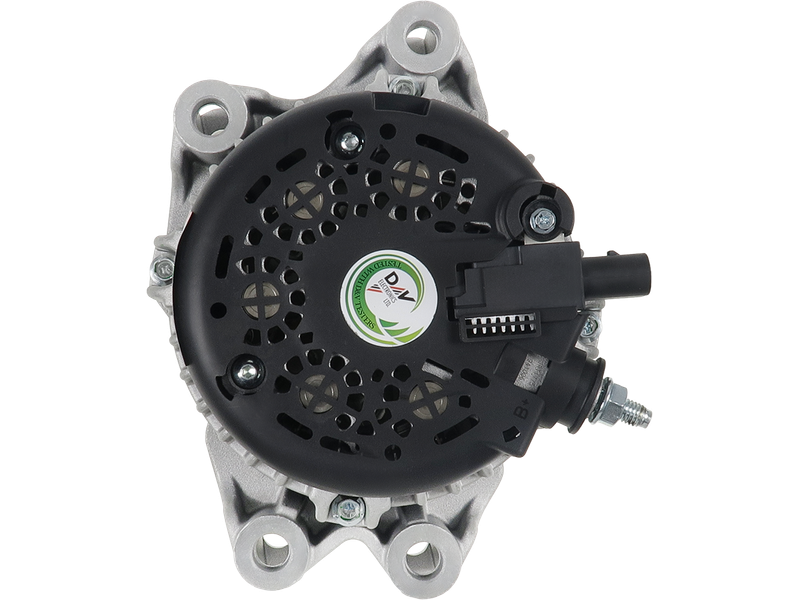

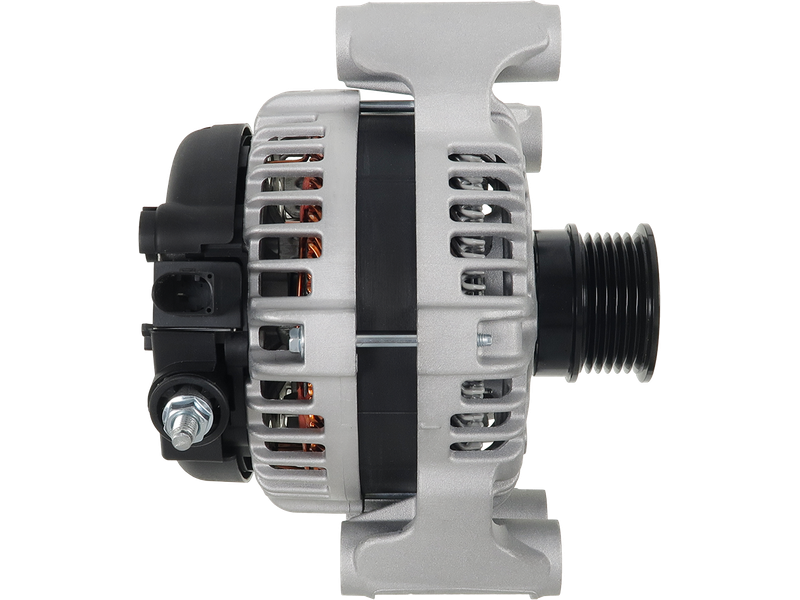

A01040S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

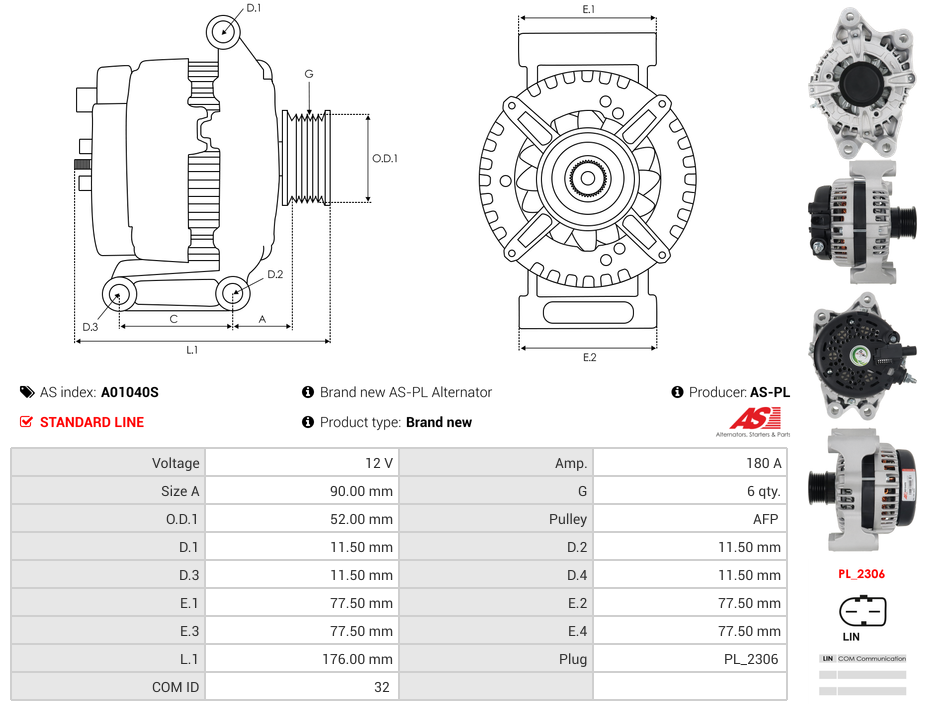

Specifications
| Amp | 180 A |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | 11.50 mm |
| Diameter (D.4) | 11.50 mm |
| Length (L.1) | 176 mm |
| Pad mount thickness (E.1) | 77.50 mm |
| Pad mount thickness (E.2) | 77.50 mm |
| Pad mount thickness (E.3) | 77.50 mm |
| Pad mount thickness (E.4) | 77.50 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JEEP | Gladiator 3.0 D | [182] | 01.2021-12.2023 |
| JEEP | Wrangler 3.0 D | [182] | 01.2020-12.2023 |
Reference Information
| 0126712045 | BOSCH |
| 0126712046 | BOSCH |
| 10149 | DIXIE |
| 12903 | LESTER |
| 12903N | WAI / TRANSPO |
| 68309251AA | CHRYSLER |
| 90-15-6736 | WILSON |
| UD102659A | AS-PL |
