Price:
NZ$ 457.79 including GST
NZ$ 398.08 excluding GST
or four payments of $114.45
with
Learn More
each
A01041S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

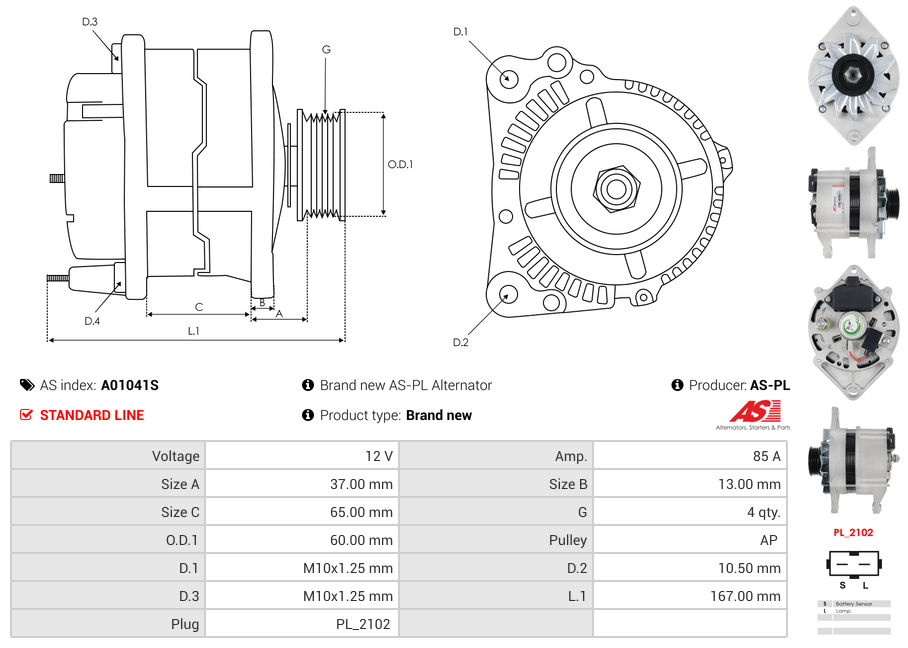

Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M10x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| Plug Code | PL_2102 |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 37 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Magna TR/TS 91-96 2.6 |
Reference Information
| 0120484030 | BOSCH |
| 112270 | FARCOM |
| 9120060001 | BOSCH |
| ALB4123 | KRAUF |
| AW314198 | MITSUBISHI |
| BXM1231 | BOSCH |
| BXM1232A | BOSCH |
| UD103057A | AS-PL |
