Price:
NZ$ 937.56 including GST
NZ$ 815.27 excluding GST
or four payments of $234.39
with
Learn More
each
A01045S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

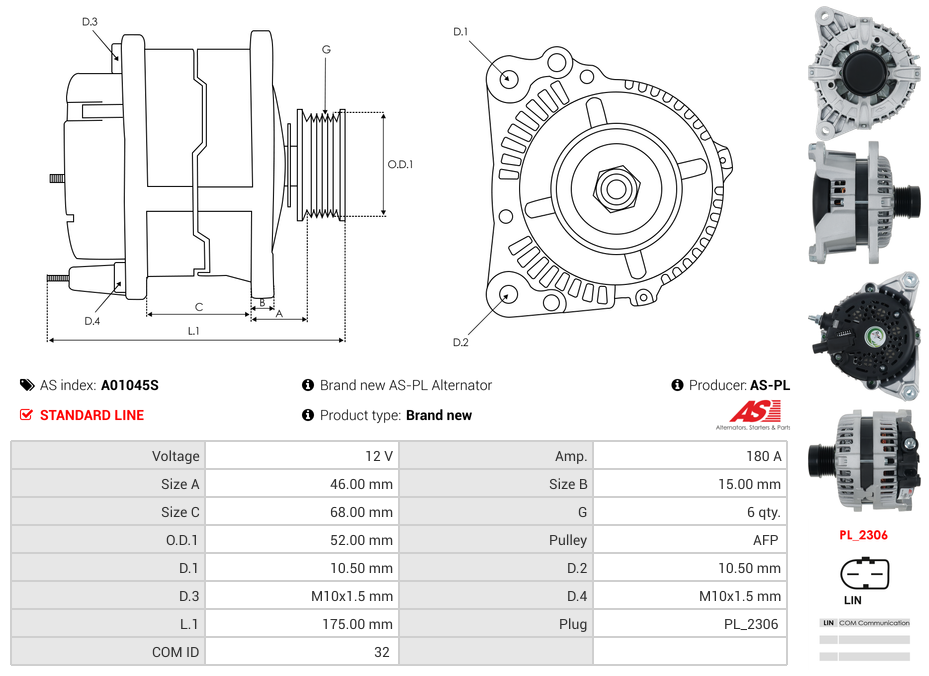

Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 175 mm |
| Mount Inside Length or Pad Mount C-C (C) | 68 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JEEP | Cherokee 2.0 | 01.2020-12.2023 | |
| JEEP | Cherokee 2.0 T-GDi | [EC1] | 09.2018- |
Reference Information
| 0126712005 | BOSCH |
| 0126712006 | BOSCH |
| 2010160BOE | REAL |
| 2010B06.1 | SANDO |
| 225.595.180.010 | PSH |
| 41003 | LESTER |
| 56029745AB | CHRYSLER |
| 68292144AB | CHRYSLER |
| 90-15-6723 | WILSON |
| ALT12B060 | SIOM |
| CAL10B06GS | CASCO |
| UD17522A | AS-PL |
