Price:
NZ$ 582.12 including GST
NZ$ 506.19 excluding GST
or four payments of $145.53
with
Learn More
each
A01060S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

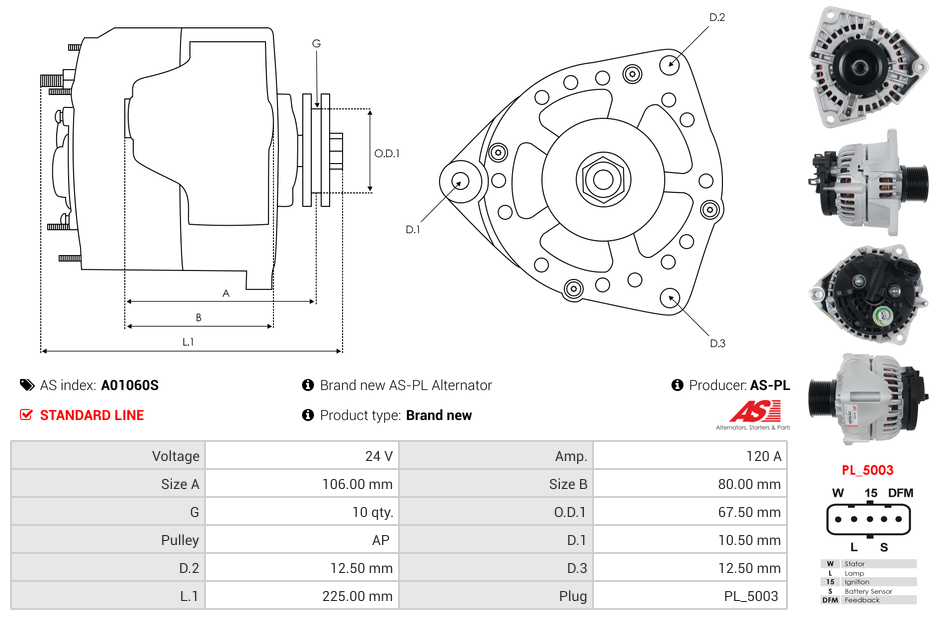

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 80 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 225 mm |
| Plug Code | PL_5003 |
| Pulley Grooves | 10 qty |
| Pulley Outside Diameter (O.D.1) | 67.50 mm |
| Pulley to Mount Distance (A) | 106 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAN | TGA | ||
| WEICHAI | Various Models |
Reference Information
| 0124655198 | BOSCH |
| 0124655650 | BOSCH |
| 0124655660 | BOSCH |
| 1000480368 | WEICHAI |
| 220-712 | LESTER |
| ALB9566 | KRAUF |
| UD17489A | AS-PL |
