Price:
NZ$ 430.24 including GST
NZ$ 374.12 excluding GST
or four payments of $107.56
with
Learn More
each
A01063S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

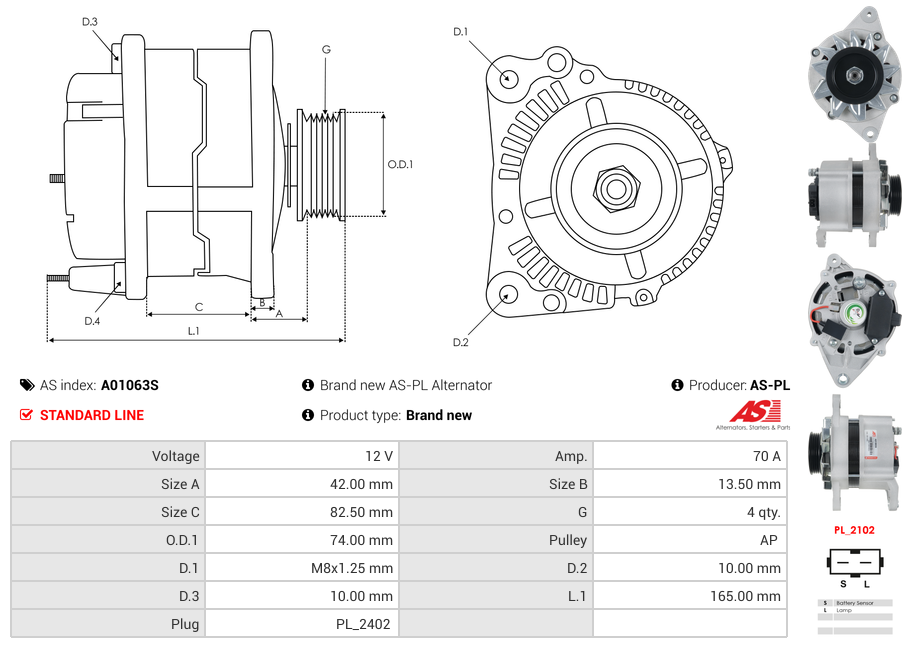

Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.50 mm |
| Plug Code | PL_2402 |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 74 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HOLDEN | Commodore 3.0 EFi | 01.1986-12.1988 | |
| HOLDEN | Commodore 3.0 EFi Turbo | 01.1986-12.1988 | |
| HOLDEN | Commodore 4.9 V8 | 01.1986-12.1988 | |
| NISSAN | Skyline 3.0 | 01.1986-12.1990 |
Reference Information
| 0120484031 | BOSCH |
| 0986AN0533 | BOSCH |
| 23100-59S00 | NISSAN |
| 23100-B4860 | NISSAN |
| 65-1036 | MISCELLANEOUS |
| 92031445 | HOLDEN |
| ALB4109 | KRAUF |
| BXN1231A | BOSCH |
| LR180-705 | HITACHI |
| UD103062A | AS-PL |
