Price:
NZ$ 828.03 including GST
NZ$ 720.03 excluding GST
or four payments of $207.01
with
Learn More
each
A01064S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

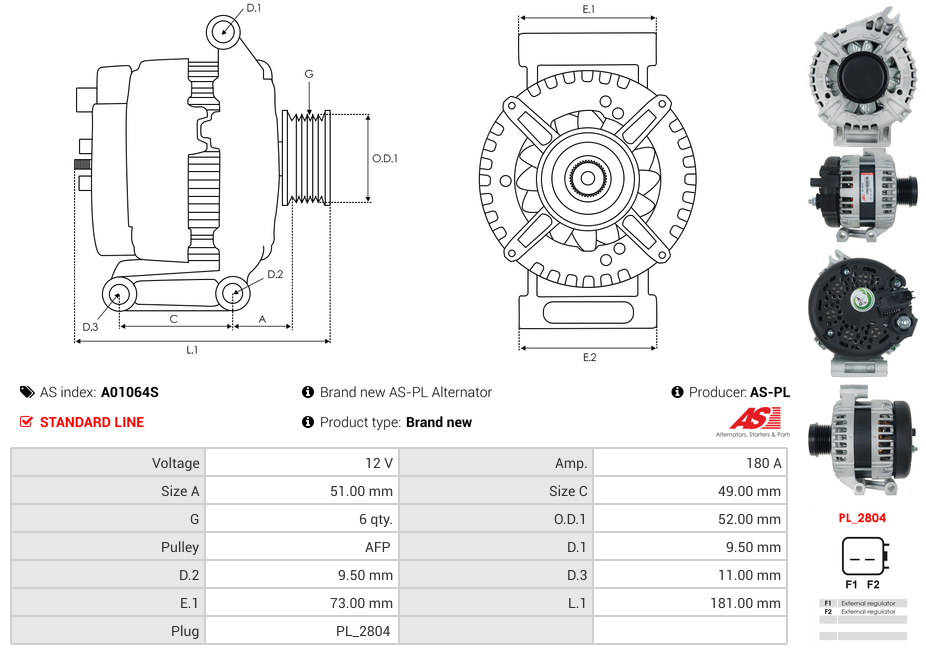

Specifications
| Amp | 180 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49 mm |
| Pad mount thickness (E.1) | 73 mm |
| Plug Code | PL_2804 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 51 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Pacifica 3.6 | 01.2021-12.2025 | |
| CHRYSLER | Voyager 3.6 | 01.2021-12.2024 |
Reference Information
| 0126312185 | BOSCH |
| 68417025AA | CHRYSLER |
| UD102815A | AS-PL |
