Price:
NZ$ 809.70 including GST
NZ$ 704.09 excluding GST
or four payments of $202.43
with
Learn More
each

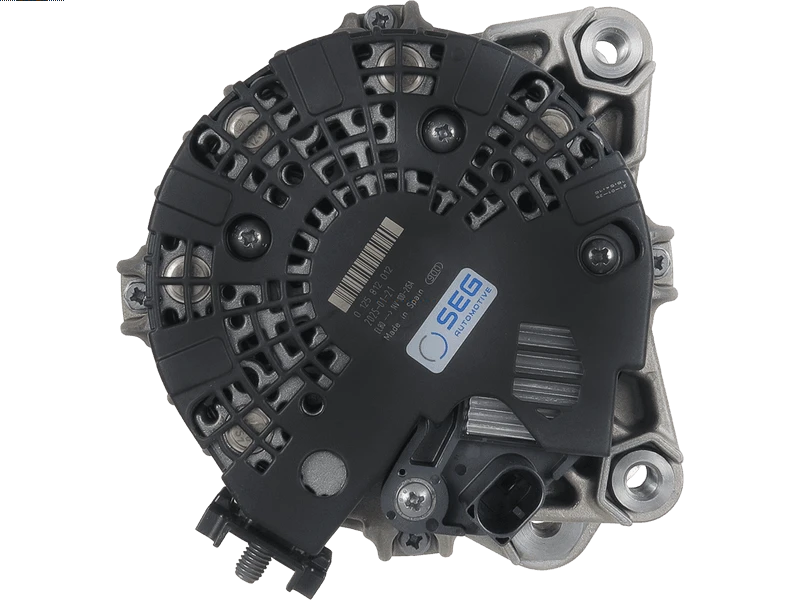

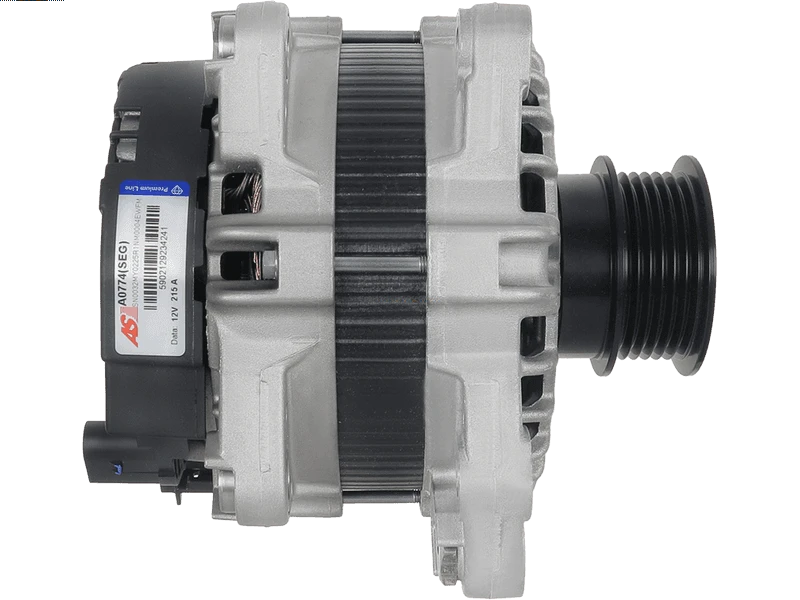

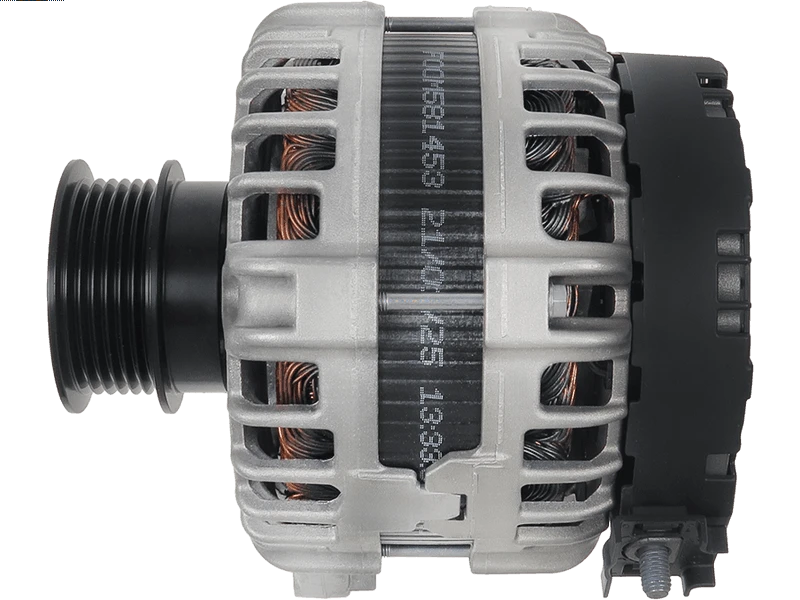

A0774(SEG)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 215 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 47.30 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 61 mm |
| Pulley to Mount Distance (A) | 56 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 T3 | [B4204T37] | 03.2015- |
| VOLVO | S80 2.0 D4 | [D4204T5] | 09.2013- |
| VOLVO | S80 2.0 T5 | [B4204T11] | 09.2013- |
| VOLVO | V40 2.0 D2 | [D4204T13] | 02.2015- |
| VOLVO | V40 2.0 D2 | [D4204T8] | 02.2015- |
| VOLVO | V40 2.0 D4 | [D4204T14] | 05.2014- |
| VOLVO | V40 2.0 T2 | [B4204T17] | 02.2015- |
| VOLVO | V40 2.0 T2 | [B4204T38] | 02.2015- |
| VOLVO | V40 2.0 T3 | [B4204T33] | 02.2015- |
| VOLVO | V40 2.0 T3 | [B4204T37] | 02.2015- |
| VOLVO | V40 2.0 T4 AWD | [B4204T21] | 05.2014- |
| VOLVO | V40 2.0 T5 | [B4204T11] | 05.2014- |
| VOLVO | V40 2.0 T5 AWD | [B4204T11] | 05.2014- |
| VOLVO | V60 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | V60 2.0 D2 | [D4204T8] | 03.2015- |
| VOLVO | V60 2.0 D3 | [D4204T4] | 03.2015- |
| VOLVO | V60 2.0 D3 | [D4204T9] | 03.2015- |
| VOLVO | V60 2.0 D4 | [D4204T5] | 10.2013-12.2015 |
| VOLVO | V60 2.0 D5 | [D4204T11] | 03.2015- |
| VOLVO | V60 2.0 T3 | [B4204T37] | 03.2015- |
| VOLVO | V60 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | V60 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | V60 2.0 T6 | [B4204T9] | 10.2013- |
| VOLVO | V70 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | V70 2.0 D3 | [D4204T9] | 03.2015- |
| VOLVO | V70 2.0 D4 | [D4204T5] | 10.2013- |
| VOLVO | V70 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | V70 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | XC60 2.0 D3 | [D4204T4] | 03.2015-04.2017 |
| VOLVO | XC60 2.0 D4 | [D4204T14] | 03.2015-02.2017 |
| VOLVO | XC60 2.0 D4 | [D4204T5] | 10.2013-12.2015 |
| VOLVO | XC60 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | XC60 2.0 T6 | [B4204T9] | 10.2013- |
| VOLVO | XC70 2.0 D4 | [D4204T5] | 10.2013- |
| VOLVO | XC70 2.0 T5 | [B4204T11] | 10.2013- |
Reference Information
| 0125812009 | BOSCH |
| 0125812009 | BOSCH |
| 0125812009RJ | RNL |
| 0125812009RJ | RNL |
| 0125812012 | BOSCH |
| 0125812012 | BOSCH |
| 0986083920 | BOSCH |
| 0986083920 | BOSCH |
| 0986083927 | BOSCH |
| 0986083927 | BOSCH |
| 10445129 | ALANKO |
| 10445129 | ALANKO |
| 115351 | FARCOM |
| 115351 | FARCOM |
| 116290 | CARGO |
| 116290 | CARGO |
| 12090907 | EUROTEC |
| 12090907 | EUROTEC |
| 12201405 | AES |
| 12201405 | AES |
| 1986A01056 | BOSCH |
| 1986A01056 | BOSCH |
| 20010589AV | ITAB AUTOMOTIVE |
| 20010589AV | ITAB AUTOMOTIVE |
| 20010589OV | ITAB AUTOMOTIVE |
| 20010589OV | ITAB AUTOMOTIVE |
| 20101985BN | REAL |
| 20101985BN | REAL |
| 20101985OE | REAL |
| 20101985OE | REAL |
| 2010589.0 | SANDO |
| 2010589.0 | SANDO |
| 2010589.1 | SANDO |
| 2010589.1 | SANDO |
| 209687A | ERA |
| 209687A | ERA |
| 21066N | WAI / TRANSPO |
| 21066N | WAI / TRANSPO |
| 21066-OS | WAI / TRANSPO |
| 21066-OS | WAI / TRANSPO |
| 2381652152 | DRI |
| 2381652152 | DRI |
| 28-6927 | ELSTOCK |
| 28-6927 | ELSTOCK |
| 30659580 | VOLVO |
| 30659580 | VOLVO |
| 32118814 | HERTH+BUSS |
| 32118814 | HERTH+BUSS |
| 36002812 | VOLVO |
| 36002812 | VOLVO |
| 360028120 | VOLVO |
| 360028120 | VOLVO |
| 36010604 | VOLVO |
| 36010604 | VOLVO |
| 4354 | CEVAM |
| 4354 | CEVAM |
| 444310 | VALEO |
| 444310 | VALEO |
| 4848006 | NK |
| 4848006 | NK |
| 50634517 | VOLVO |
| 50634517 | VOLVO |
| 5510575 | MEAT & DORIA |
| 5510575 | MEAT & DORIA |
| 5510575G | MEAT & DORIA |
| 5510575G | MEAT & DORIA |
| 554675RI | KUHNER |
| 554675RI | KUHNER |
| 554675RIB | KUHNER |
| 554675RIB | KUHNER |
| 57618 | EAI |
| 57618 | EAI |
| 815.543.215.010 | PSH |
| 815.543.215.010 | PSH |
| 815.543.215.014 | PSH |
| 815.543.215.014 | PSH |
| 815.543.215.280 | PSH |
| 815.543.215.280 | PSH |
| 8EL011713-771 | HELLA |
| 8EL011713-771 | HELLA |
| A12BH0442 | SIDAT |
| A12BH0442 | SIDAT |
| A12BH0442AS | SIDAT |
| A12BH0442AS | SIDAT |
| A-6708 | DIXIE |
| A-6708 | DIXIE |
| ABO589A | AUTOTEAM |
| ABO589A | AUTOTEAM |
| AL03389 | TMI |
| AL03389 | TMI |
| ALB2199 | KUHNER |
| ALB2199 | KUHNER |
| ALT10889 | WOODAUTO |
| ALT10889 | WOODAUTO |
| ALT125890 | SIOM |
| ALT125890 | SIOM |
| ALT125890A | SIOM |
| ALT125890A | SIOM |
| ALT1739 | ELECTROLOG |
| ALT1739 | ELECTROLOG |
| ALTE831 | 3EFFE |
| ALTE831 | 3EFFE |
| BOS0125812012 | WOODAUTO |
| BOS0125812012 | WOODAUTO |
| CAL10589AS | CASCO |
| CAL10589AS | CASCO |
| CAL10589GS | CASCO |
| CAL10589GS | CASCO |
| CGB-86927 | AINDE |
| CGB-86927 | AINDE |
| DA2469 | DELCO |
| DA2469 | DELCO |
| DRA1359 | DELCO |
| DRA1359 | DELCO |
| F032116290 | BOSCH |
| F032116290 | BOSCH |
| G100901 | BTS TURBO |
| G100901 | BTS TURBO |
| G101185 | BTS TURBO |
| G101185 | BTS TURBO |
| G106600 | BTS TURBO |
| G106600 | BTS TURBO |
| H5510575G | HOFFER |
| H5510575G | HOFFER |
| LRA03817 | LUCAS |
| LRA03817 | LUCAS |
| LRA3817 | LUCAS |
| LRA3817 | LUCAS |
| PRAE831 | 3EFFE |
| PRAE831 | 3EFFE |
| RNL812009 | RNL |
| RNL812009 | RNL |
| SEG0125812009 | WOODAUTO |
| SEG0125812009 | WOODAUTO |
| UD05023(SEG)A | AS-PL |
| UD05023(SEG)A | AS-PL |
| WOOALT10889 | WOODAUTO |
| WOOALT10889 | WOODAUTO |
