Price:
NZ$ 525.76 including GST
NZ$ 457.18 excluding GST
or four payments of $131.44
with
Learn More
each

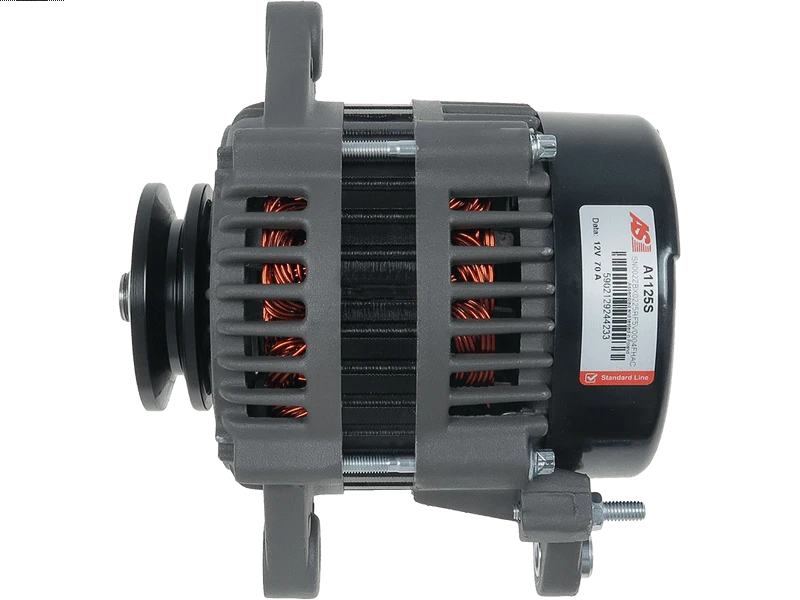

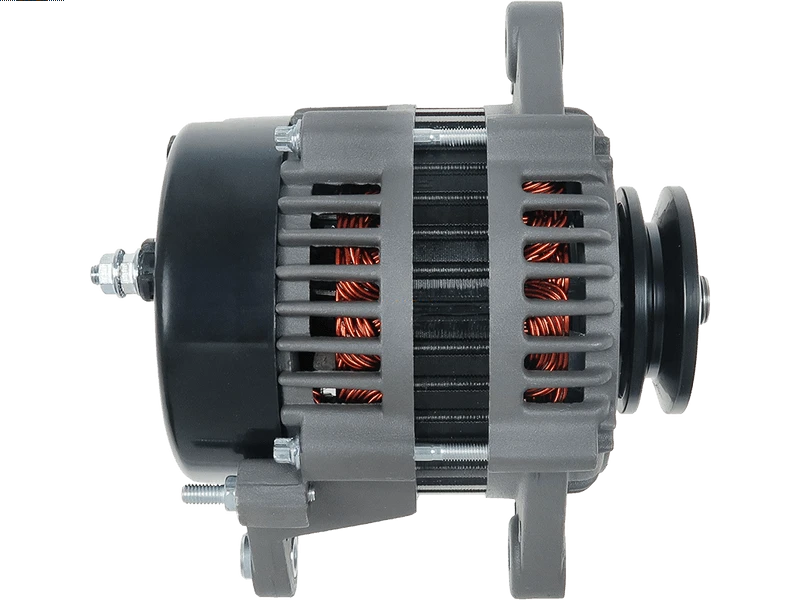

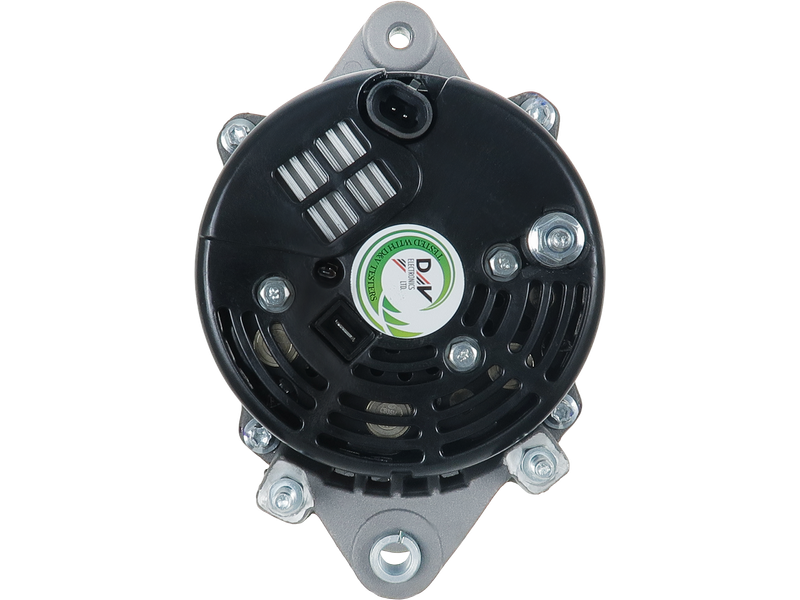

A1125S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 175 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| Plug Code | PL_2602 |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9 mm |
| Pulley Outside Diameter (O.D.1) | 47 mm |
| Pulley Outside Diameter (O.D.2) | 69 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCRUISER | 900SC 9.0 GM | [542ci-8cyl] | 01.1999-12.2002 |
| MERCRUISER | Engine 3.0 | [181ci-4cyl] | 01.1999-12.2006 |
Reference Information
| 114172 | CARGO |
| 1-2483-01DR | WAI / TRANSPO |
| 16201243 | AES |
| 19020600 | DELCO |
| 19020604 | DELCO |
| 20110 | API |
| 219233 | DELCO |
| 70018465 | WILSON |
| 8465N | WAI / TRANSPO |
| 862030 | MERCURY |
| 8620301 | MERCURY |
| 862030T | MERCURY |
| 862030T01 | MERCURY |
| 975.502.070.030 | PSH |
| 975.502.070.390 | PSH |
| A12DR1120A2 | SIDAT |
| A1663 | DIXIE |
| ALD0041 | KRAUF |
| ALT40127 | WOODAUTO |
| F032114172 | BOSCH |
| G102094 | BTS TURBO |
| UD102421A | AS-PL |
| WOOALT40127 | WOODAUTO |
