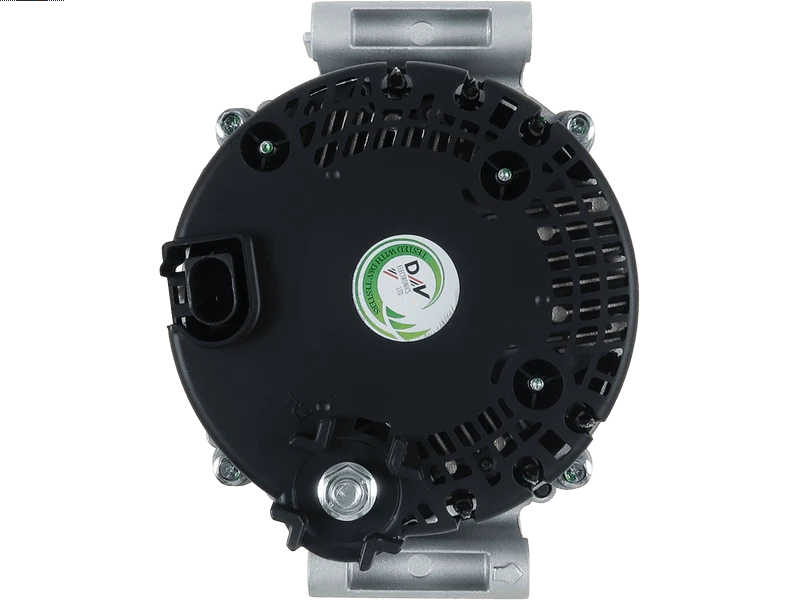

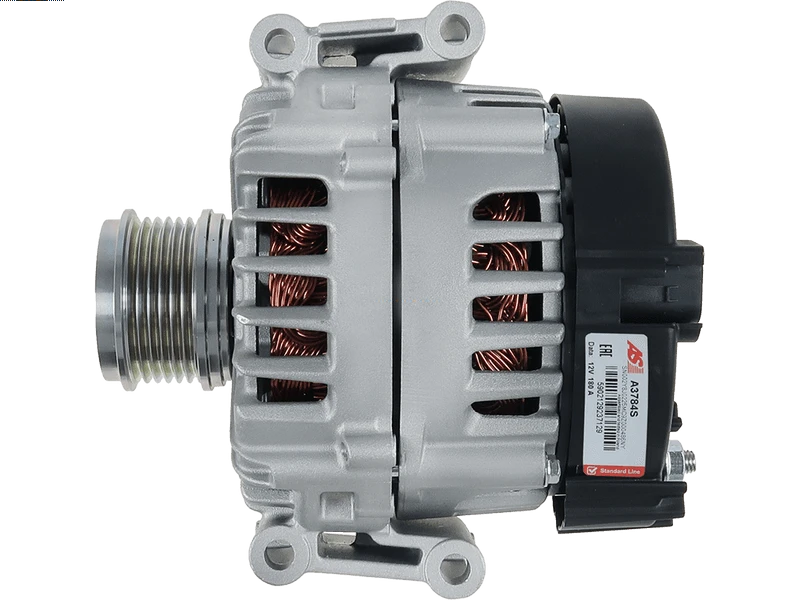

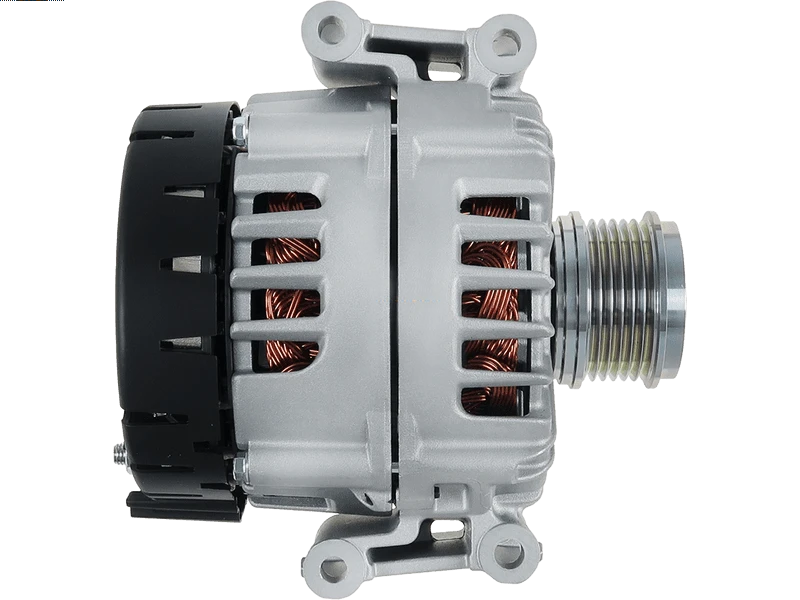

A3784S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS GROUP NZ
SKU: A3784S
Price: 951.38 NZD
Availability: BackOrder

Price:

NZ$ 951.38 including GST

NZ$ 827.29 excluding GST

or four payments of $237.85 with
Learn More

UOM:

each

Product Code:

A3784S

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information

Amp	180 A
Diameter (D.1)	9.50 mm
Diameter (D.2)	9.50 mm
Diameter (D.3)	9.50 mm
Diameter (D.4)	9.50 mm
Length (L.1)	195 mm
Mount Inside Length or Pad Mount C-C (C)	56 mm
Pad mount thickness (E.1)	70 mm
Pad mount thickness (E.2)	70 mm
Plug Code	PL_2306
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	56 mm
Pulley to Mount Distance (A)	30 mm
Pulley Type	Clutch
Voltage	12 V

Make	Model	Type	Year
AUDI	A4 2.0 35 TFSi Mild Hybrid	[CVKC]	12.2018-
AUDI	A4 2.0 35 TFSi Mild Hybrid	[DLVB]	12.2018-
AUDI	A4 2.0 35 TFSi Mild Hybrid	[DMSB]	12.2018-
AUDI	A4 2.0 40 TFSi G-Tron	[CVLA]	11.2016-
AUDI	A4 2.0 40 TFSi G-Tron	[DRXA]	11.2016-
AUDI	A4 2.0 TFSi	[CVKB]	05.2015-
AUDI	A4 2.0 TFSi	[CVKB]	08.2015-
AUDI	A4 2.0 TFSi	[CYMC]	05.2015-11.2019
AUDI	A4 2.0 TFSi	[CYMC]	05.2016-10.2019
AUDI	A4 2.0 TFSi	[CYRB]	05.2015-11.2019
AUDI	A4 2.0 TFSi	[CYRB]	05.2016-10.2019
AUDI	A4 2.0 TFSi	[CYRC]	05.2016-10.2019
AUDI	A4 2.0 TFSi	[CYRC]	11.2015-11.2019
AUDI	A4 2.0 TFSi	[DBPA]	05.2015-
AUDI	A4 2.0 TFSi	[DBPA]	08.2015-
AUDI	A4 2.0 TFSi	[DKYA]	08.2015-
AUDI	A4 2.0 TFSi G-Tron	[CVLA]	11.2016-10.2019
AUDI	A4 2.0 TFSi Quattro	[CYMC]	05.2015-
AUDI	A4 2.0 TFSi Quattro	[CYMC]	08.2015-10.2019
AUDI	A4 2.0 TFSi Quattro	[CYRB]	05.2015-
AUDI	A4 2.0 TFSi Quattro	[CYRB]	08.2015-10.2019
AUDI	A4 2.0 TFSi Quattro	[CYRC]	11.2015-10.2019
AUDI	A4 2.0 TFSi Quattro	[CYRC]	11.2015-11.2019
AUDI	A4 Allroad 2.0 TFSi Quattro	[CYMC]	01.2016-
AUDI	A4 Allroad 2.0 TFSi Quattro	[CYRB]	01.2016-
AUDI	A4 Allroad 2.0 TFSi Quattro	[CYRC]	05.2016-10.2019
AUDI	A4 Allroad 2.0 TFSi Quattro	[DLHB]	01.2016-
AUDI	A5 2.0 35 TFSi	[CVKC]	03.2020-
AUDI	A5 2.0 35 TFSi	[DEMB]	03.2020-
AUDI	A5 2.0 40 TFSi G-Tron	[CVLA]	02.2017-
AUDI	A5 2.0 40 TFSi G-Tron Sportback	[DRXA]	02.2017-
AUDI	A5 2.0 TFSi	[CVKB]	03.2017-12.2019
AUDI	A5 2.0 TFSi	[CVKB]	09.2016-
AUDI	A5 2.0 TFSi	[CYRB]	03.2017-12.2019
AUDI	A5 2.0 TFSi	[CYRB]	11.2016-02.2020
AUDI	A5 2.0 TFSi	[DKYA]	03.2017-12.2019
AUDI	A5 2.0 TFSi	[DKYA]	09.2016-
AUDI	A5 2.0 TFSi G-Tron	[CVLA]	02.2017-02.2020
AUDI	A5 2.0 TFSi Mild Hybrid Quattro	[DDWA]	05.2017-
AUDI	A5 2.0 TFSi Mild Hybrid Quattro	[DDWA]	05.2017-02.2020
AUDI	A5 2.0 TFSi Mild Hybrid Quattro	[DLHB]	05.2017-
AUDI	A5 2.0 TFSi Mild Hybrid Quattro	[DLHB]	05.2017-02.2020
AUDI	A5 2.0 TFSi Quattro	[CYMC]	06.2016-
AUDI	A5 2.0 TFSi Quattro	[CYMC]	09.2016-
AUDI	A5 2.0 TFSi Quattro	[CYMC]	11.2016-
AUDI	A5 2.0 TFSi Quattro	[CYRB]	06.2016-
AUDI	A5 2.0 TFSi Quattro	[CYRB]	09.2016-
AUDI	A5 2.0 TFSi Quattro	[CYRB]	11.2016-
AUDI	A5 2.0 TFSi Quattro	[CYRC]	06.2016-02.2020
AUDI	A5 2.0 TFSi Quattro	[CYRC]	09.2016-02.2020
AUDI	A5 2.0 TFSi Quattro	[DLHB]	06.2016-
AUDI	A5 2.0 TFSi Quattro	[DLHB]	09.2016-
AUDI	A5 2.0 TFSi Quattro	[DLHB]	11.2016-
AUDI	A5 2.0 TFSi Sportback	[CVKB]	01.2017-
AUDI	A5 2.0 TFSi Sportback	[CYRB]	11.2016-02.2020
AUDI	A5 2.0 TFSi Sportback	[DKYA]	01.2017-
AUDI	A6 1.8 TFSi	[CYGA]	09.2014-09.2018
AUDI	A6 2.0 TFSi	[CYNB]	09.2014-09.2018
AUDI	A6 2.0 TFSi	[CYPA]	09.2014-09.2018
AUDI	A6 2.0 TFSi Quattro	[CYNB]	05.2014-09.2018
AUDI	A6 2.0 TFSi Quattro	[CYPA]	05.2014-09.2018
AUDI	A6 2.0 TFSi Quattro	[CYPA]	05.2015-09.2018
AUDI	A6 2.0 TFSi Quattro	[CYPB]	05.2015-09.2018
AUDI	A7 2.0 TFSi Quattro Sportback	[CYNB]	05.2015-05.2018
AUDI	A7 2.0 TFSi Quattro Sportback	[CYPA]	05.2015-05.2018
AUDI	A7 2.0 TFSi Quattro Sportback	[CYPB]	05.2015-05.2018
AUDI	A7 2.0 TFSi Sportback	[CYPA]	09.2014-05.2018
AUDI	A8 2.0 TFSi Quattro	[CYPA]	09.2016-01.2018
AUDI	Q7 2.0 TFSi Quattro	[CYMC]	08.2015-
AUDI	Q7 2.0 TFSi Quattro	[CYRB]	08.2015-
AUDI	Q7 2.0 TFSi Quattro	[DMFB]	08.2015-
VW	Touareg 2.0 TFSi 4motion	[CYRC]	05.2018-11.2023

06L903024A	VW
06L903024AX	VW
06L903024F	VW
06L903024FX	VW
12090967	EUROTEC
20015069OV	ITAB AUTOMOTIVE
2015069.1	SANDO
20179960OE	REAL
205.577.180.000	PSH
205.577.180.500	PSH
21083N	WAI / TRANSPO
2115531802	DRI
2619992C	VALEO
2715187A	VALEO
28-7817	ELSTOCK
3115040	HENKEL PARTS
40144	CEVAM
439949	VALEO
440700	VALEO
554701RIV	KUHNER
57906	EAI
906ST75	STARTCAR
AC-CBA6183	ACAUTO
AEG1559	AUTOELECTRO
AL03739	TMI
ALT170690	SIOM
ALV9949	KRAUF
ANM98843	ANDEL
AU8097	SNRA
AVA069	AUTOTEAM
CAL15069GS	CASCO
EG18S011	VALEO
EG18S025	VALEO
G103831	BTS TURBO
IR5091	PROTECH
LRA04208	LUCAS
LRA4208	LUCAS
UD102385A	AS-PL
VAL439949	WOODAUTO
