Price:
NZ$ 924.52 including GST
NZ$ 803.93 excluding GST
or four payments of $231.13
with
Learn More
each

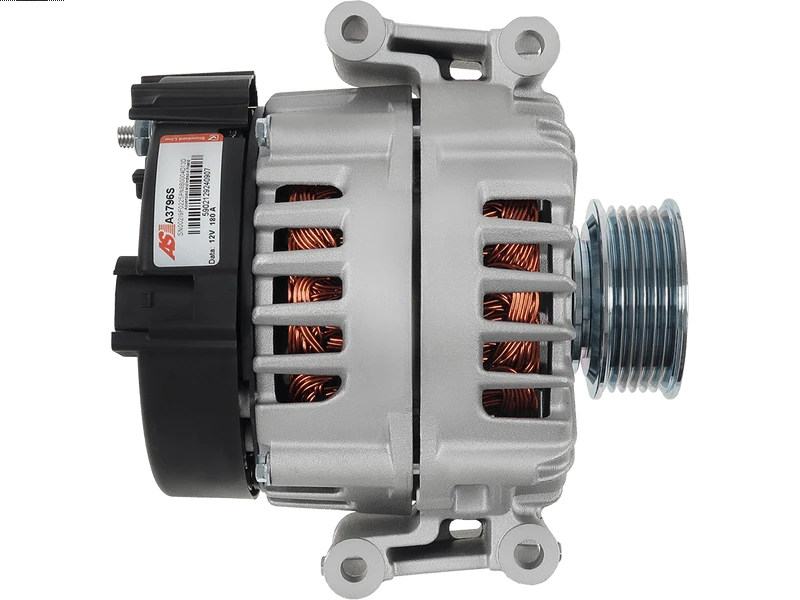

A3796S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 180 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 64.50 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 C7 3.0 TFSi Allroad Quattro | [CREC] | 09.2014-09.2018 |
| AUDI | A6 C7 3.0 TFSi Quattro | [CREC] | 09.2014-09.2018 |
| AUDI | A7 3.0 TFSi Quattro Sportback | [CREC] | 05.2014-05.2018 |
Reference Information
| 06E903024H | VW |
| 06E903024HX | VW |
| 06E903024M | VW |
| 06E903024MX | VW |
| 12090934 | EUROTEC |
| 20015060OV | ITAB AUTOMOTIVE |
| 2015060.1 | SANDO |
| 20179060OE | REAL |
| 2115621802 | DRI |
| 21961N | WAI / TRANSPO |
| 2620983A | VALEO |
| 2715189A | VALEO |
| 28-7890 | ELSTOCK |
| 305.990.180.000 | PSH |
| 305.990.180.500 | PSH |
| 40145 | CEVAM |
| 439951 | VALEO |
| 440708 | VALEO |
| 554696RIV | KUHNER |
| 57911 | EAI |
| 6E903024H | VW |
| 6E903024HX | VW |
| 6E903024M | VW |
| 6E903024MX | VW |
| 715189 | VALEO |
| 89216500 | POWERMAX |
| 911ST75 | STARTCAR |
| A147.985 | PSH |
| AL04149 | TMI |
| ALT00991 | ELECTROLOG |
| ALT170600 | SIOM |
| ALTJ235 | 3EFFE |
| ALV9951 | KRAUF |
| ANM100060 | ANDEL |
| AU8101 | SNRA |
| AVA060 | AUTOTEAM |
| CAL15060GS | CASCO |
| EG18S016 | VALEO |
| EG18S027 | VALEO |
| G103832 | BTS TURBO |
| LRA04281 | LUCAS |
| LRA4281 | LUCAS |
| UD101071A | AS-PL |
| VAL439951 | WOODAUTO |
| WG2471726 | WILMINK GROUP |
