Price:
NZ$ 769.40 including GST
NZ$ 669.04 excluding GST
or four payments of $192.35
with
Learn More
each
A3806S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

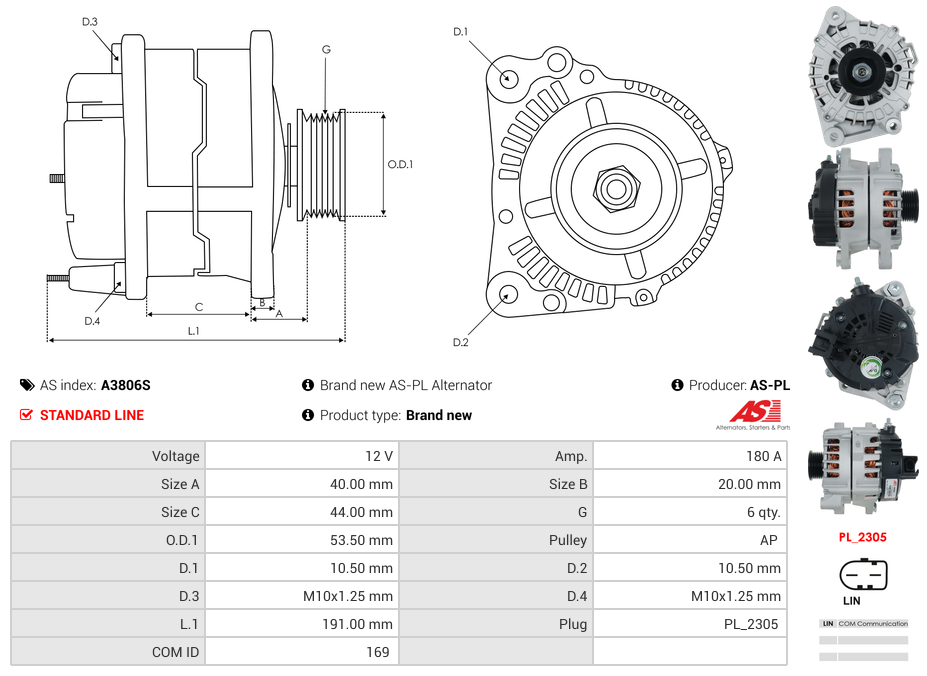

Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 44 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53.50 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KIA | Cadenza 3.3 | 01.2017-12.2020 | |
| KIA | Sedona 3.3 | 01.2019-12.2021 | |
| KIA | Sorento 3.3 | 01.2019-12.2020 |
Reference Information
| 21366 | LESTER |
| 21366N | WAI / TRANSPO |
| 255.562.180.000 | PSH |
| 2625544 | VALEO |
| 37300-3L050 | HYUNDAI / KIA |
| 90-22-5762 | WILSON |
| A3806S | AS-PL |
| A-9661 | DIXIE |
| ALV4385 | KRAUF |
| UD103167A | AS-PL |
